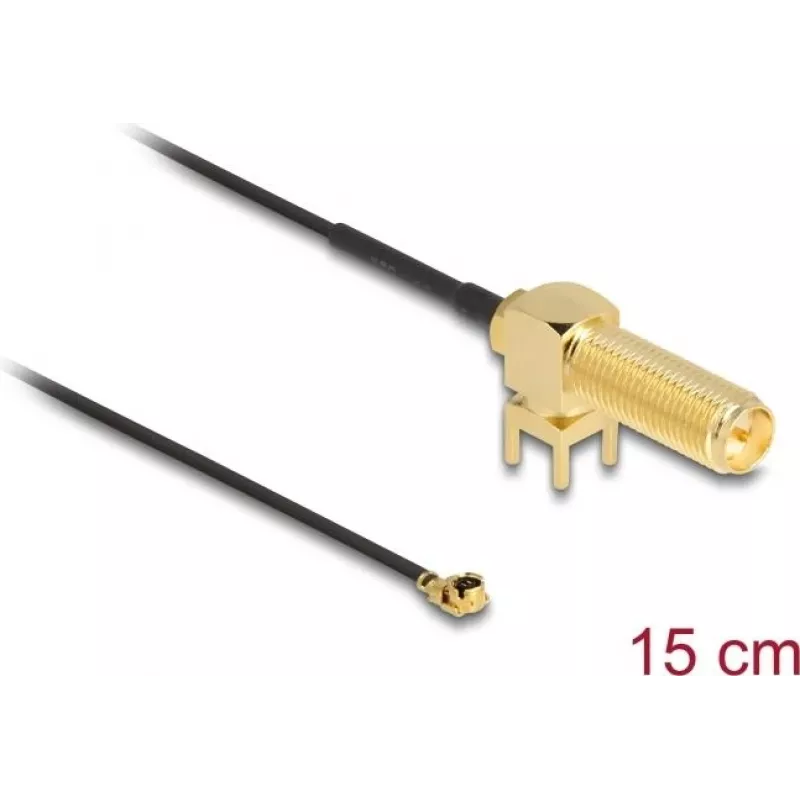

Cabo coaxial DeLOCK 12039 0,15 m RP-SMA I-PEX MHF1 preto

The DeLOCK 12039 coaxial cable is a 0.15 m lead with an RP-SMA plug and an I-PEX MHF1 connector. It is designed to connect radio frequency components and antennas in electronic systems, providing a compact connection between devices with RP-SMA and I-PEX MHF1 interfaces.

Advantages

This coaxial cable combines a standard RP-SMA interface with an I-PEX MHF1 micro-connector, enabling connections between external antennas and small RF modules. Its short 0.15 m length reduces signal loss and clutter inside devices or enclosures, while the black jacket provides discreet routing in installations.

Suitable for

• Connecting external RP-SMA antennas to miniaturized RF modules with I-PEX MHF1
• Use inside routers, wireless modules, or IoT devices where a short jumper is required
• Replacement or extension cable for antenna connections in compact electronic assemblies

Key specifications

• Length: 0.15 m
• Connector A: RP-SMA (plug)
• Connector B: I-PEX MHF1
• Color: Black
• Brand: DELOCK
• MPN: 12039
• EAN: 4043619120390

How to use

Identify the RP-SMA and I-PEX MHF1 ports on the devices to be connected. Carefully align and attach the RP-SMA plug to the mating RP-SMA socket, ensuring the reverse-polarity orientation is respected. Insert the I-PEX MHF1 connector into the corresponding header on the RF module or board, taking care not to bend the micro-connector pins. Secure connections before powering the system.

Recommendations

Avoid sharp bends and excessive pulling on the cable to prevent damage to the I-PEX MHF1 connector. Use the 0.15 m length for short internal connections; for external antenna placements at a distance, choose a longer, appropriately rated coaxial cable.
