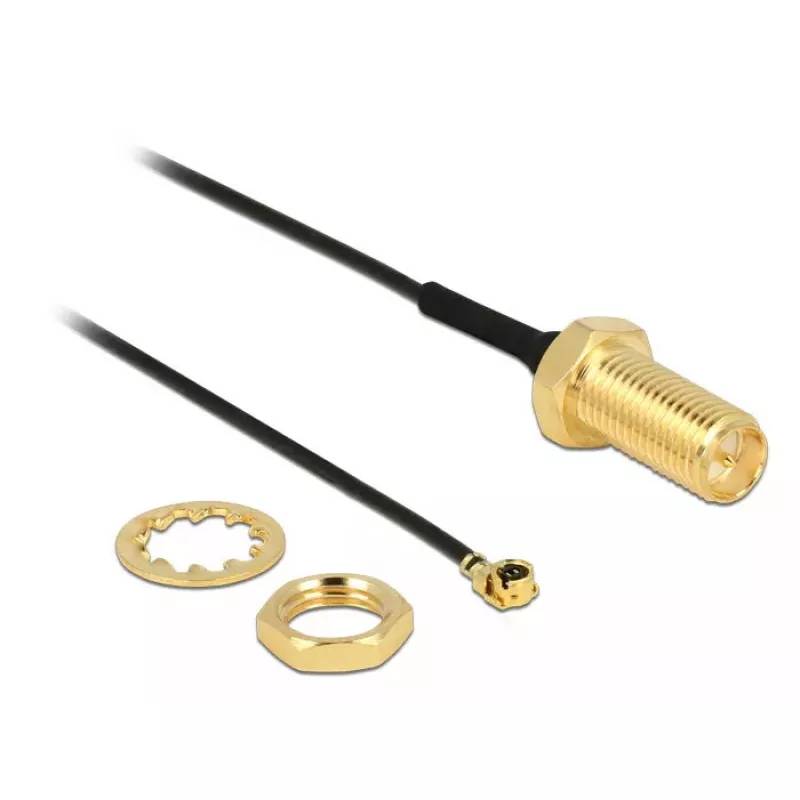

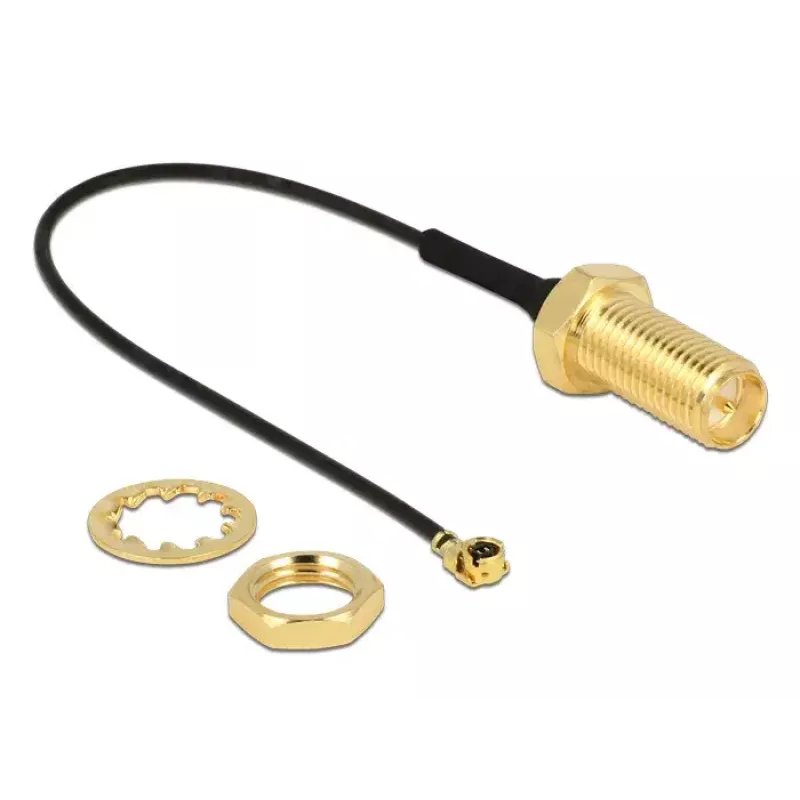

Cabo coaxial DeLOCK 89471 0,1m RP-SMA MHF/U.FL-LP-068

The DeLOCK 89471 coaxial cable is a 0.1 m internal antenna cable with RP-SMA and MHF/U.FL-LP-068 connectors designed for supplying an antenna signal inside electronic devices. Packaged in a polybag and sold individually, this compact cable is intended for connections in confined spaces where a short, reliable coaxial link is required.

Advantages

The cable combines an RP-SMA connector with an MHF/U.FL-LP-068 interface to allow connection between board-mounted RF modules and external antenna ports. At 0.1 m length it minimizes excess cable inside the device and helps maintain signal integrity. Its construction is suitable for tight installations and offers straightforward plug-and-play connection without additional adapters when matching connector types are used.

Suitable for

Key specifications

How to use

Identify the RP-SMA and MHF/U.FL-LP-068 connector ends and align them with the corresponding ports on the device and module. Gently press the MHF/U.FL-LP-068 connector into the board-mounted socket until it clicks, then screw the RP-SMA connector onto the mating RP-SMA port. Avoid applying excessive force to the miniature connector to prevent damage to the board socket.

Recommendations

Use this 0.1 m coaxial cable for short, internal antenna connections only. Verify connector compatibility before installation and avoid repeated unplugging of the MHF/U.FL-LP-068 connector to preserve the integrity of the board-mounted socket.
