Cabo coaxial DeLOCK 89671 RG-316 0,15 m FAKRA Z SMB

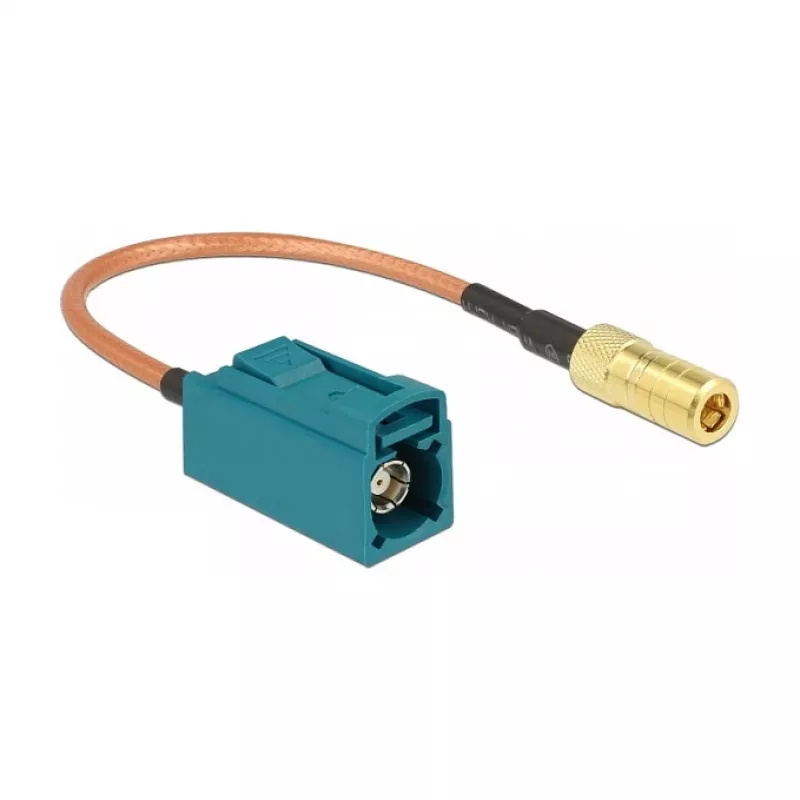

The DeLOCK 89671 coaxial cable is a 0.15 m antenna cable with FAKRA Z and SMB connectors, designed for reliable signal transmission in automotive and communication systems. Constructed with RG-316 coaxial cable, it offers flexibility and durability for compact installations. The cable is supplied as a single unit in a polybag and is intended for connecting components of radio frequency technology.

Advantages

The RG-316 construction provides a balance of flexibility and mechanical strength while maintaining consistent impedance for RF applications. The FAKRA Z to SMB connector combination enables connection between automotive-grade FAKRA interfaces and SMB devices or modules. Its short 0.15 m length reduces signal loss in close-proximity connections and simplifies cable routing in confined spaces.

Suitable for

Key specifications

How to use

Identify the FAKRA Z and SMB ports on the devices to be connected. Align and securely mate the FAKRA Z connector to the corresponding FAKRA receptacle and attach the SMB connector to the SMB jack by pushing until it seats. Route the 0.15 m cable to avoid sharp bends and mechanical strain. Ensure connections are tight and verify signal continuity before final assembly.

Recommendations

For best performance, use this short RG-316 jumper where minimal length is required to limit attenuation. Avoid excessive bending or kinking of the cable and protect connectors from contaminants. Confirm compatibility of RF impedance and connector types with your devices prior to installation.
