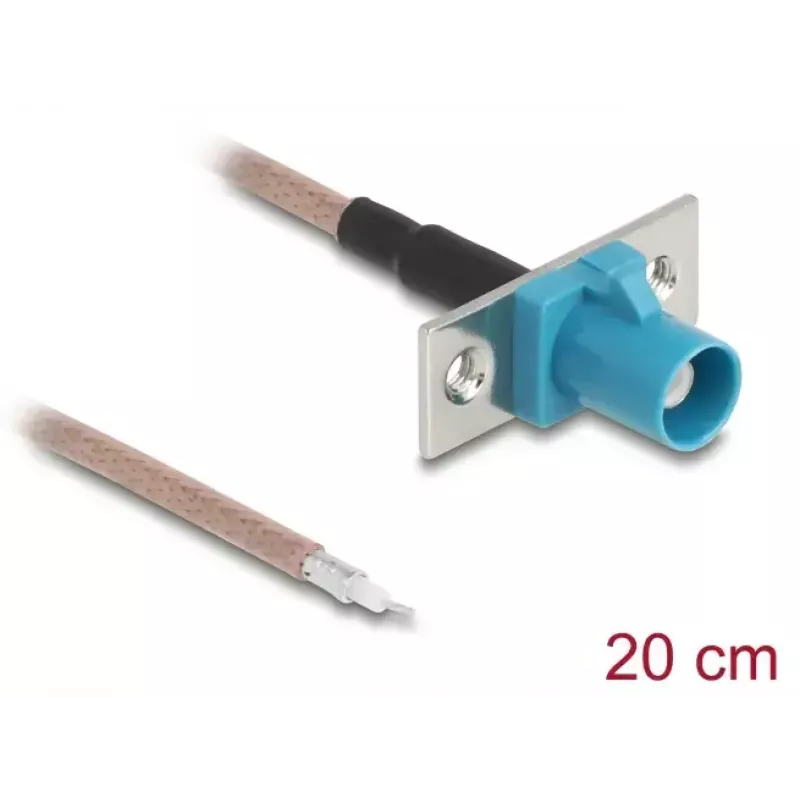

Cabo coaxial DELOCK 90726 RG-316/U 0,2 m com ficha FAKRA Z

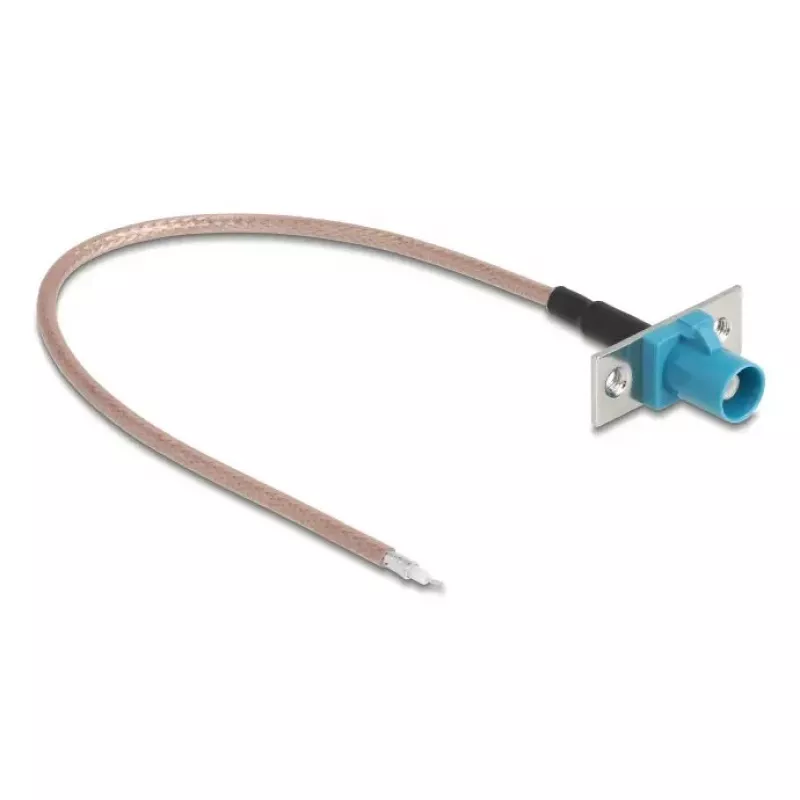

DELOCK 90726 is a 0.2 m coaxial cable of type RG-316/U equipped with a FAKRA Z connector. This short, flexible RF cable is intended for signal transmission in automotive, telematics and RF test applications where a compact interconnect is required. The cable assembly is supplied as a single unit in a polybag and is manufactured to provide a stable 50 Ω impedance for matching standard RF equipment.

Advantages

The compact 0.2 m length and RG-316/U construction deliver flexibility and a small bend radius, making routing in confined spaces easier. The FAKRA Z male straight connector ensures a standardized mechanical interface for automotive and telematics devices. The cable is designed to maintain consistent 50 Ω characteristic impedance for reliable signal integrity in high-frequency applications.

Suitable for

Key specifications

How to use

Connect the FAKRA Z male straight connector to the matching FAKRA Z female jack on the device or harness until the connector seats fully. Route the 0.2 m RG-316/U cable without sharp kinks and avoid excessive bending at the connector junctions to preserve impedance and minimize signal loss. Use the cable for short interconnects between antenna elements, telematics modules or test equipment.

Recommendations

For optimal performance, avoid subjecting the cable to repeated sharp flexing and keep it clear of high-temperature sources. Verify compatibility of the FAKRA Z coding with the mating connector on the vehicle or device before installation. For RF test setups, keep cable runs as short as practical and use 50 Ω equipment to maintain impedance matching.
