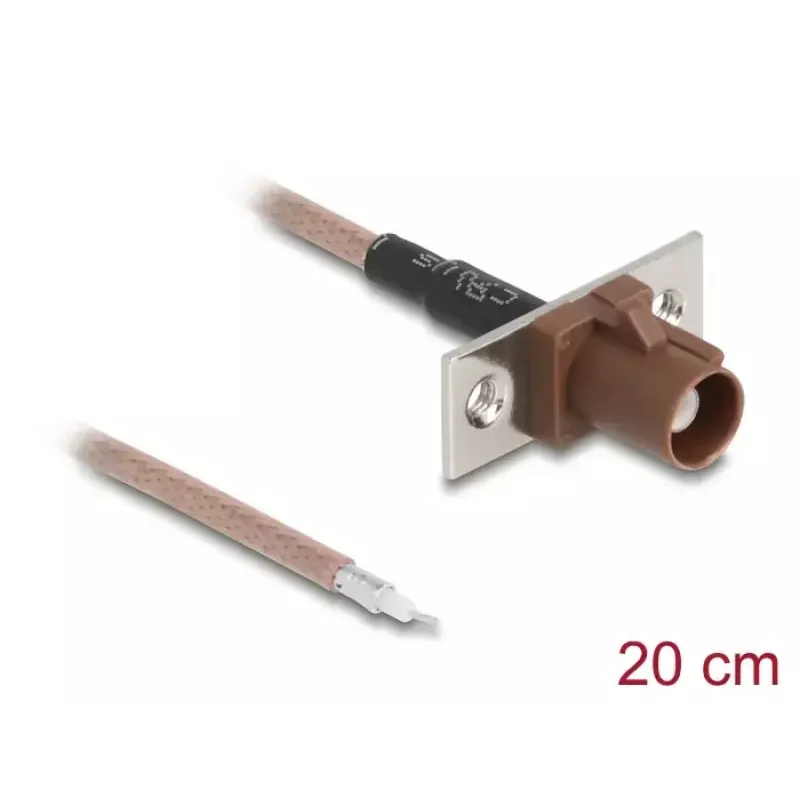

Cabo coaxial DELOCK 90733 RG-316/U 0,2 m com ficha FAKRA-F

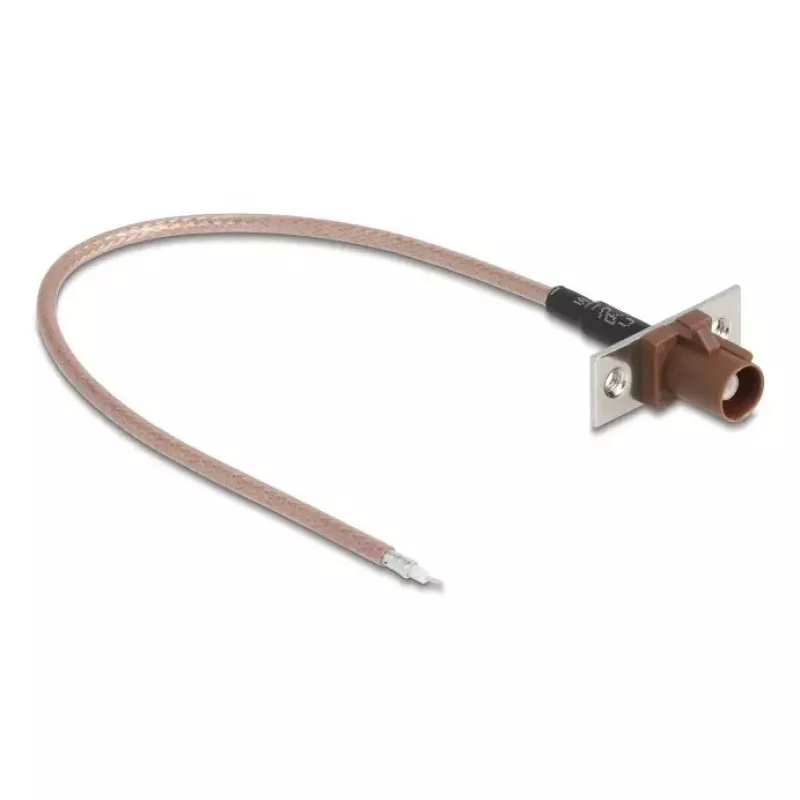

DELOCK 90733 is a 0.2 m coaxial cable with RG-316/U construction fitted with a FAKRA F male straight connector. The cable has a compact connector assembly and is intended for RF signal transmission and short interconnects where a small, shielded coaxial lead is required. The assembly is supplied as a single piece in a polybag and is compatible with components used in automotive and telecommunications systems as well as laboratory and test setups.

Advantages

The RG-316/U construction ensures consistent characteristic impedance and shielding appropriate for 50 Ω RF applications. The short 0.2 m length minimizes signal loss in close-proximity connections while offering a flexible and heat-resistant dielectric. The FAKRA F connector provides a standardized automotive-style interface for reliable mating and mechanical retention, and the compact connector dimensions allow installation in confined spaces.

Suitable for

Key specifications

How to use

Align the FAKRA F connector with the matching female FAKRA socket and push until the connector latching engages. Ensure the mating interface is clean and free of debris to maintain signal integrity. Use the cable for short-distance RF links; avoid excessive bending near the connector to prevent mechanical stress. If installing in an automotive or permanently mounted application, secure the cable to prevent movement or chafing and route it away from high-voltage wiring to reduce potential interference.

Recommendations

For best performance, use this 0.2 m RG-316/U coaxial lead in applications where minimal insertion loss and compact routing are required. Maintain the specified 50 Ω system impedance throughout the signal path and avoid sharp bends with radii smaller than the cable manufacturer's recommended minimum to preserve shielding and characteristic impedance.
