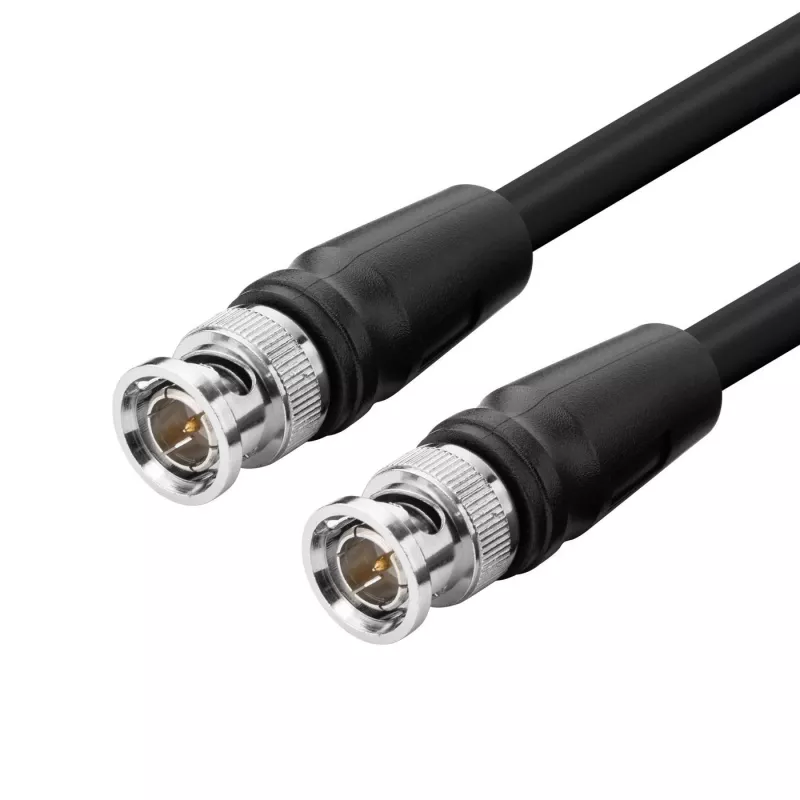

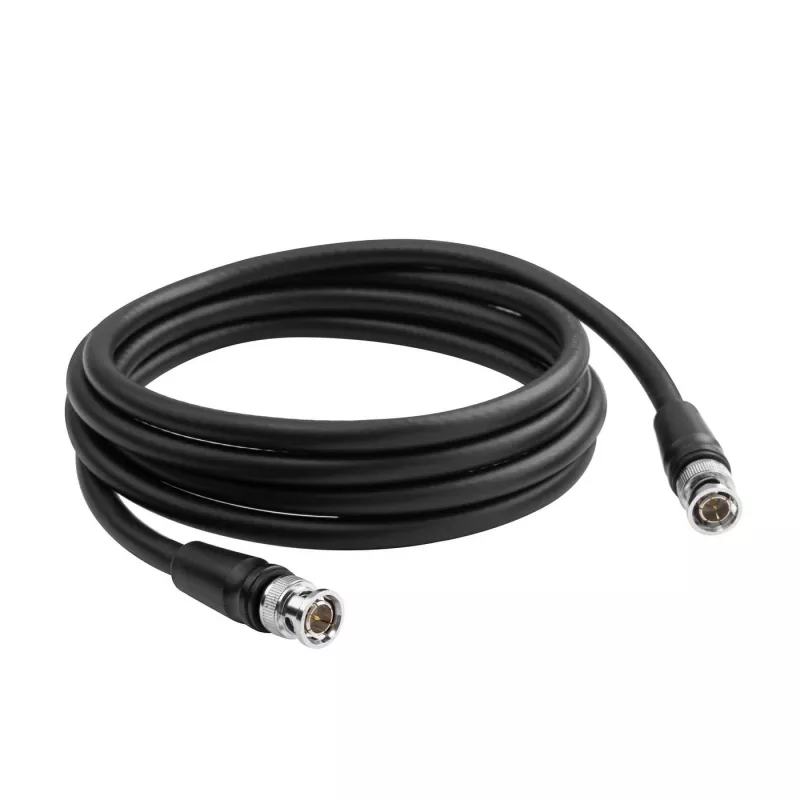

Cabo coaxial Microconnect BNC-HDSDI-1M RG-6 preto

The MicroConnect BNC-HDSDI-1M is a 1-meter RG-6 coaxial cable with BNC connectors on both ends, designed for professional SDI signal transmission. It supports 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI standards and is suitable for transmitting 4K at 60 Hz (up to 4096x2160) as well as Full HD 1080p. The cable has a characteristic impedance of 75 ohm and is made to meet CE, REACH and RoHS requirements. Manufactured in Denmark and backed by a 25-year warranty, it is a lightweight (40 g) black cable intended for reliable audio and video connections.

Advantages

This RG-6 coaxial cable with BNC connectors provides compatible support for multiple SDI formats including 12G-SDI for high-bandwidth 4K60 workflows and backward compatibility with 6G, 3G and HD-SDI. Compliance with CE, REACH and RoHS standards ensures regulatory and environmental conformity. The 1 m length and 40 g weight make the cable easy to route and handle in studio and field setups, while the 25-year warranty offers long-term coverage.

Suitable for

• Connecting professional cameras, monitors and switchers using SDI.
• 4K60 (4096x2160) video transmission over SDI-capable equipment.
• Full HD 1080p signal connections in broadcast and AV installations.
• Short cable runs in studios, OB vans and post-production suites.

Key specifications

• Cable type: RG-6
• Cable length: 1 m
• Connectors: BNC to BNC
• Supported standards: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI
• Maximum supported resolution/refresh: 4K60 (up to 4096x2160) and Full HD 1080p
• Impedance: 75 ohm
• Colour: Black
• Weight: 0.04 kg
• Certifications: CE, REACH, RoHS
• Warranty: 25 years
• Made in: Denmark

How to use

Connect one BNC connector to the SDI output of your source device (camera, player or switcher) and the other BNC connector to the SDI input of the receiving device (monitor, recorder or switch). Ensure connectors are fully seated and, if applicable, secure any locking mechanisms. Use the 1 m length for short runs to minimize signal loss; avoid sharp bends and kinks to preserve cable integrity.

Recommendations

For optimal performance in 4K60 (12G-SDI) applications keep cable runs short and avoid repeated flexing at the connector ends. Verify compatibility of all connected equipment for 12G-SDI operation and use BNC connections rated for professional broadcast use.
