Cabo coaxial Televes T-100plus 1m PVC classe Eca 75 Ohm

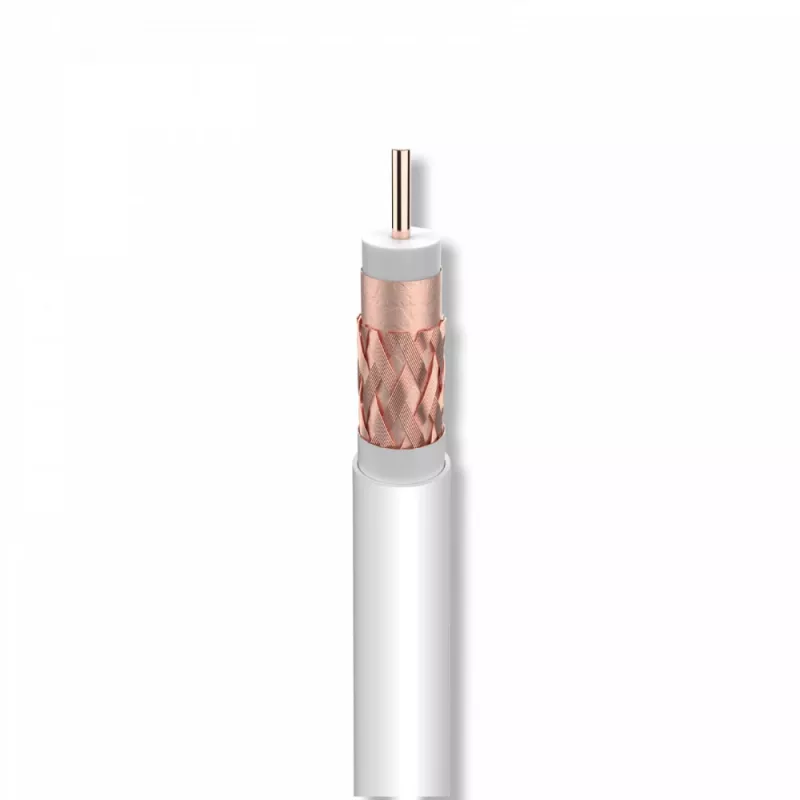

With a solid copper inner conductor and double shielding achieving over 77% braid coverage, this Televes T-100plus coaxial cable delivers exceptional signal integrity for TV and satellite installations. Its Class A shielding and Eca fire rating ensure compliance with strict European standards, while the 1-meter length is perfect for short, tidy connections.

Overview

The Televes T-100plus is a professional-grade coaxial cable designed for terrestrial TV (DVB-T), satellite TV (DVB-S/S2), CATV, and DAB/FM applications. It features a 75 Ohm impedance, foamed polyethylene dielectric, and a durable PVC jacket. The cable's low attenuation and high return loss guarantee minimal signal degradation across a wide frequency range up to 2150 MHz.

What stands out

• Solid copper inner conductor (1.13 mm) for superior conductivity and long-term reliability.
• Double shielding with aluminium foil and tinned copper braid (>77% coverage) for excellent noise rejection.
• Class A shielding effectiveness per EN 50117-2-4, ideal for high-interference environments.
• Eca fire classification (EN 50575) for safe use in residential and commercial buildings.
• Low attenuation: only 9.0 dB/100m at 200 MHz, 17.5 dB/100m at 862 MHz, and 28.0 dB/100m at 2150 MHz.
• High return loss (>23 dB below 30 MHz, >20 dB up to 3000 MHz) ensures minimal signal reflections.
• Velocity of propagation 85% for accurate signal timing.
• Wide operating temperature range from -5°C to +70°C.
• Compact 1-meter length, perfect for patch cables and short runs.

Technical details

• Impedance: 75 Ohm
• Inner conductor: solid copper, 1.13 mm diameter
• Dielectric: foamed polyethylene (PE)
• Outer jacket: PVC, 6.9 mm outer diameter
• Shielding: aluminium foil + tinned copper braid, >77% coverage, Class A
• Fire rating: Eca (EN 50575)
• Attenuation: 9.0 dB/100m @ 200 MHz, 17.5 dB/100m @ 862 MHz, 28.0 dB/100m @ 2150 MHz
• Return loss: >23 dB (5-30 MHz), >20 dB (30-3000 MHz)
• Velocity of propagation: 85%
• Operating temperature: -5°C to +70°C
• Length: 1 m

Our verdict

A top-tier coaxial cable for short connections where signal quality and compliance are non-negotiable. The solid copper core and Class A shielding make it a reliable choice for professional installers.
