Cabo de alimentação Bachmann 116.270 branco 1,5 m

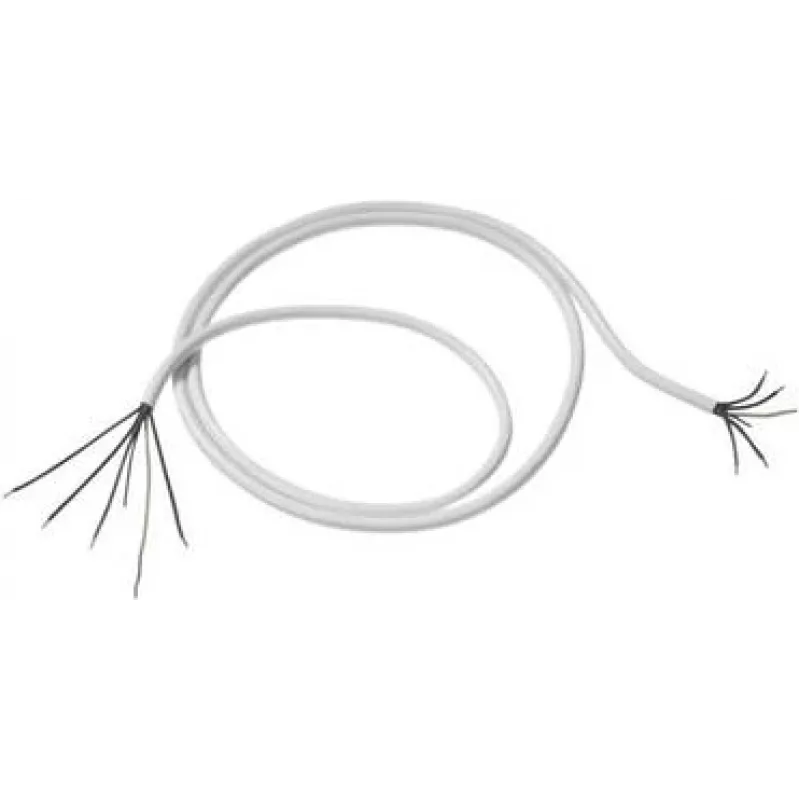

The Bachmann 116.270 power cable is a 1.5 m mains lead in white, intended for creating fixed power connections where a ready-made plug or cable end is not fitted. One conductor end is stripped 50 mm and fitted with end sleeves; the other end is stripped 110 mm with end sleeves, plus a 140 mm green/yellow protective conductor.

Advantages

This cable provides a factory-prepared cable end with crimped end sleeves for reliable conductor contact and easy termination. The white jacket offers a discreet appearance for home and office installations. The defined stripping lengths and separate protective conductor simplify connection to terminal blocks or devices requiring a grounded supply.

Suitable for

• Permanent wiring to equipment or junctions where a moulded plug is not required
• Connecting devices to terminal blocks, distribution units or appliances with screw terminals
• Installations requiring a visible white cable to match interior decor

Key specifications

• Brand: Bachmann
• Model / MPN: 116.270
• EAN: 4016514000883
• Length: 1.5 m
• Colour: White
• End 1: 50 mm stripped with end sleeves
• End 2: 110 mm stripped with end sleeves; protective conductor 140 mm green/yellow

How to use

Route the cable to the installation point and secure it to prevent strain on the conductors. Insert the stripped and sleeved conductor ends into the appropriate terminal clamps or screw terminals and tighten to the manufacturer’s torque specification. Ensure the green/yellow protective conductor is connected to the device earth or protective earth terminal. After termination, check continuity and insulation before applying mains voltage.

Recommendations

Use this Bachmann power cable for fixed wiring and appliance connections that require prepared conductor ends; avoid using it as a free-hanging extension lead. Verify compatibility with the receiving terminal block and follow local electrical safety regulations during installation.
