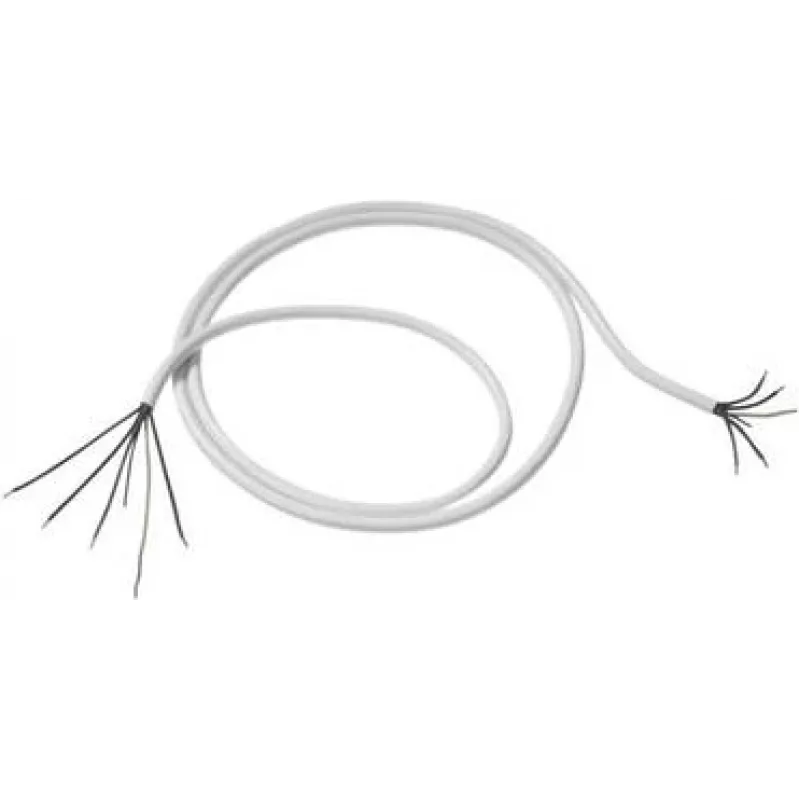

Cabo de alimentação Bachmann 118.270 branco 1,5 m

The Bachmann 118.270 power cable is a 1.5 m mains lead in white designed for safe and reliable connection of electrical equipment. The cable has two different prepared ends: one end is stripped 50 mm and fitted with end sleeves, the other end is stripped 110 mm and fitted with end sleeves; the protective conductor is stripped 140 mm and identified by green/yellow insulation. The flexible construction and neutral white finish make the cable suitable for residential and office installations.

Advantages

This power cable provides clearly prepared conductor ends with end sleeves for easier and more secure terminal connections. The 1.5 m length offers flexibility in positioning equipment without excess cable clutter. The green/yellow identified protective conductor ensures correct earthing. The white jacket allows discrete integration into light-coloured interiors.

Suitable for

• Connecting appliances or equipment to terminal blocks or junctions
• Replacing or extending existing fixed mains leads in home and office devices
• Installations where a visible white cable is preferred

Key specifications

• Brand: Bachmann
• Model / MPN: 118.270
• EAN: 4016514001002
• Length: 1.5 m
• Colour: White
• End 1: 50 mm stripped with end sleeves
• End 2: 110 mm stripped with end sleeves; protective conductor 140 mm, green/yellow

How to use

Verify that the cable rating matches the device's mains requirements before installation. Connect the stripped conductors with end sleeves to the corresponding terminals: live and neutral to the device's supply contacts and the green/yellow protective conductor to the earth terminal. Secure all terminal screws and ensure no bare conductor is exposed outside the connection area. Route the cable to avoid sharp edges and strain; use appropriate clamps or cable management as needed.

Recommendations

Use this cable only for mains voltage connections compatible with the device specifications. If unsure about wiring or safety requirements, consult a qualified electrician. Periodically inspect the cable and terminations for wear or damage and replace if any deterioration is found.
