Cabo de alimentação interno Akasa AK-CB001 0,15 m

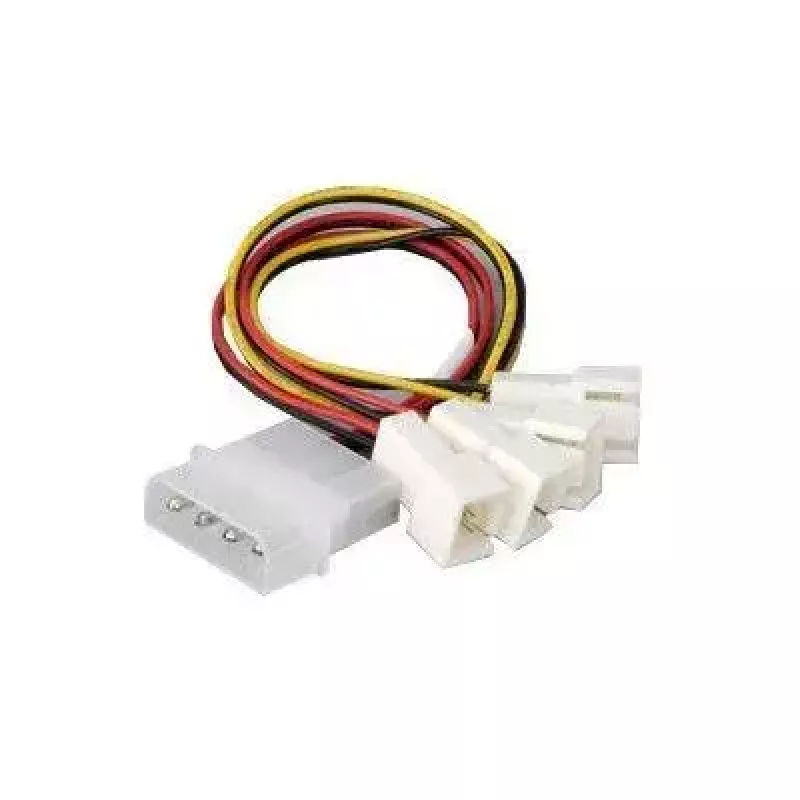

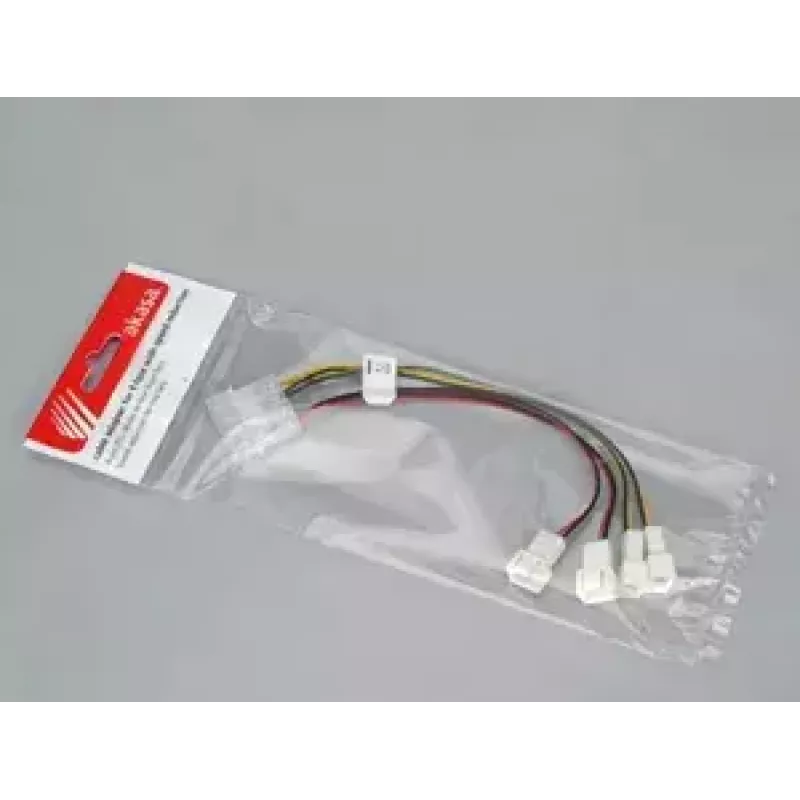

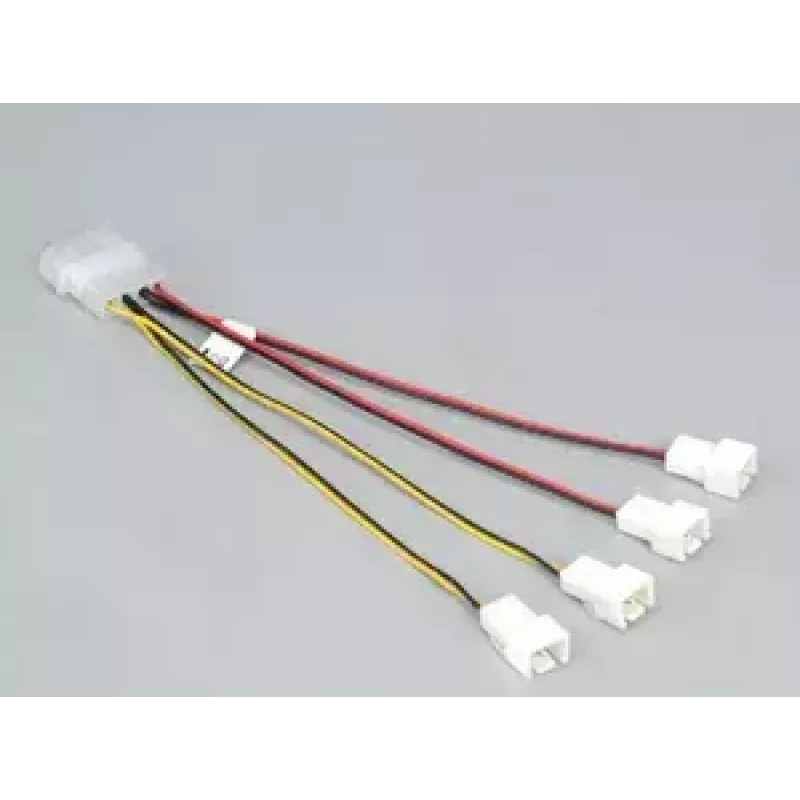

The Akasa AK-CB001 is a 0.15 m internal power cable that converts a single Molex 4-pin PSU connector into four separate 3-pin Molex fan connectors. It provides an easy and compact way to power multiple case fans from one power supply lead, with two of the outputs offering a reduced 5V option for lower fan speed.

Advantages

This short internal power cable increases the number of fan connections without requiring an extra power cable from the PSU. Two of the four connectors include a 5V tap (red/black) for reduced-speed operation, while the other two provide full 12V (yellow/black) supply. The compact 0.15 m length helps keep wiring neat in constrained PC cases and the Molex connectors ensure a secure, standardised connection.

Suitable for

• Connecting up to four case fans to a single Molex 4-pin PSU connector
• Reducing speed and noise for two fans using the 5V connectors
• Use in small or cramped PC builds where cable length should be minimal

Key specifications

• Cable length: 0.15 m
• Connector 1: Molex (4-pin)
• Connector 2: 4 × Molex (3-pin)
• Product colour: Multicolour
• Brand / MPN: Akasa AK-CB001

How to use

Plug the Molex 4-pin end into an available PSU Molex connector. Attach up to four 3-pin fan connectors to the four Molex 3-pin outputs. Use the yellow/black outputs for full 12V fan operation and the red/black outputs for reduced 5V fan operation to lower fan speed and noise. Ensure the PSU is switched off when connecting or disconnecting the cable.

Recommendations

Do not exceed the current rating of the PSU Molex rail; check fan current draw to avoid overloading the supply. For better speed control consider motherboard fan headers or a dedicated fan controller if precise RPM management is required.
