Cabo de alimentação ProXtend Type-A para ficha C7 angular preto 2 m 125 V 15 A

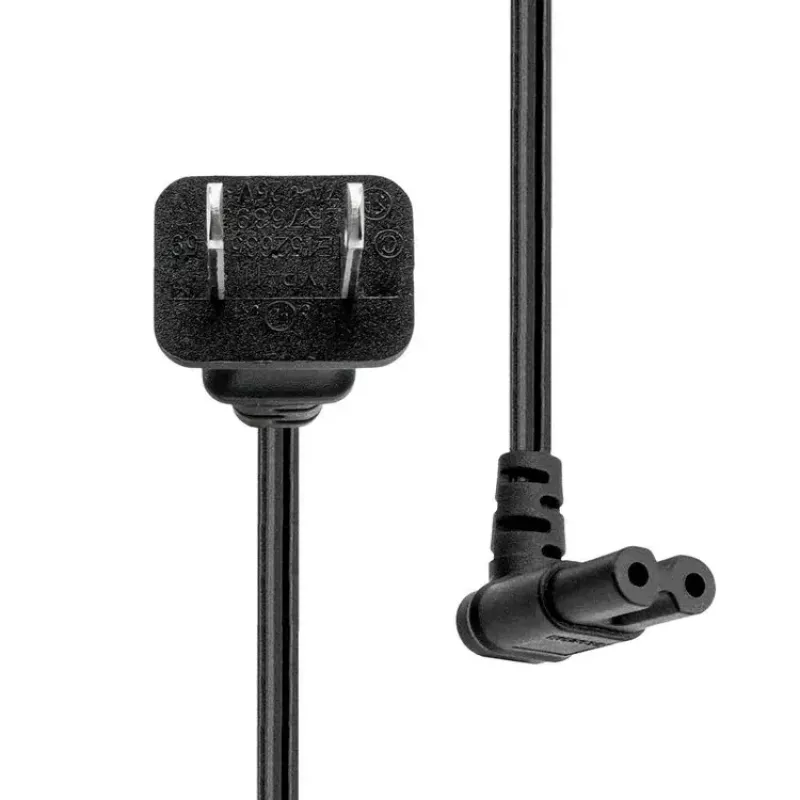

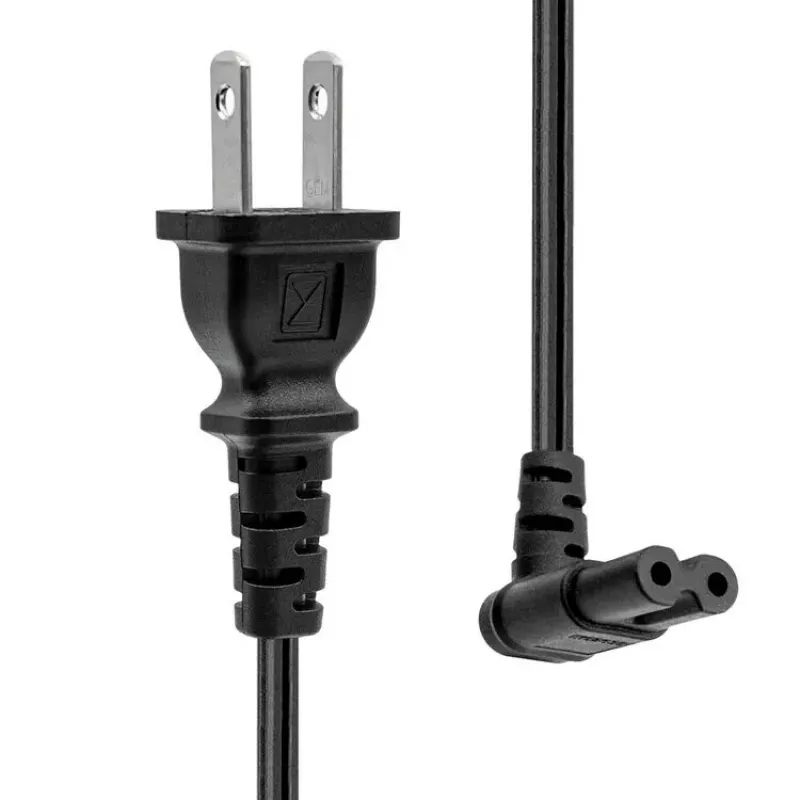

The ProXtend Type A to Angled C7 Power Cord (PC-AC7A-002) is a 2 m black mains cable that links a straight Type A plug to a 90° angled C7 coupler. It is intended for powering compatible electronic devices where a compact, angled connection is required and where mains use follows the Type A standard.

Advantages

This 18 AWG SPT-2 copper cable with a PVC jacket provides a robust conductor arrangement of two cores with 47 strands each (core size 0.824 mm²). The cable supports up to 125 V and 15 A, offering reliable power delivery for devices designed for Type A mains. The angled C7 end allows for space-saving connections behind equipment.

Suitable for

• Small consumer electronics with a C7 inlet (audio equipment, some chargers, portable devices)
• Home and office devices in regions using Type A mains (North/Central America, China, Japan)
• Installations requiring an angled connector for tight spaces behind furniture or equipment

Key specifications

• Model: PC-AC7A-002
• Length: 2 m
• Connector 1: Power plug Type A (straight)
• Connector 2: C7 coupler (angled 90°)
• Cable type: 18 AWG SPT-2 copper, PVC jacket
• Cores: 2 × 47 strands (core size 0.824 mm²)
• Rated input voltage: 125 V
• Rated input current: 15 A
• Colour: Black
• Brand: ProXtend

How to use

Insert the straight Type A plug into a compatible mains outlet and connect the angled C7 coupler to the device’s C7 inlet. Ensure the cable is fully seated at both ends and positioned to avoid sharp bends near the angled connector. Do not force connections; the angled coupler is designed to fit C7 inlets aligned for a 90° exit.

Recommendations

Use this cable only with devices rated for 125 V and 15 A and intended to accept a C7 connector. Inspect the cable for damage before use, avoid exposure to heat sources or liquids, and replace the cable if any insulation or conductor damage is found.
