Cabo de arranque IWH 075634 30,0 mm² alumínio revestido a cobre 3,5 m

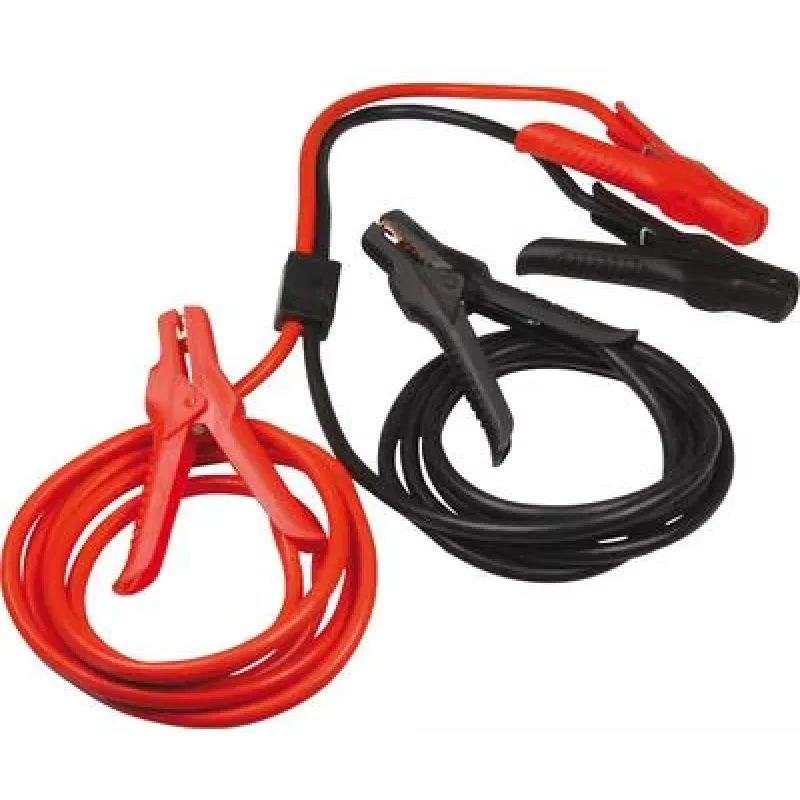

Heavy-duty jump cable IWH 075634 with a 30.0 mm² conductor cross-section, aluminium core with copper coating and a length of 3.5 m. Designed for jumper/start applications, it transfers high current between batteries or power sources and combines the light weight of aluminium with a corrosion-resistant copper surface to improve conductivity and mechanical flexibility.

Advantages

The copper-coated aluminium conductor offers a balance of lower weight and improved surface conductivity compared with bare aluminium. A 30.0 mm² cross-section supports high current transfer for starter and jump applications, and the 3.5 m length provides reach between vehicles or power units. The cable is suitable for repeated temporary connections and is constructed to resist corrosion on the conductor surface.

Suitable for

Key specifications

How to use

Connect the cable clamps to the corresponding battery terminals following standard jump-start procedures: attach the positive clamp to the positive terminal of the discharged battery and the positive clamp to the donor battery, then connect the negative clamp to the donor battery negative and a suitable chassis ground on the vehicle with the discharged battery. Ensure clamps are firmly attached and avoid contact between clamps during use. After the vehicle starts, remove the clamps in reverse order.

Recommendations

Inspect the cable and clamps for visible damage or corrosion before each use, and ensure correct polarity when connecting. Avoid prolonged use beyond the intended temporary jump-start purpose and store the cable dry and protected from mechanical damage.
