Cabo de carregamento EV ANSMANN Type 2 22kW 7,5m Preto

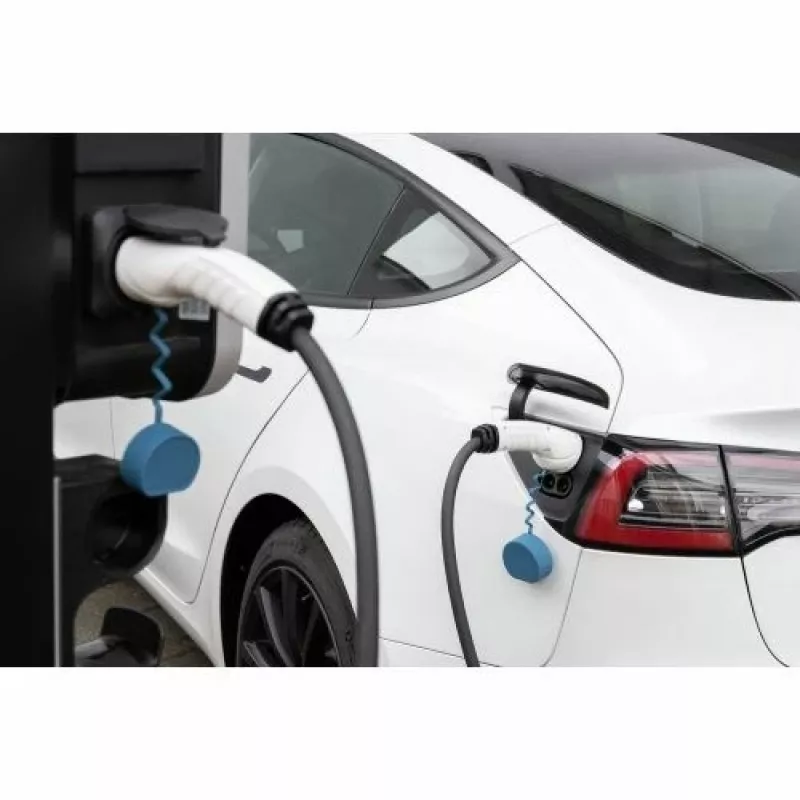

The ANSMANN EV Charging Cable Type 2 is a high-quality charging solution for electric vehicles, designed for both home and public charging stations. With a maximum charging power of 22 kW and a length of 7.5 meters, this cable offers flexibility and efficiency for everyday charging needs.

Advantages

This cable supports 3-phase charging up to 22 kW, ensuring fast and reliable charging. The Type 2 connectors on both ends are compatible with most European EVs and charging stations. The TPU sheath provides excellent durability, UV resistance, and flexibility even in extreme temperatures. The ergonomic connectors make handling easy, and the cable is oil, abrasion, and impact resistant for long-lasting use.

Suitable for

• Electric vehicles with Type 2 inlet (IEC 62196-2)
• Charging stations with Type 2 socket
• Home, workplace, and public AC charging

Key specifications

• Connector Type: Type 2 (IEC 62196-2) on both ends
• Maximum Charging Power: 22 kW (3-phase)
• Maximum Charging Current: 32 A
• Voltage Rating: 400V AC
• Cable Length: 7.5 m
• Cable Sheath Material: TPU (Thermoplastic Polyurethane)
• Conductor Material: Copper
• Operating Temperature: -30°C to +50°C
• IP Rating (when mated): IP55
• Certifications: CE, RoHS, REACH, TÜV
• Colour: Black

Recommendations

For optimal performance, ensure your charging station supports 22 kW output. This cable is ideal for daily charging and can be used with most Type 2 compatible EVs. Store in a dry place when not in use.
