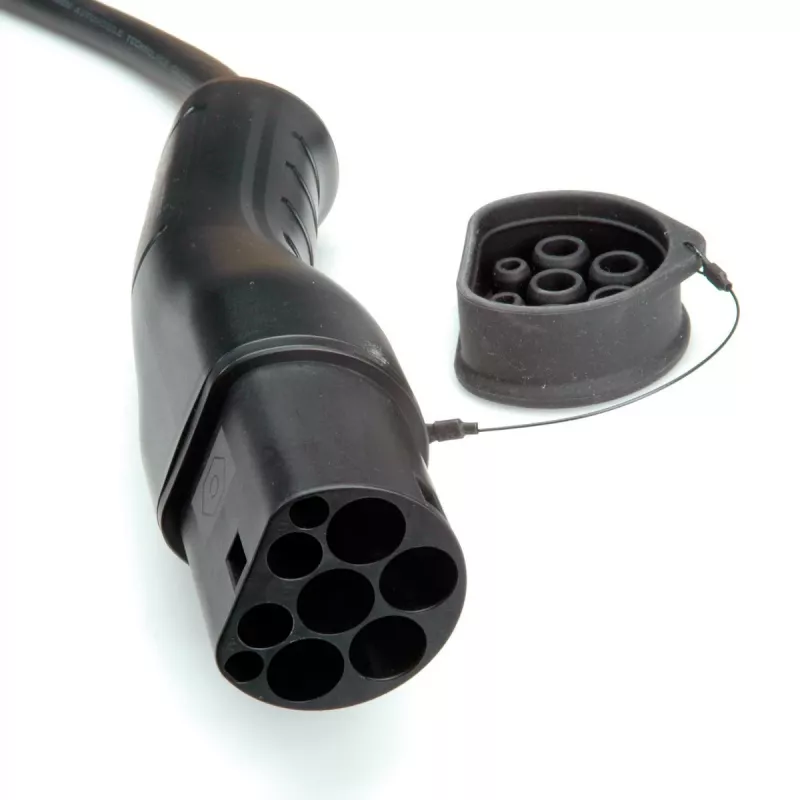

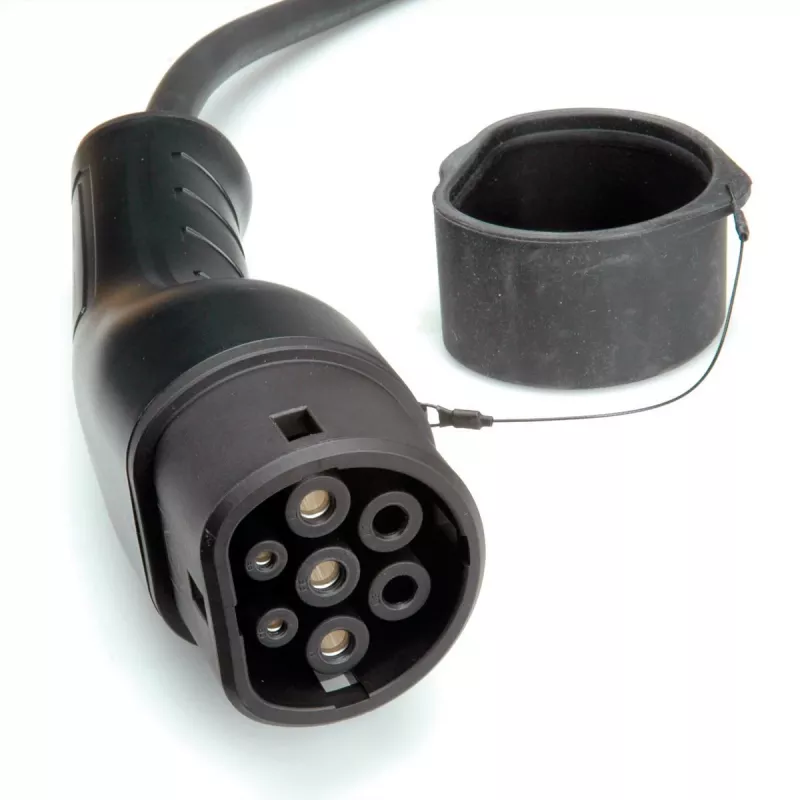

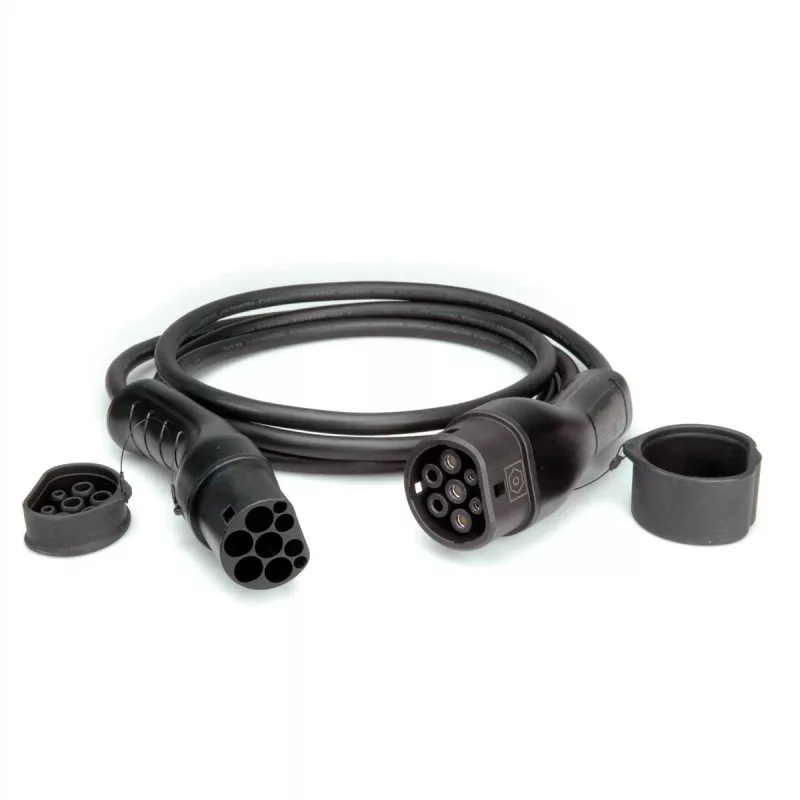

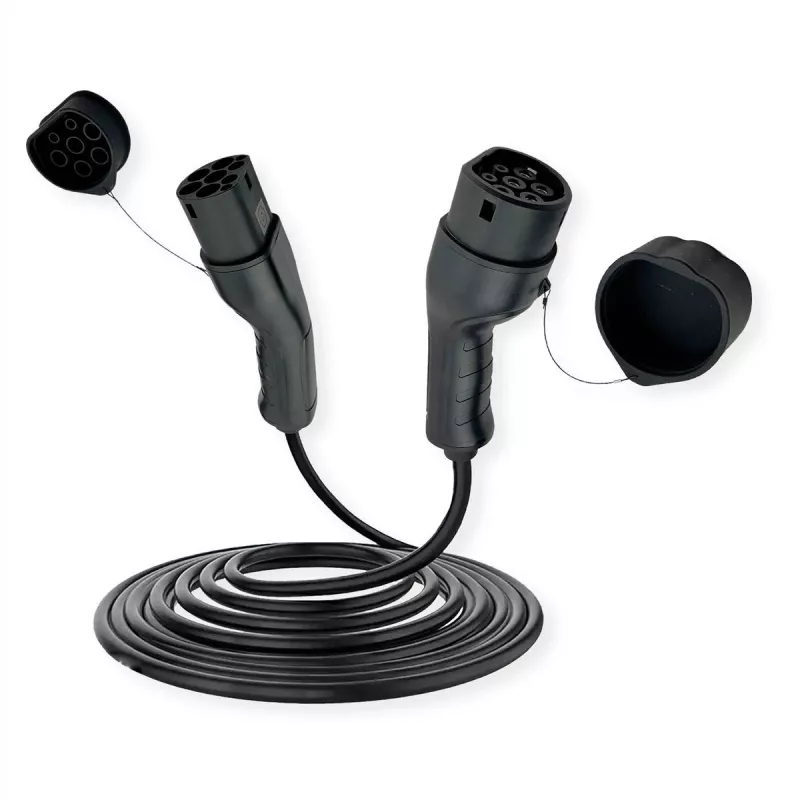

Cabo de carregamento para veículos elétricos ROLINE Type 2 para Type 2, 5 m, 11 kW, 16 A, 480 V, preto

ROLINE Type 2 to Type 2 electric vehicle charging cable, 5 m in length and black jacket, provides a straightforward connection between compatible electric vehicles and Type 2 charge points. The cable supports three-phase charging at up to 11 kW with a maximum continuous current of 16 A and is rated for operating voltages up to 480 V. Supplied as a single flexible cable, it is intended for use at home, workplace or public charging stations where a Type 2 interface is available.

Advantages

The cable features standard Type 2 connectors on both ends for universal compatibility with European EVs and public charge points. With a 5 m length, it offers increased reach and flexibility for parking arrangements. The 11 kW three-phase capability allows faster charging compared to single-phase alternatives where the charging infrastructure and vehicle support it. A robust black jacket protects the conductors from mechanical wear and outdoor exposure in typical charging conditions.

Suitable for

• Connecting Type 2 electric vehicles to Type 2 charge points at home
• Charging at workplace charging stations with Type 2 sockets
• Using public Type 2 charging stations that support up to 11 kW three-phase charging
• Temporary or permanent cable use where a 5 m length is appropriate

Key specifications

• Cable length: 5 m

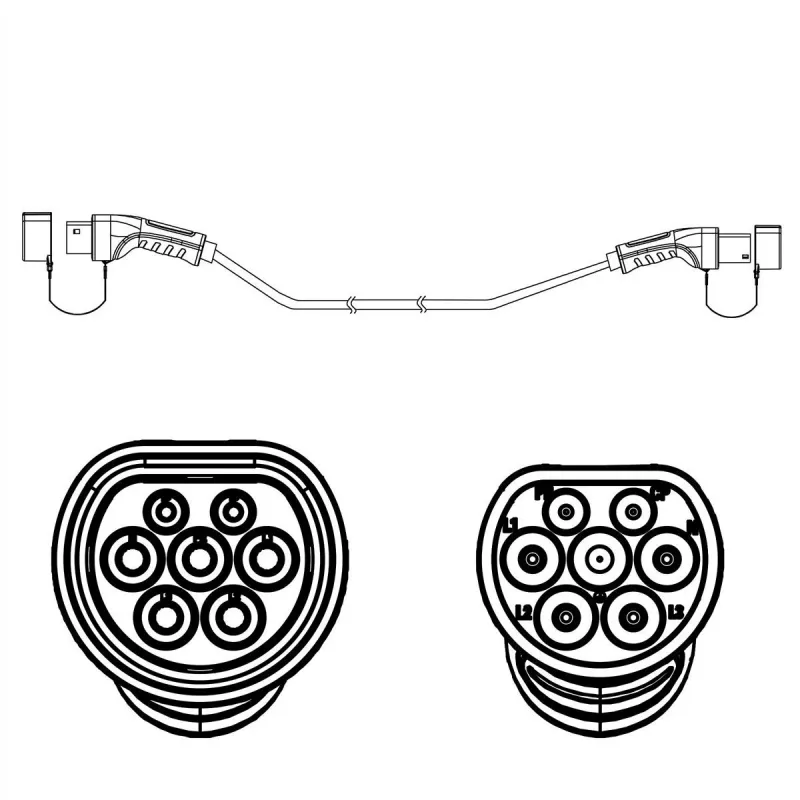

• Connector type: Type 2 (both ends)
• Maximum power: 11 kW (three-phase)
• Maximum current: 16 A
• Rated voltage: up to 480 V
• Color: black

How to use

Ensure both the vehicle and the charging point have Type 2 sockets and that the charging station supports the required power and current. Park with the vehicle accessibly positioned, inspect the cable and connectors for visible damage, then insert one Type 2 connector into the vehicle inlet and the other into the charging point. Follow the charge point’s instructions to start the charging session. When charging is complete, stop the session using the charge point controls if required, unplug the connectors and store the cable in a dry location.

Recommendations

Use the cable within its rated current and voltage limits, avoid sharp bends and heavy loads on the cable, and protect it from prolonged exposure to extreme weather. For safe operation, do not use the cable if connectors or the jacket are damaged; arrange inspection or replacement. Keep connectors clean and free of debris before each use.
