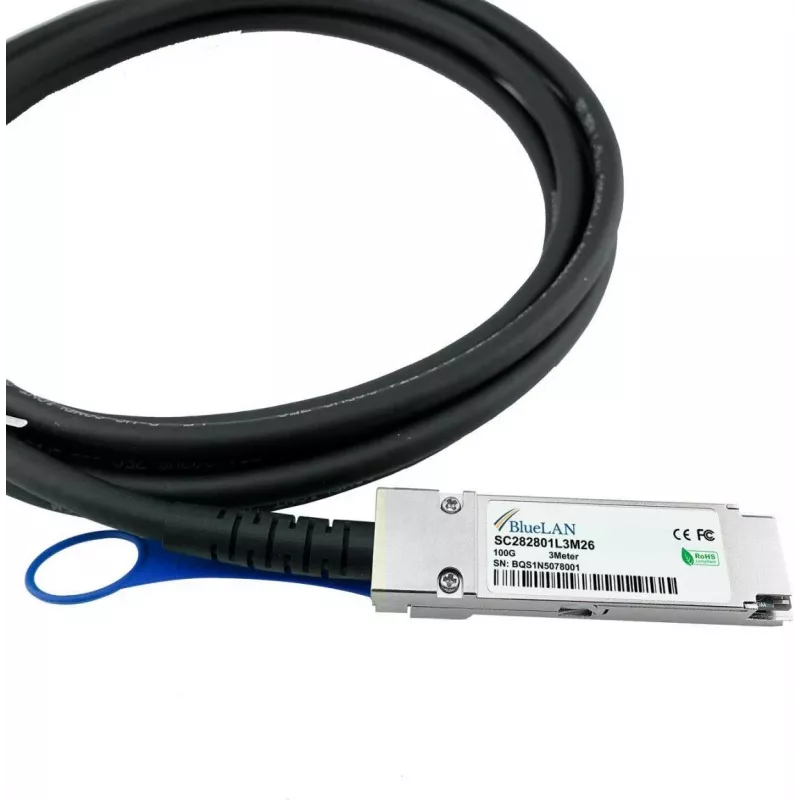

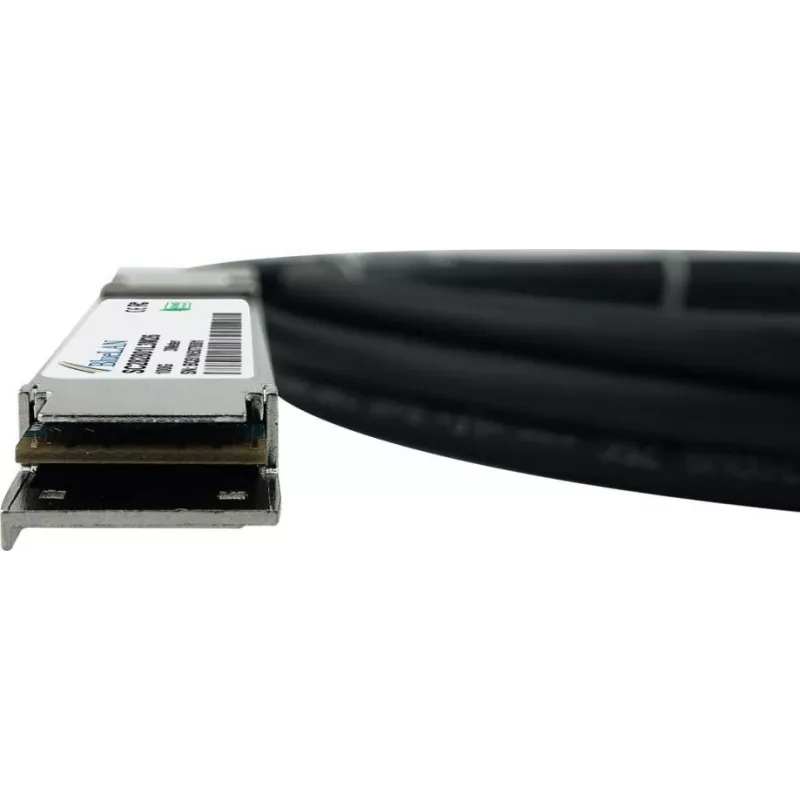

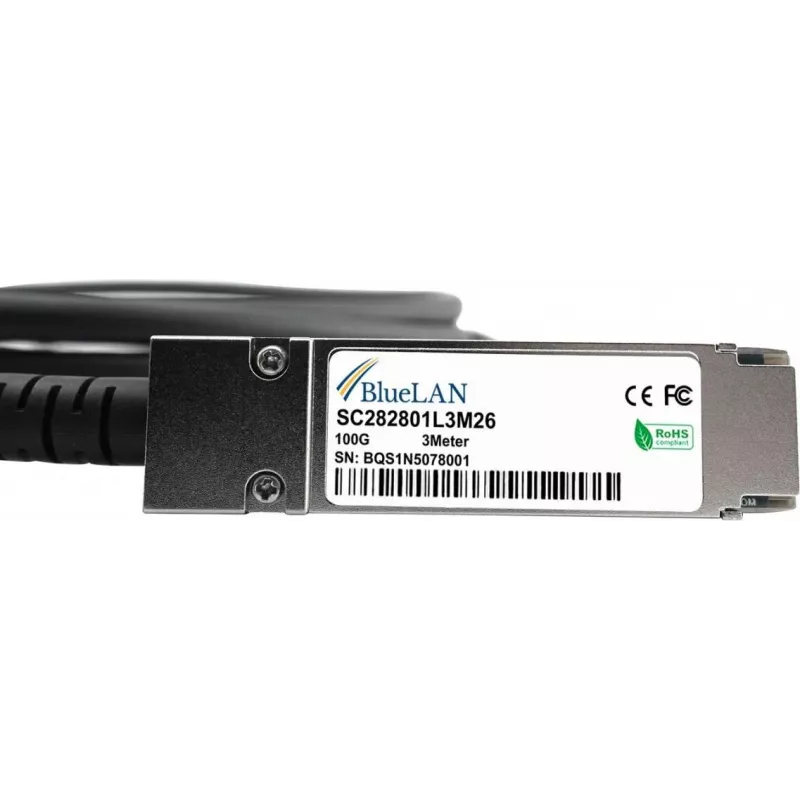

Cabo de cobre Direct Attach BlueLAN 100G QSFP28, 1m, Twinax passivo, 30AWG, InfiniBand EDR, compatível com NVIDIA Mellanox MCP1600-E01BE30-BL

Direct Attach Copper (DAC) cable delivering 100 Gbps over QSFP28 connectors for data center and high-performance computing links. Passive twinax construction with 30AWG conductors maintains signal integrity over a 1-meter reach while consuming under 0.5W per end.

Advantages

Hot-swappable QSFP28 interfaces simplify installation and replacement in dense rack environments. The passive design eliminates active components, reducing power draw and heat generation compared to optical alternatives. RoHS compliant materials support environmentally conscious procurement.

Suitable for

• Data center top-of-rack to server interconnects
• High-performance computing clusters using InfiniBand EDR
• Enterprise network aggregation links requiring 100GBASE-CR4

Key specifications

• Data rate: 100 Gbps
• Protocols: 100GBASE-CR4, InfiniBand EDR
• Connectors: QSFP28 to QSFP28
• Length: 1 meter
• Wire gauge: 30AWG
• Operating temperature: 0°C to 70°C

Recommendations

Verify switch and NIC compatibility with NVIDIA Mellanox MCP1600-E01BE30 coded transceivers before deployment. For longer distances, consider active optical cables.
