Cabo de controlo LAPP ÖLFLEX CLASSIC 110 4 x 0,75 mm² cinzento 100 m 1119804-100

Rated for 300/500 V with a test voltage of 4000 V, this control cable is built for reliable signal and power transmission in industrial environments.

Overview

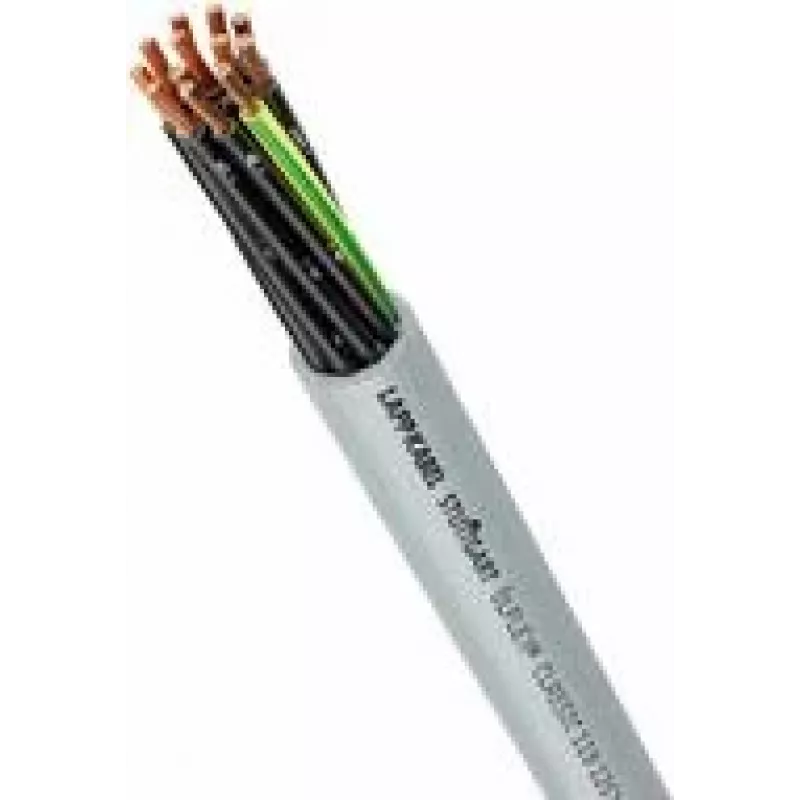

The LAPP ÖLFLEX CLASSIC 110 is a flexible PVC control cable with 4 conductors of 0.75 mm² cross-section. The fine-wire Class 5 conductor construction ensures flexibility, while the grey PVC sheath provides mechanical protection. Core identification uses black cores with white numbers plus a green-yellow earth conductor, conforming to VDE 0293-308.

What stands out

• Fine-wire Class 5 conductors for flexibility in moving applications
• Flame retardant according to IEC 60332-1-2
• Wide temperature range: -5°C to +70°C flexible, -40°C to +80°C fixed
• Green-yellow earth conductor for safe grounding

Technical details

• Number of conductors: 4
• Conductor cross-section: 0.75 mm²
• Outer diameter: 6.6 mm
• Sheath colour: Grey (RAL 7001)
• Minimum bending radius: 15 x outer diameter flexible, 4 x outer diameter fixed
• Length: 100 m

Our verdict

A dependable control cable for industrial machinery and plant engineering, offering good flexibility and flame retardancy.
