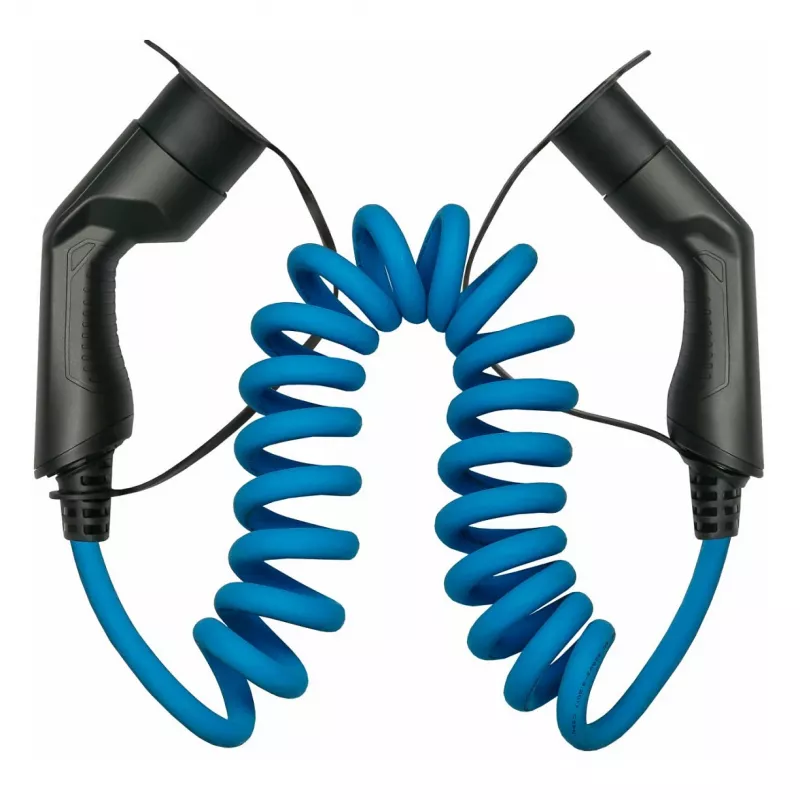

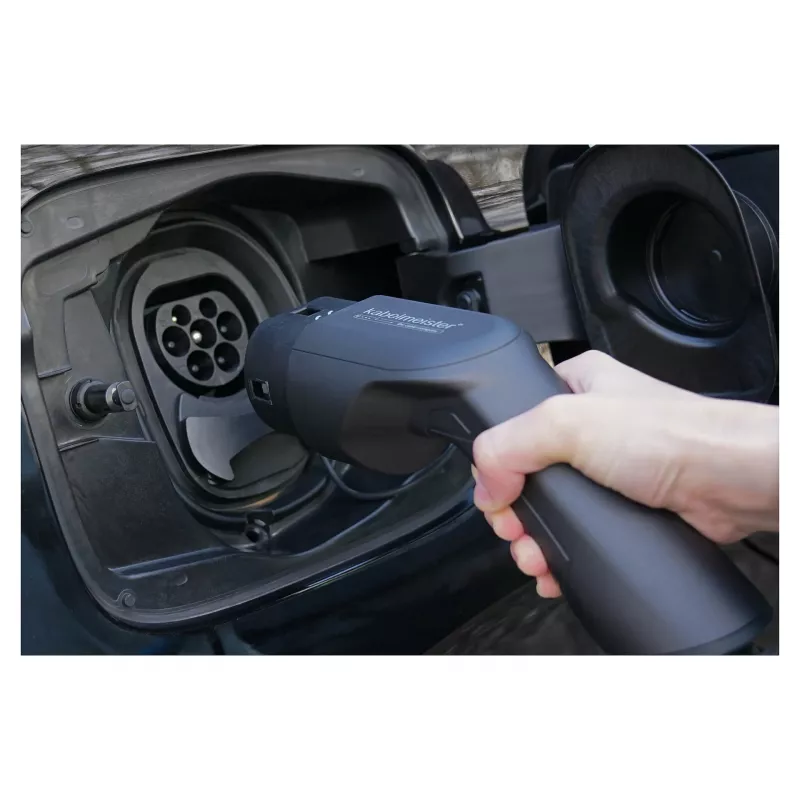

Cabo de extensão EV KABELMEISTER Mode 3, ficha Type 2 para conector fêmea, trifásico, 32A, 22kW, cabo espiral, 5m, preto

The KABELMEISTER EVC04-050B is a high-quality Mode 3 electric vehicle charging extension cable, designed for reliable and efficient charging. With a Type 2 plug on one end and a Type 2 socket on the other, this 3-phase cable supports up to 32A and 22kW, making it ideal for extending the reach of your charging station. The coiled design keeps the cable tidy and tangle-free, while the robust construction ensures durability in various weather conditions.

Advantages

This extension cable offers flexibility and convenience for EV owners. The 5-meter coiled length provides extra reach without clutter, and the IP54 rating ensures protection against dust and water splashes when connected. The Type 2 locking mechanism guarantees a secure connection, and the cable is TÜV and CE certified for safety and compliance with IEC 62196-2 standards.

Suitable for

• Extending the reach of your existing Mode 3 charging cable
• Use with Type 2 compatible electric vehicles and charging stations
• Home, workplace, and public charging scenarios

Key specifications

• Product Type: EV Charging Extension Cable
• Charging Mode: Mode 3
• Connector 1: Type 2 Plug (Male)
• Connector 2: Type 2 Socket (Female)
• Number of Phases: 3-phase
• Maximum Charging Current: 32 A
• Maximum Charging Power: 22 kW
• Operating Voltage: 400V AC
• Cable Length: 5 m
• Cable Design: Coiled (Spiralkabel)
• Conductor Cross-Section: 5x 6 mm² + 2x 0.5 mm²
• Protection Rating: IP54 (when connected)
• Operating Temperature: -30 °C to +50 °C
• Certifications: CE, TÜV
• Cable Color: Black

Recommendations

For optimal performance, ensure your charging station and vehicle are compatible with Mode 3 and Type 2 connectors. This cable is an excellent choice for extending your existing setup without compromising on charging speed or safety.
