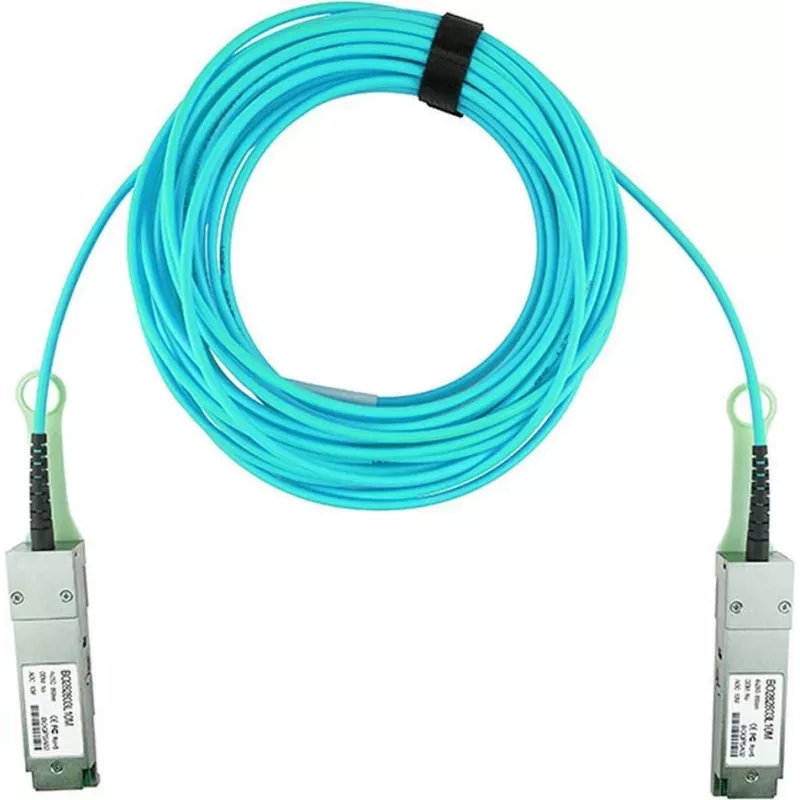

Cabo de fibra ótica AOC CBO BlueOptics QSFP28 BO282803L5M 100G 5m

AOC fiber cable CBO BlueOptics QSFP28 BO282803L5M 100G 5m is an active optical cable designed for high-density data center connections and short- to mid-range interconnects. The integrated QSFP28 connector supports 100 gigabit per second links and replaces separate transceivers and multimode fiber patching with a single, factory-assembled optical assembly. With a 5 meter length, this AOC is intended for direct connections between servers, switches and aggregation equipment where low latency and reduced power consumption are required.

Advantages

This AOC provides a compact, plug-and-play solution that eliminates the need to install separate SFP/QSFP transceivers and fiber patch cords. Its active optical design enables lower power consumption compared with equivalent electrical copper cables at 100G, while supporting longer reach and immunity to electromagnetic interference. Factory-terminated optical interfaces reduce installation time and potential connection errors, and the standardized QSFP28 connector ensures compatibility with equipment that supports QSFP28 ports.

Suitable for

• Top-of-rack and end-of-row server-to-switch connections in data centers
• Switch-to-switch aggregation within the same rack or across adjacent racks
• High-density network installations requiring 100G links with minimal cabling complexity
• Low-latency connections for compute clusters and storage arrays

Key specifications

• Interface type: QSFP28 optical connector
• Data rate: 100 Gbit/s
• Length: 5 meters (fixed cable assembly)
• Cable type: Active optical cable with factory-terminated fibers
• Transmission medium: Optical fiber for short to mid-range links
• Latency and power: Designed for low-latency operation and reduced power consumption versus comparable copper solutions

How to use

Install the AOC by inserting each QSFP28 connector into the corresponding QSFP28 port on the devices to be linked, ensuring ports are powered down or follow the host equipment hot-plug guidance. Once connected, verify link status via the host device management interface or LED indicators. The cable requires no separate configuration; the optical transceiver functions are part of the assembly. For removal, power down the ports if recommended by the equipment vendor and disengage the connector using the built-in latch mechanism.

Recommendations

Use this AOC in controlled data center environments where bend radius limits can be respected and connectors are protected from dust. Avoid excessive pulling force and sharp bends; route the cable through cable management paths to preserve signal integrity. Check compatibility with switch and server firmware for QSFP28 support and monitor link diagnostics after deployment.
