Cabo de fibra ótica BlueOptics CBX-STC012BPF-MXXN-MXXN-001M-BO MTP OM4 1 m rosa

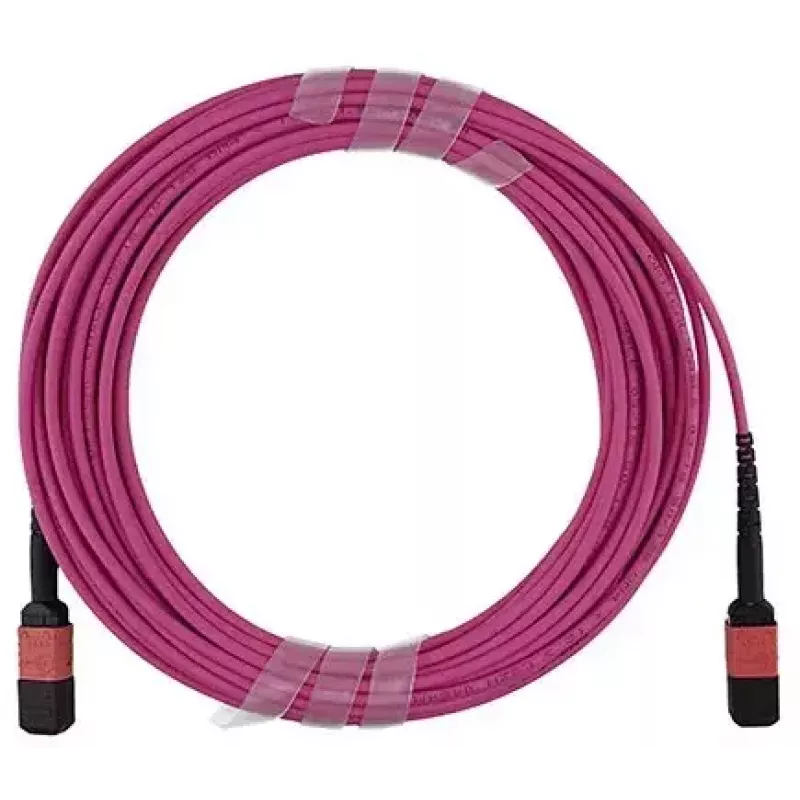

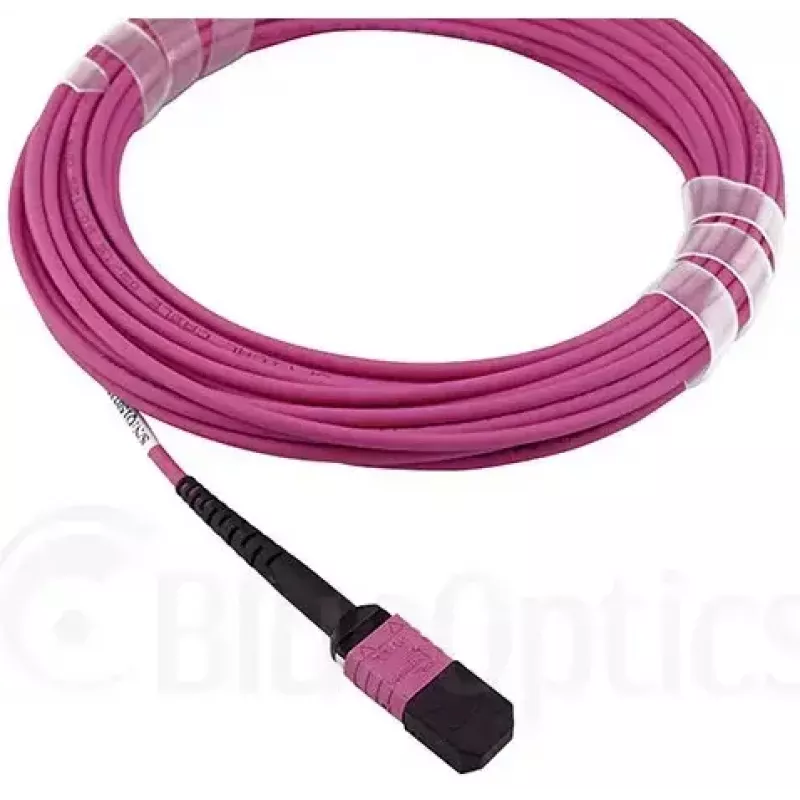

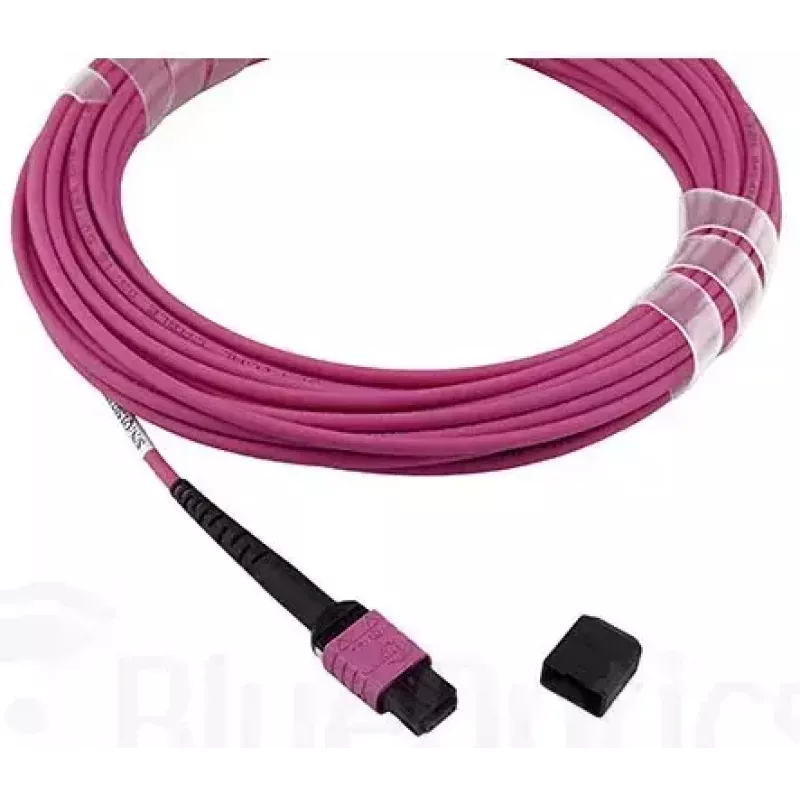

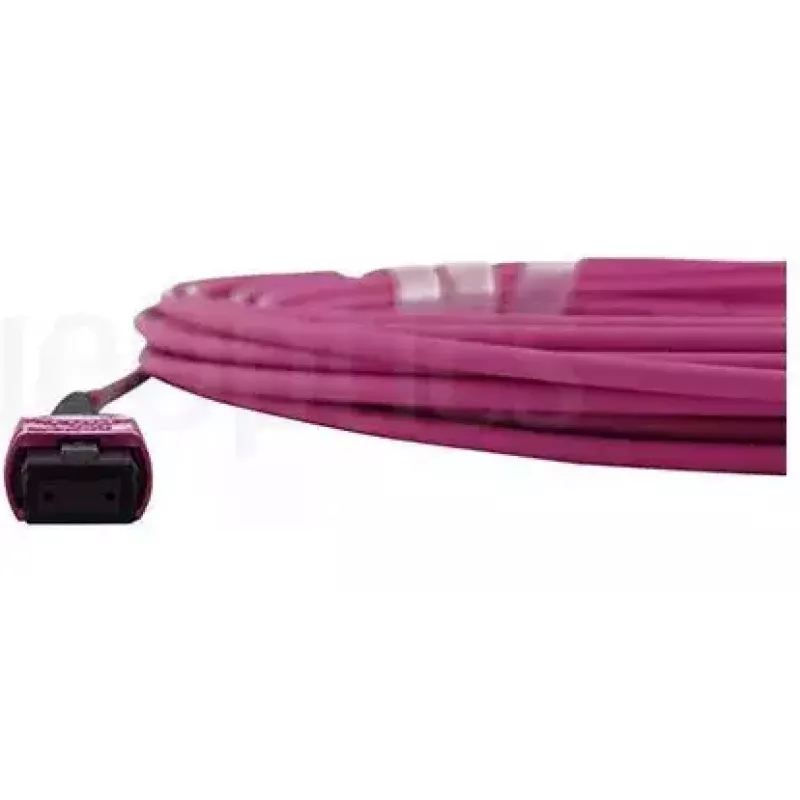

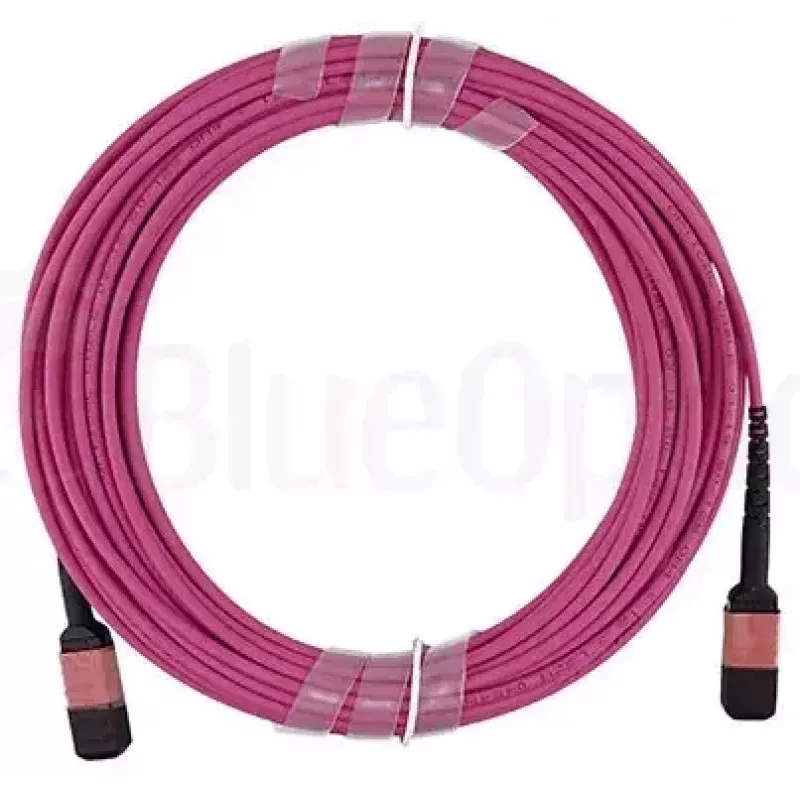

The BlueOptics CBX-STC012BPF-MXXN-MXXN-001M-BO MTP OM4 1 m Pink is a 1-meter, 12-core multimode fiber optic trunk cable designed for high-density, high-speed network connections. It features MTP/UPC connectors on both ends (MTP to MTP), OM4 laser-optimized 50/125 µm multimode fiber, LSZH flame-retardant sheath, and ceramic ferrules to ensure stable, low-loss optical links suitable for data center and telecom environments. The pink jacket provides easy visual identification in complex cable environments.

Advantages

This 1 m OM4 MTP-MTP cable delivers low insertion loss and high return loss through quality multimode fiber and precision ceramic ferrules, supporting dense parallel links and InfiniBand or high-speed Ethernet applications. The LSZH jacket reduces smoke and halogen emission in case of fire, meeting common industrial safety requirements. Each cable is tested for input loss and return loss and supplied with a measurement protocol to ensure consistent performance.

Suitable for

Key specifications

How to use

Install the MTP-MTP OM4 cable by aligning the MTP connector keys with the equipment adapter or MTP cassette and inserting the connector until the latch engages. Use appropriate cable management and strain relief to avoid excessive bending or tensile stress; maintain the minimum bend radius recommended for multimode fiber. For parallel optic links, ensure correct polarity (Type B) and that transceiver and patch panel mappings match the 12-core wiring scheme before powering network equipment.

Recommendations

Store and handle the cable in a clean environment, avoid contaminating connector endfaces, and inspect/polish connectors if necessary. Use dust caps when connectors are not mated. Follow manufacturer guidelines for allowable bend radius and mating cycles to preserve low insertion loss and long-term reliability.
