Cabo de fibra ótica BlueOptics CBX-STH008BPQ-MXXN-UC4N-001M-BO MTP 4xLC OM4 1 m rosa

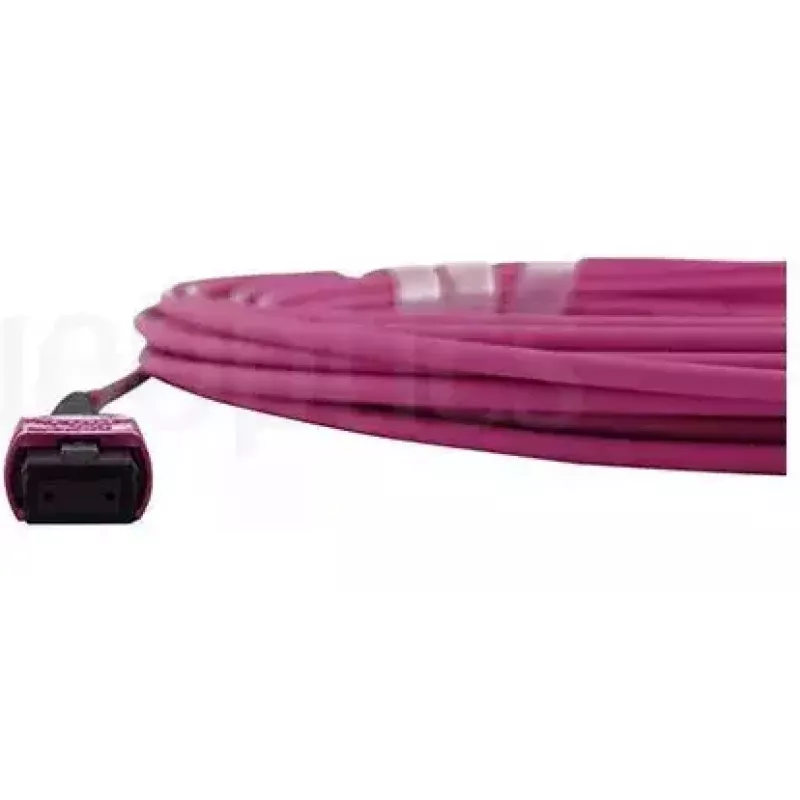

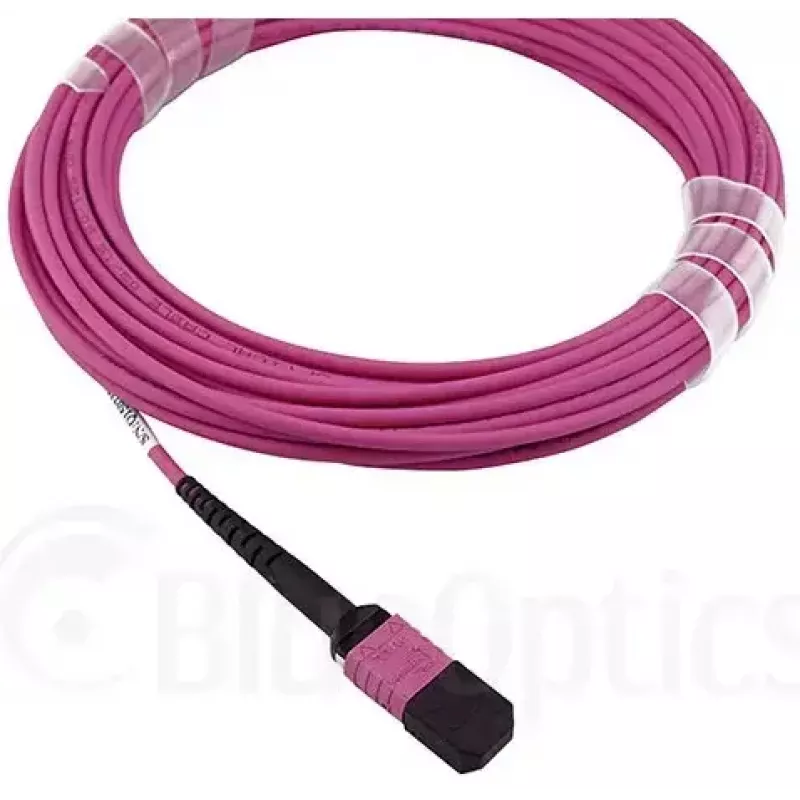

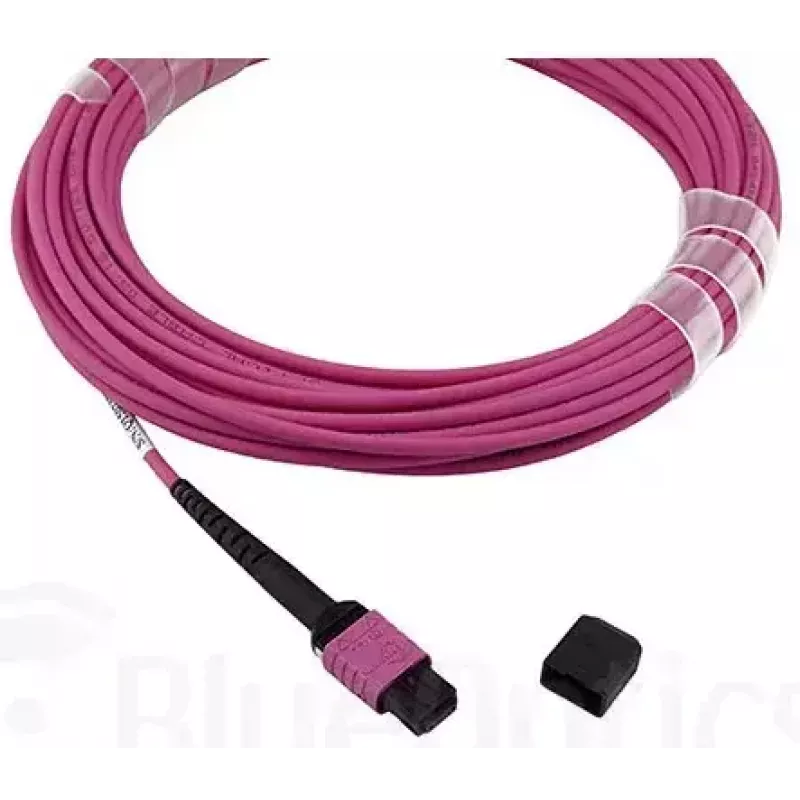

The BlueOptics CBX-STH008BPQ-MXXN-UC4N-001M-BO MTP 4xLC OM4 1 m Pink is a 1 metre multimode fibre optic breakout patch cable engineered for InfiniBand and high-speed data centre links. It terminates in an MTP connector on one end and four LC duplex connectors on the other, uses laser-optimized OM4 50/125 µm multimode fibre and is supplied with measurement data for input loss and return loss. The cable has a pink LSZH sheath and is intended for short-range, high-bandwidth interconnects where reliable full-duplex transmission is required.

Advantages

This MTP to 4xLC breakout cable provides low insertion loss and high return loss values, supporting stable high-bandwidth communication. The OM4 multimode fibre and precision ceramic ferrules enable consistent optical performance while the LSZH sheathing reduces smoke and halogen emissions in case of fire. Each cable is continuity- and performance-tested (interferometer and OTDR) and delivered with a measurement protocol, helping to verify real-world attenuation values and ensure predictable system behaviour.

Suitable for

Key specifications

How to use

Install the cable by aligning and inserting the MTP connector into the MTP/MPO port of a patch panel or cassette, and plug the LC duplex connectors into the corresponding LC ports on transceivers or patch panels. Observe correct polarity and the manufacturer’s mating cycles; avoid sharp bends and mechanical stress on the fibre run. Use the supplied measurement protocol to confirm insertion loss and return loss after installation and before commissioning.

Recommendations

Route this OM4 MTP–4xLC cable along existing cable management paths, maintain the minimum bend radius specified by the manufacturer, and keep connectors capped until final connection. For multi-segment links, validate end-to-end performance with an OTDR or appropriate test equipment to ensure the attenuation budget meets link requirements.
