Cabo de fibra ótica BlueOptics F5-UPG-QSFP4X10LR-2M-BO InfiniBand MTP 4x LC 2m

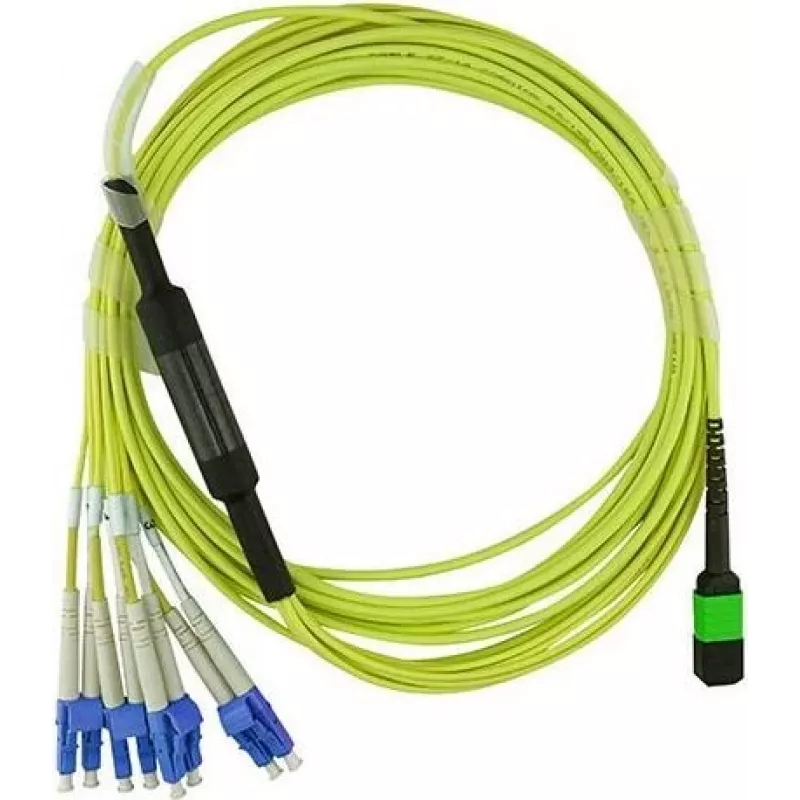

The BlueOptics F5-UPG-QSFP4X10LR-2M-BO InfiniBand fibre optic cable is a 2 metre single-mode patch cable designed for high-speed data transmission in data centres and enterprise networks. It combines an MTP connector on one end with four LC duplex connectors on the other, uses G.657.A1 laser-optimized fibre and is fitted with a low-smoke, zero-halogen (LSZH) jacket. The cable is intended for connecting high-density transceivers, patch panels and optical equipment where reliable, low-loss links are required.

Advantages

This cable offers low attenuation and high return loss values for stable optical performance. The use of G.657.A1 single-mode fibre provides good bend performance and compatibility with standard single-mode systems. Connectors and ferrules are manufactured to industry quality standards to ensure repeatable mating performance and long service life. The LSZH jacket reduces hazardous emissions and smoke in confined installations.

Suitable for

Key specifications

How to use

Route the cable between the MTP port of the source device and the LC ports of the destination patch panel or transceivers. Ensure connectors are clean and free from dust before mating; use protective caps until final installation. Align and push the MTP connector into the corresponding MTP receptacle until it latches, and insert each LC duplex connector into the LC ports with a gentle push until secure. Avoid tight bends and kinks; maintain the recommended minimum bend radius for G.657.A1 fibre during installation and cable management.

Recommendations

For consistent optical performance, clean connectors with appropriate fibre cleaning tools prior to each connection and keep measurement reports available for reference. Use cable management panels or trays to preserve bend radius and protect against mechanical stress. Replace the cable if connectors show visible damage or if OTDR/attenuation measurements exceed acceptable loss limits.
