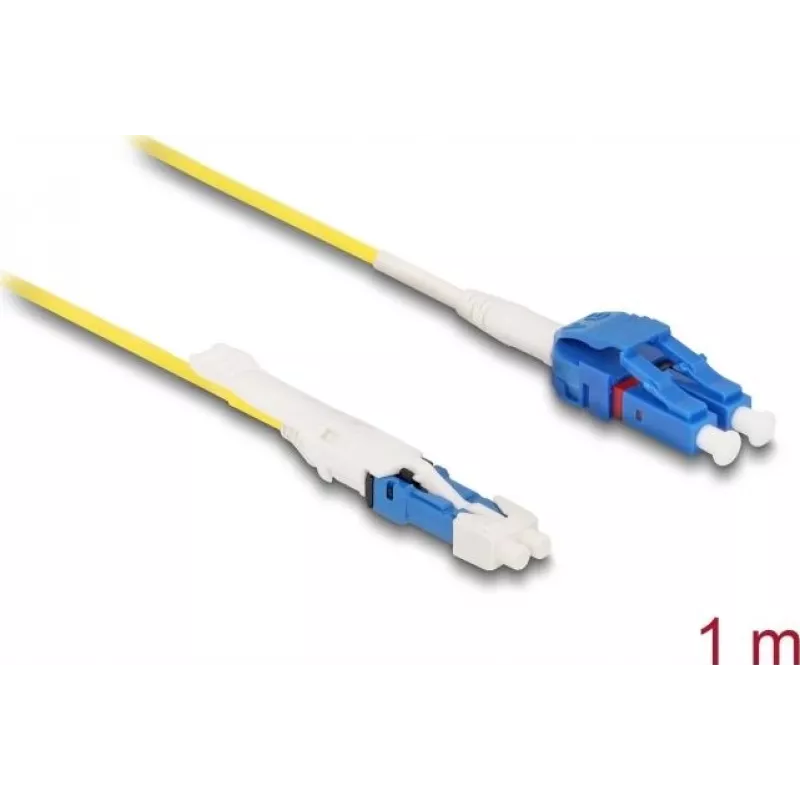

Cabo de fibra ótica DeLOCK 88299 CS macho para LC Duplex OS2 1 m

This optical fiber cable by DELOCK is designed to connect transceivers with a CS interface to LC Duplex ports and to be used for optical cabling in data centre environments. The singlemode OS2 cable has a 9 µm core and a length of 1 m, supports full duplex transmission and is available in blue and yellow.

Advantages

The CS male to LC Duplex OS2 cable provides a compact CS (Senko) connector that enables higher packing density compared with standard LC Duplex connectors. The Uniboot-style singlemode construction with a 9 µm core minimises signal loss for long-distance transmission, while the push-pull tab on the CS connector allows easy insertion and removal.

Suitable for

Key specifications

How to use

Align the CS connector with the corresponding CS transceiver port and push the connector in until it clicks; use the push-pull tab to release and remove the connector. Insert the LC Duplex connector into the matching LC port, ensuring correct orientation for duplex operation. Route the cable to avoid sharp bends and secure it according to your rack or cabinet cable management practices.

Recommendations

Use this OS2 singlemode cable for point-to-point fibre links and in high-density installations where CS connectors save space; maintain minimum bend radius and protect connectors from dust when not in use.
