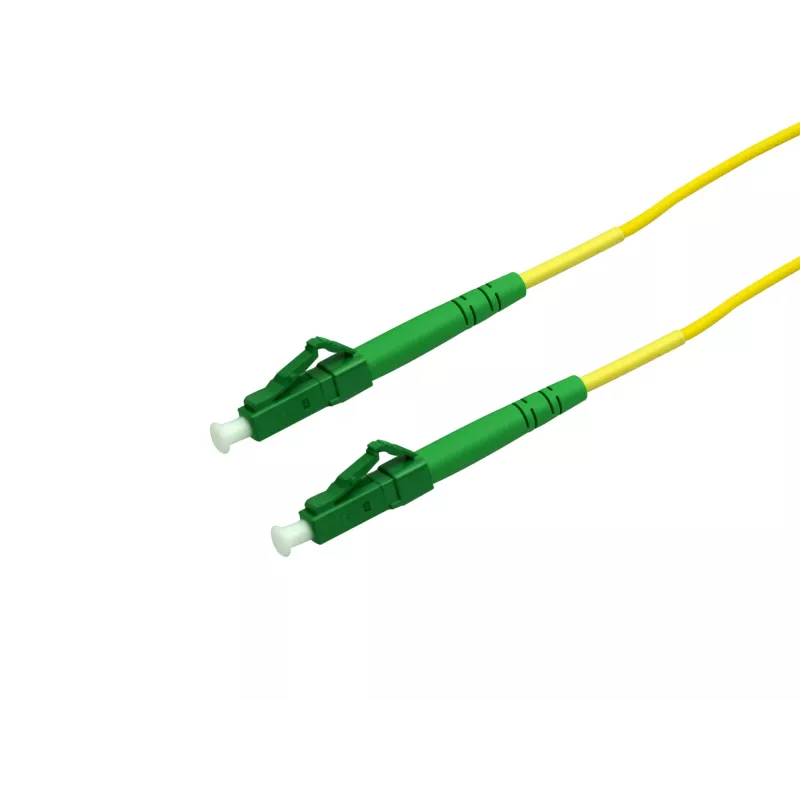

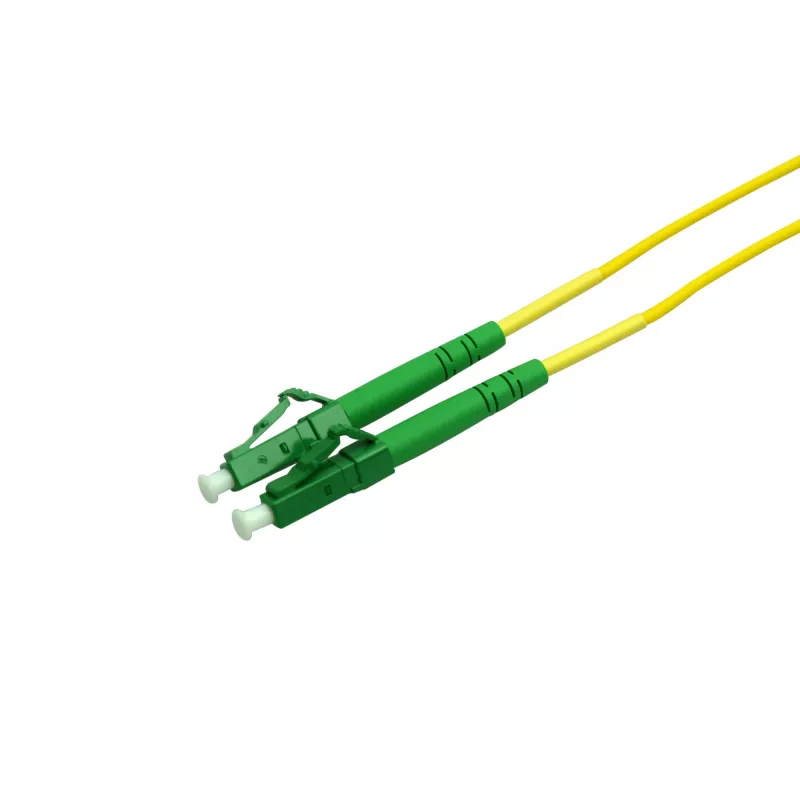

Cabo de fibra ótica Equip 255906 InfiniBand 10 m LC LC/APC amarelo

The Equip 255906 10m LC to LC/APC fibre optic cable is designed for single-mode, long-distance data transmission. With a 9 µm core diameter and OS2 compliance, this yellow, 10-metre cable provides consistent optical performance for network backbones and point-to-point links. The LC connector on one end and an LC/APC connector on the other allow connection between devices or patch panels that require angled physical contact on one side for improved return loss.

Advantages

The cable’s 9 µm single-mode core and OS2 specification support low attenuation and stable signal transmission over extended distances. The LC and LC/APC connectors reduce insertion loss and, with the APC end, improve back reflection performance where required. The yellow jacket provides standard colour coding for single-mode installations, simplifying identification and cable management in racks and patch panels.

Suitable for

• Long-distance single-mode fibre links in data centres and telecom networks
• Connecting equipment with LC ports to devices or panels requiring LC/APC
• Infrastructure requiring standard colour coding and easy identification
• Backbone cabling and point-to-point optical links

Key specifications

• Brand: EQUIP
• Model / MPN: 255906
• EAN: 4015867234167
• Length: 10 m
• Connector type: LC to LC/APC
• Core diameter: 9 µm
• Fibre type / Standard: OS2 (single-mode)
• Jacket colour: Yellow

How to use

Inspect connector end-faces for cleanliness before use and, if necessary, clean with an appropriate fibre cleaning tool. Carefully insert the LC connector into the transmitting equipment or patch panel port and the LC/APC connector into the receiving port, ensuring correct alignment and click engagement. Avoid sharp bends and excessive tension on the cable; maintain the manufacturer’s minimum bend radius for single-mode fibre during installation and routing. When disconnecting, release the connector latch and pull straight out to avoid damaging connector ferrules.

Recommendations

Store and handle the Equip 255906 cable in a dry environment, avoiding dust and mechanical stress. Use the yellow colour coding to segregate single-mode links from multimode runs and verify compatibility with linked equipment when mixing connector types.
