Cabo de fibra ótica Grafenthal OM3 LC/UPC-LC/UPC LSZH 5,00m Aqua Blue

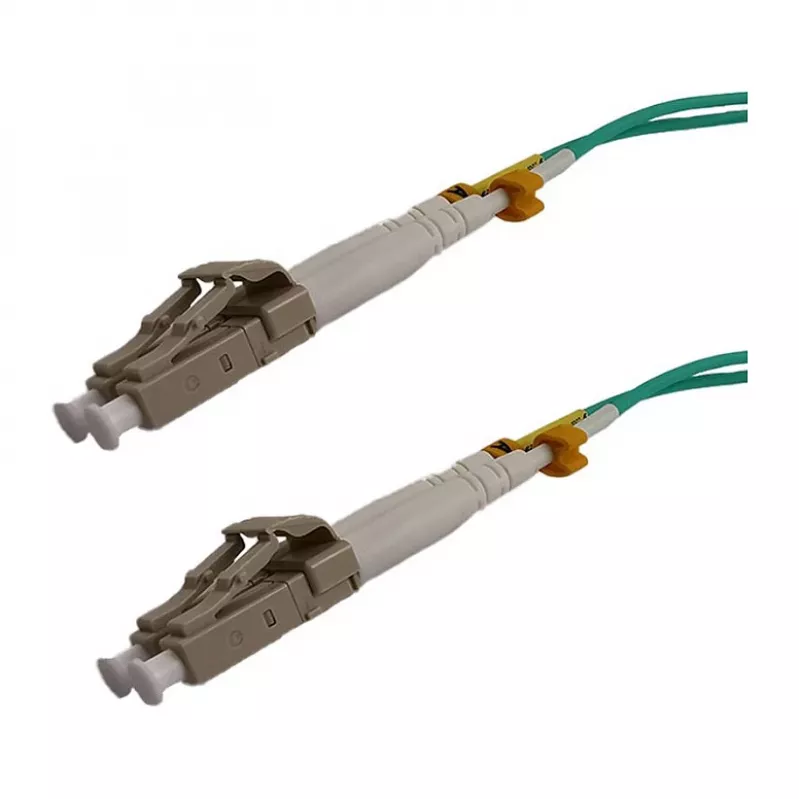

The Grafenthal Optical Fibre Cable OM3 LC/UPC-LC/UPC LSZH 5.00m Aqua Blue is a high-performance multimode duplex patch cable designed for reliable data transmission in data centers, storage area networks (SANs), local area networks (LANs), and fibre channel applications. With OM3 fibre rated for 10GbE, 40GbE, and 100GbE, this cable ensures optimal bandwidth and low insertion loss.

Advantages

This cable offers superior signal integrity with LC/UPC connectors polished to Ultra Physical Contact, ensuring low insertion loss (≤0.3 dB) and high return loss (≥30 dB). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic smoke and corrosive gases in case of fire. The aqua blue colour allows easy identification of OM3 fibre.

Suitable for

• Data centers requiring high-speed interconnects
• Storage area networks (SANs) and fibre channel
• Local area networks (LANs) with 10/40/100 Gigabit Ethernet
• Telecommunications and enterprise cabling

Key specifications

• Fibre Mode: Multimode
• Fibre Type: OM3
• Connector Type: LC/UPC to LC/UPC
• Connector Polish: UPC (Ultra Physical Contact)
• Cable Length: 5.0 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Aqua Blue
• Core/Cladding Diameter: 50/125 µm
• Number of Fibres: 2 (Duplex)
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Bandwidth (850nm): 1500 MHz·km
• Bandwidth (1300nm): 500 MHz·km
• Maximum Data Rate Support: 10GbE, 40GbE, 100GbE
• Operating Temperature: -20°C to +70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793, RoHS
• Minimum Bend Radius: 7.5 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-density patching environments where space and safety are critical.
