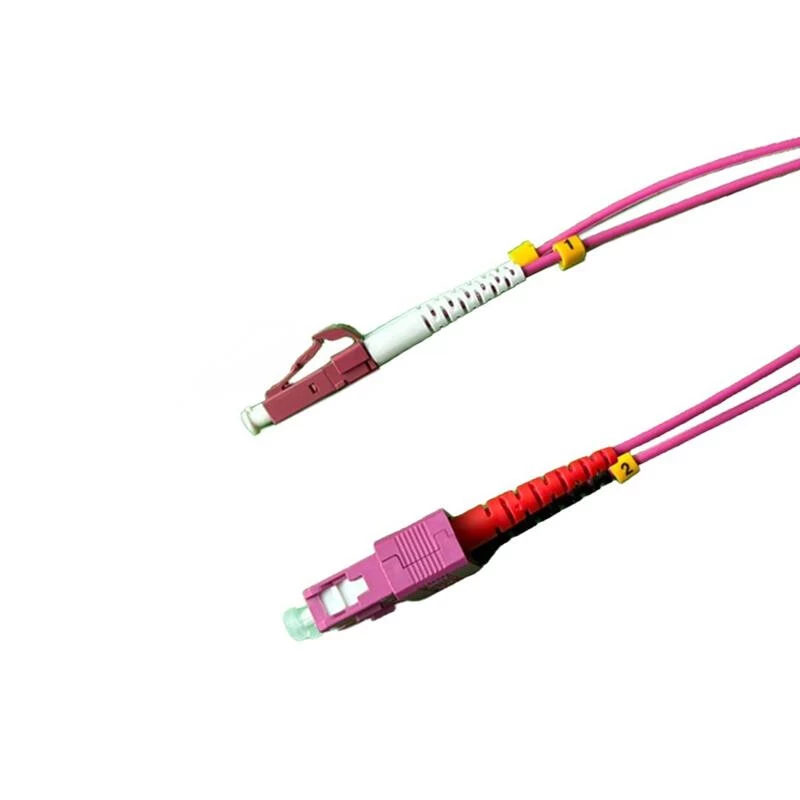

Cabo de fibra ótica Grafenthal OM4 LC/UPC-SC/UPC LSZH 1,00m violeta

The Grafenthal Optical Fibre Cable OM4 is a high-performance duplex multimode patch cable designed for reliable high-speed data transmission in data centers, enterprise networks, and telecommunications environments. With LC/UPC to SC/UPC connectors and a 1.00-meter length, this violet cable features a LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in confined spaces.

Advantages

This OM4 fibre cable supports high-bandwidth applications up to 100GbE, ensuring future-proof connectivity. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for indoor installations. Duplex design allows simultaneous bidirectional communication, and the violet colour aids in easy identification and cable management.

Suitable for

• Data center patching and backbone connections
• Enterprise network infrastructure
• Telecommunications and server rooms
• High-speed storage area networks (SAN)
• 10GbE, 40GbE, and 100GbE applications

Key specifications

• Fibre Type: OM4 Multimode (50/125 µm)
• Connectors: LC/UPC to SC/UPC
• Cable Configuration: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 1.0 Meter
• Cable Colour: Violet
• Insertion Loss: <0.3 dB (typical)
• Return Loss: >30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC interfaces. Pair with OM4-rated patch panels and transceivers for maximum bandwidth.
