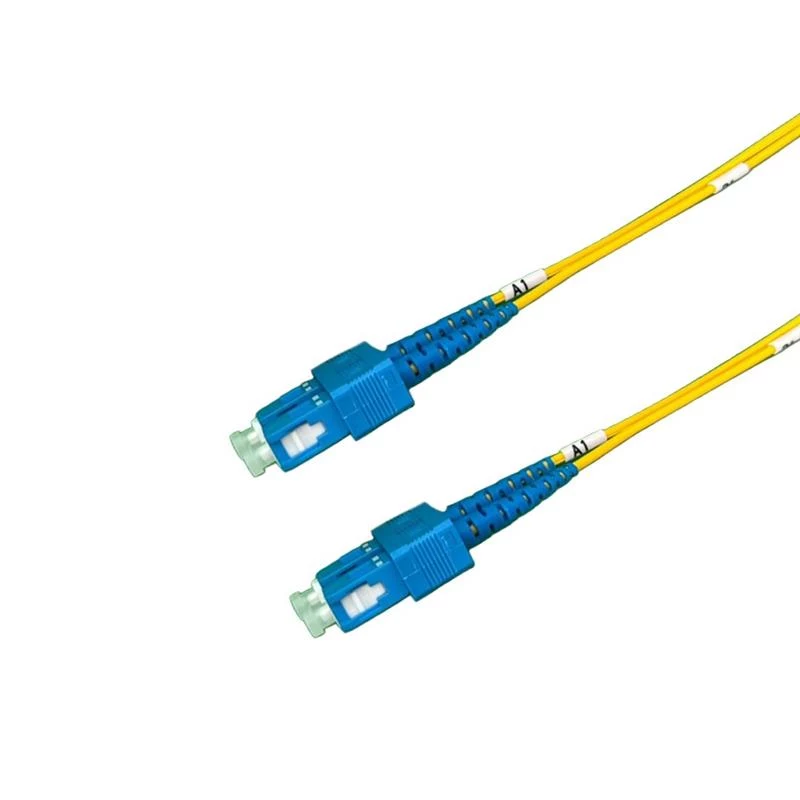

Cabo de fibra ótica Grafenthal OS2 SC/UPC-SC/UPC LSZH 1,00m amarelo

The Grafenthal Optical Fibre Cable OS2 SC/UPC-SC/UPC LSZH 1.00m Yellow is a high-performance single-mode duplex patch cable designed for reliable data transmission in demanding network environments. Engineered with precision, this cable ensures low insertion loss and high return loss, making it ideal for high-speed Ethernet, Fibre Channel, and data center interconnects.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, making it suitable for confined spaces. Its durable 3.0 mm diameter cable and ceramic ferrule connectors provide long-lasting performance.

Suitable for

• 1G/10G/40G/100G Ethernet networks
• Fibre Channel storage area networks
• Data center interconnects
• Telecommunications and enterprise cabling

Key specifications

• Fibre Type: OS2 Single-Mode
• Connector Type: SC/UPC to SC/UPC
• Cable Length: 1.0 meter (3.28 feet)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Yellow
• Fibre Core Diameter: 9 µm
• Fibre Cladding Diameter: 125 µm
• Cable Structure: Duplex
• Polish Type: UPC (Ultra Physical Contact)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 30 mm
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Ferrule Material: Ceramic
• Cable Diameter: 3.0 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/UPC ports and is ideal for short-distance patching in racks and cabinets.
