Cabo de fibra ótica InfiniBand BlueOptics X66205-10-BO 10 m MPO 4x LC

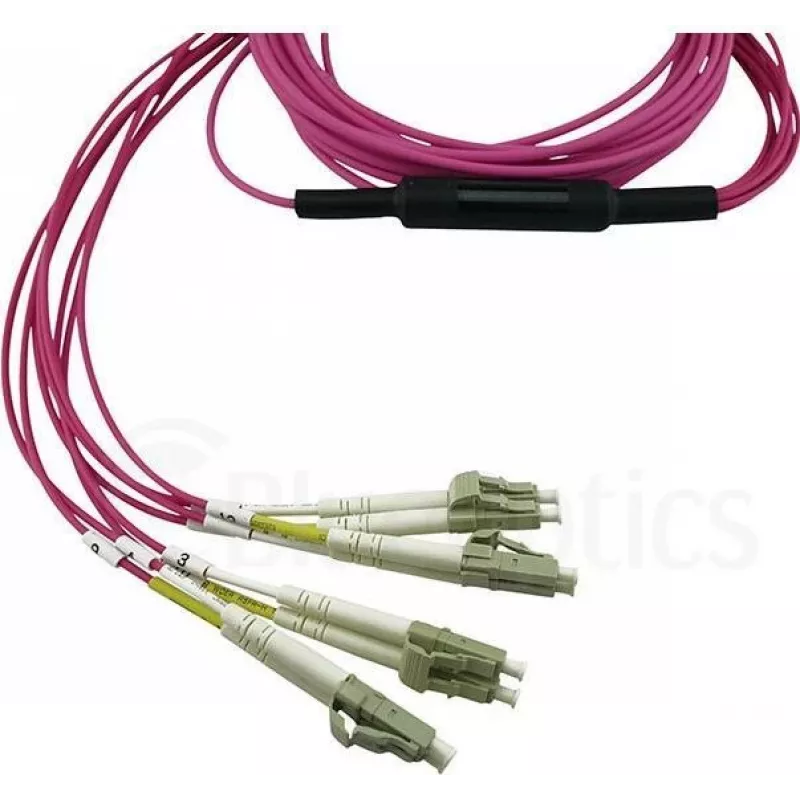

The BlueOptics X66205-10-BO InfiniBand fibre optic cable is a 10 m OM4 multimode patch cable with an MPO connector on one end and four LC duplex connectors on the other. Designed for full duplex InfiniBand and high-speed Ethernet links, this cable supports data centre and networking environments that require compact, multi-channel fibre connections. The cable uses laser-optimized OM4 fibre with a 125 µm core diameter and is sheathed in flame-retardant LSZH material.

Advantages

This MPO to 4x LC cable provides reliable high-density connectivity while minimising rack space and cable clutter. The OM4 multimode fibre delivers low attenuation and high return loss for stable, low-loss signal transmission over short and medium distances. BlueOptics uses branded fibre and precision connectors with zirconia ceramic ferrules to ensure consistent performance and durability up to many mating cycles. Each cable is factory-tested with interferometer and OTDR measurements and supplied with an input loss and return loss test report.

Suitable for

Key specifications

How to use

Route the 10 m MPO to 4×LC cable between the MPO-equipped trunk or patch panel and the target device or patch panel with LC ports. Align and engage the MPO connector carefully to the MPO adapter or module, ensuring proper key orientation to match polarity requirements. Connect each LC duplex plug to the corresponding LC receptacles, taking care not to bend the fibre beyond its minimum bend radius. Verify connections using your network equipment diagnostics or optical loss test equipment and reference the supplied test protocol for the measured input and return loss values.

Recommendations

Store and handle the cable to avoid tight bends and sharp kinks; maintain bend radius recommendations from the manufacturer. Use MPO adapters and LC adapters of matching polish and quality to minimise insertion loss. For critical links, verify end-to-end loss with an OTDR or power meter after installation and keep the supplied measurement protocol for record-keeping and troubleshooting.
