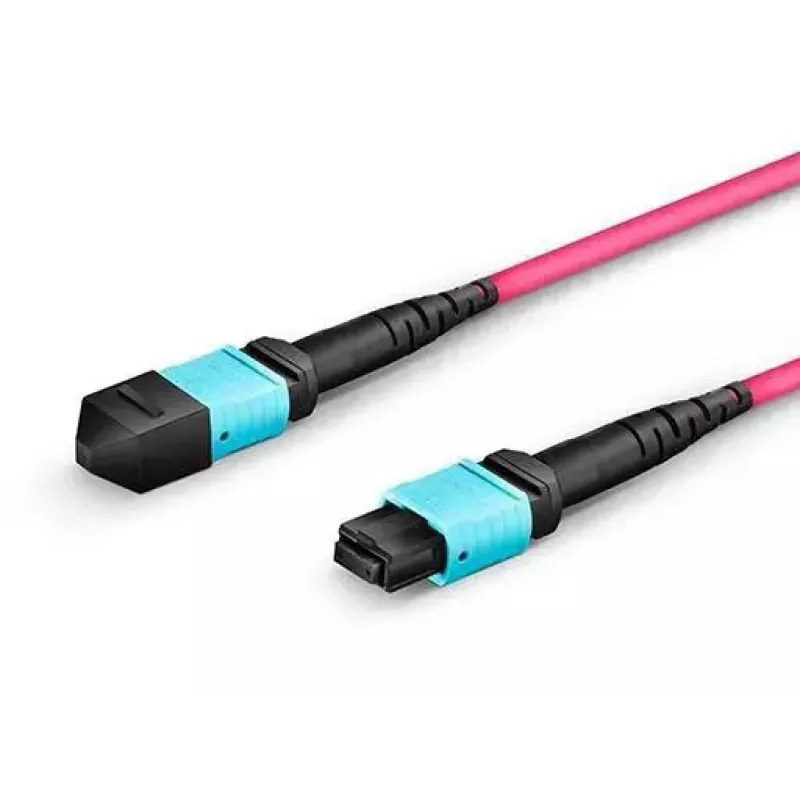

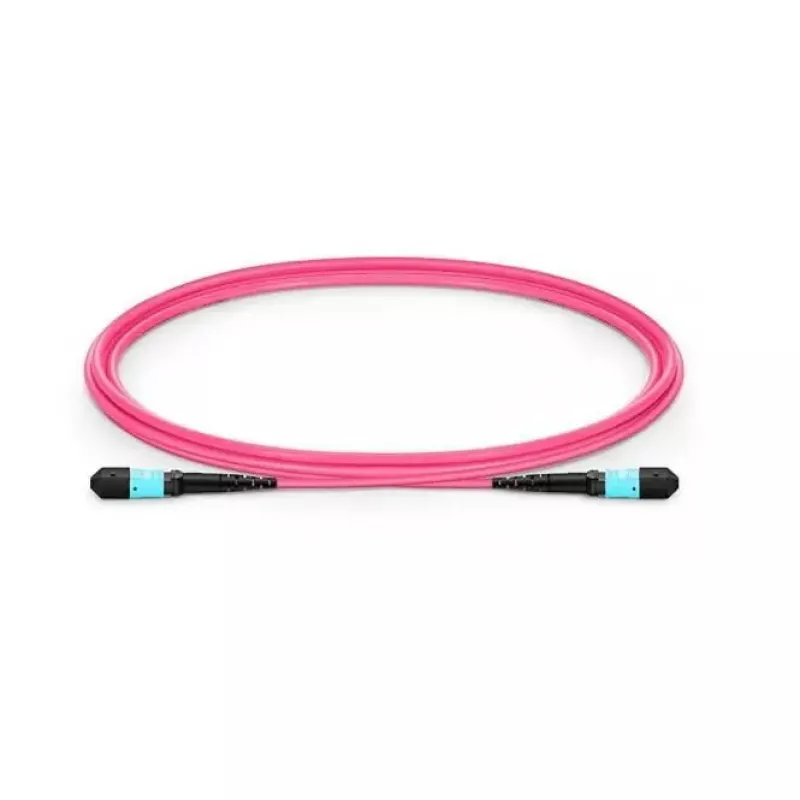

Cabo de fibra ótica InfiniBand Lanview LVO230415-MTP 15 m violeta

The Lanview LVO230415-MTP is a 15 m OM4 multimode fibre optic patch cord with MTP connectors on both ends. With a 50/125 µm core/cladding specification and violet jacket, this cable is designed for high-speed data transmission in data centres and enterprise networks, supporting 10G, 40G and 100G Ethernet links and compatible transceivers such as 10G SR, 40G BIDI SR, QSFP+ and SFP+.

Advantages

This OM4 MTP fibre cable offers high bandwidth and reduced modal dispersion for reliable performance over short to medium distances. The MTP connectors enable high-density, multi-fibre connections and full-duplex transmission. The LSZH-style jacket reduces smoke and toxic gas in case of fire and the cable conforms to common industry standards (Telcordia, EIA/TIA, IEC) for interoperability.

Suitable for (tasks / use cases)

• Data centre backbone and cross-connects
• High-speed server and switch interconnects (10G/40G/100G)
• Connections to QSFP+ and SFP+ transceivers
• High-density patch panels and MPO/MTP trunks

Key specifications

• Model: Lanview LVO230415-MTP
• Cable type: OM4 multimode fibre, 50/125 µm
• Length: 15 m
• Connectors: MTP to MTP
• Colour: Violet
• Weight: 0.044 kg
• Standards: Telcordia, EIA/TIA, IEC compliant (as applicable)

How to use

Route the MTP patch cord between compatible MTP/MPO ports on switches, transceivers or patch panels. Ensure connector endfaces are clean and free of dust or damage before mating; use appropriate cleaning tools and inspection equipment. Insert the MTP connectors firmly into the device ports until the latch engages. Avoid tight bends and secure the cable to prevent strain on the connectors.

Recommendations

Store and handle the OM4 fibre cable following industry best practices: keep bend radius above manufacturer limits, perform endface inspection/cleaning before each connection, and use appropriate patch-panel management to maintain performance and longevity.
