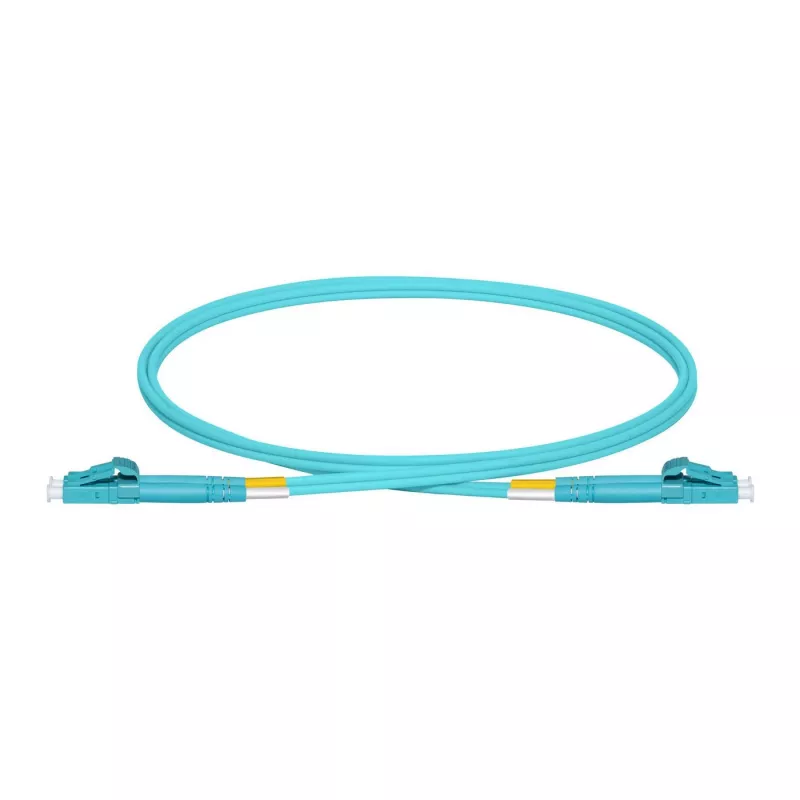

Cabo de fibra ótica/InfiniBand Lanview LVO231471 5 m 2x LC cor aqua

The Lanview LVO231471 is a 5 m fibre optic cable with two LC connectors and OM3 multimode 50/125 µm core. It is designed for full duplex transmission and supports high-speed Ethernet links such as 10G SR, 10G LRM, and SFP+ transceivers for 10G/40G/100G connections. The cable uses LSZH jacket material and comes in aqua colour.

Advantages

The OM3 50/125 µm multimode fibre is bend-insensitive, exhibiting lower attenuation when bent or twisted compared with traditional multimode cables, which simplifies installation and maintenance. Using LSZH-rated cable improves safety in confined spaces by reducing smoke and toxic gas emissions in case of fire. The LC to LC duplex termination provides compact, reliable connections commonly used in data centres and telecom racks.

Suitable for

• 10G SR and 10G LRM links
• SFP+ transceiver connections
• 40G and 100G Ethernet using parallel multimode setups
• Data centre patching and server-to-switch links

Key specifications

• Type: Multimode OM3 fibre, 50/125 µm

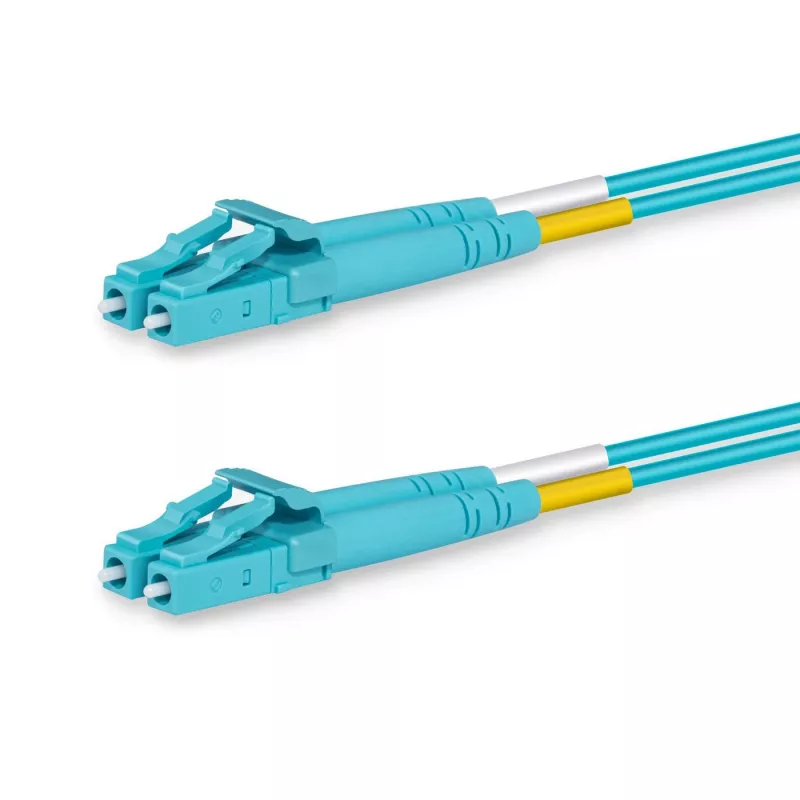

• Connectors: 2x LC to 2x LC (duplex)
• Length: 5 m
• Jacket: LSZH
• Colour: Aqua
• Weight: 0.04 kg

How to use

Route the LC duplex cable between compatible transceivers or LC ports, ensuring correct polarity for transmit and receive pairs. Avoid sharp bends and secure the cable with appropriate cable management to maintain minimum bend radius. Use clean connector end faces and inspect or clean with fibre cleaning tools before mating to ensure optimal signal performance.

Recommendations

Prefer OM3 multimode for short- to medium-range 10G applications and ensure LSZH cable is specified where low-smoke, zero-halogen properties are required. For best performance, follow manufacturer guidelines for minimum bend radius and connector cleaning.
