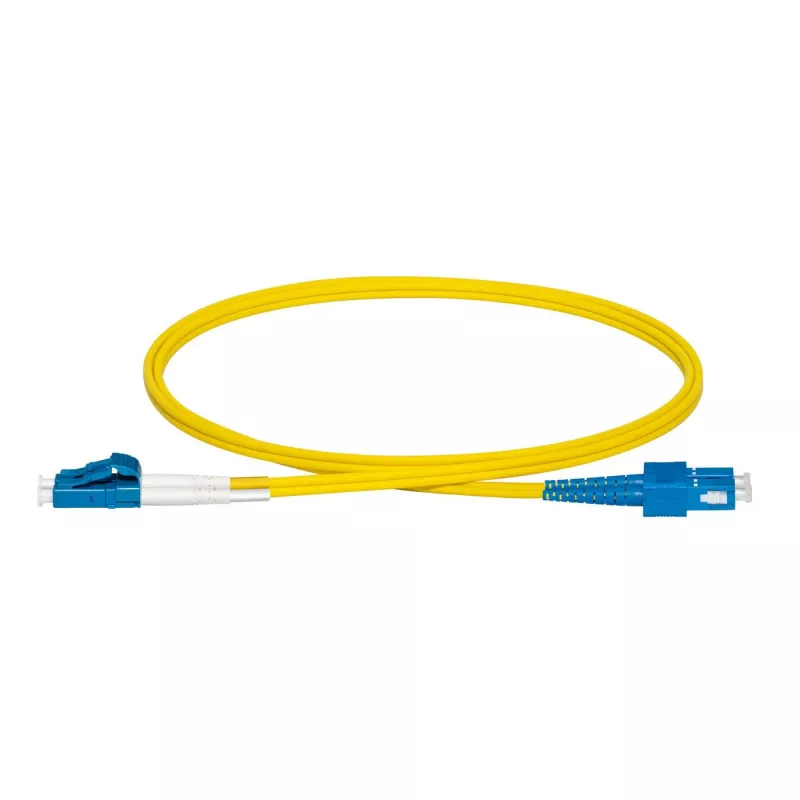

Cabo de fibra ótica/InfiniBand Lanview LVO231492 2 m 2x LC 2x SC amarelo

The Lanview LVO231492 is a 2 m single mode fibre optic cable with 2x LC to 2x SC connectors, OS2 specification and a 9 µm core diameter. Designed for full-duplex data transmission, this yellow patch cord is intended for enterprise networks, telecom rooms, server farms and cloud storage networks where reliable fibre jumper cables are required. It supports 1G/10G/40G/100G Ethernet links and provides optical reach up to 10 km at 1310 nm or up to 40 km at 1550 nm. The cable uses LSZH jacket material and meets common industry standards such as IEC, EIA/TIA or Telcordia.

Advantages

The Lanview LVO231492 offers a standardized OS2 single mode design with low-loss 9 µm core performance and full-duplex 2x LC to 2x SC connectivity for easy integration into mixed-connector infrastructures. Its LSZH jacket reduces smoke and toxic emissions in case of fire, and the yellow colour improves visibility and identification in cabling trays and racks. The specified reach at 1310 nm and 1550 nm supports a range of short and long distance network applications.

Suitable for

• Enterprise network backbone links
• Telecom rooms and patch panels
• Server farms and data centre uplinks
• Cloud storage and SAN connections
• 1G/10G/40G/100G Ethernet interconnects

Key specifications

• Model: Lanview LVO231492
• Length: 2 m

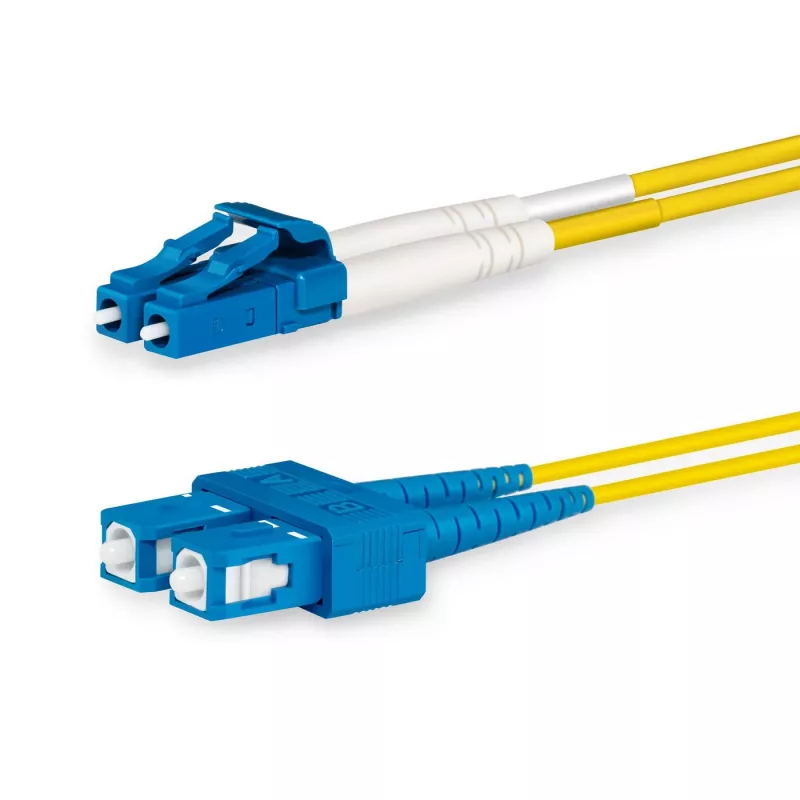

• Connectors: 2x LC — 2x SC (full duplex)
• Fiber type: Single mode OS2, 9 µm core
• Jacket: LSZH
• Colour: Yellow
• Optical reach: up to 10 km @ 1310 nm; up to 40 km @ 1550 nm
• Weight: 0.032 kg
• Standards: IEC, EIA/TIA, Telcordia (where applicable)

How to use

Route the Lanview LVO231492 patch cord between corresponding LC and SC ports on transceivers, patch panels or network devices, ensuring correct polarity for full-duplex links. Avoid tight bends and secure the cable in trays or with cable management to maintain minimum bend radius. Verify connector cleanliness before insertion and test the optical link after installation to confirm loss and connectivity meet network requirements.

Recommendations

For best performance, keep connectors clean using appropriate fibre cleaning tools, respect the manufacturer’s minimum bend radius, and use the cable for links within the specified wavelength reach (10 km at 1310 nm, 40 km at 1550 nm). Store and handle the LSZH cable to prevent mechanical damage.
