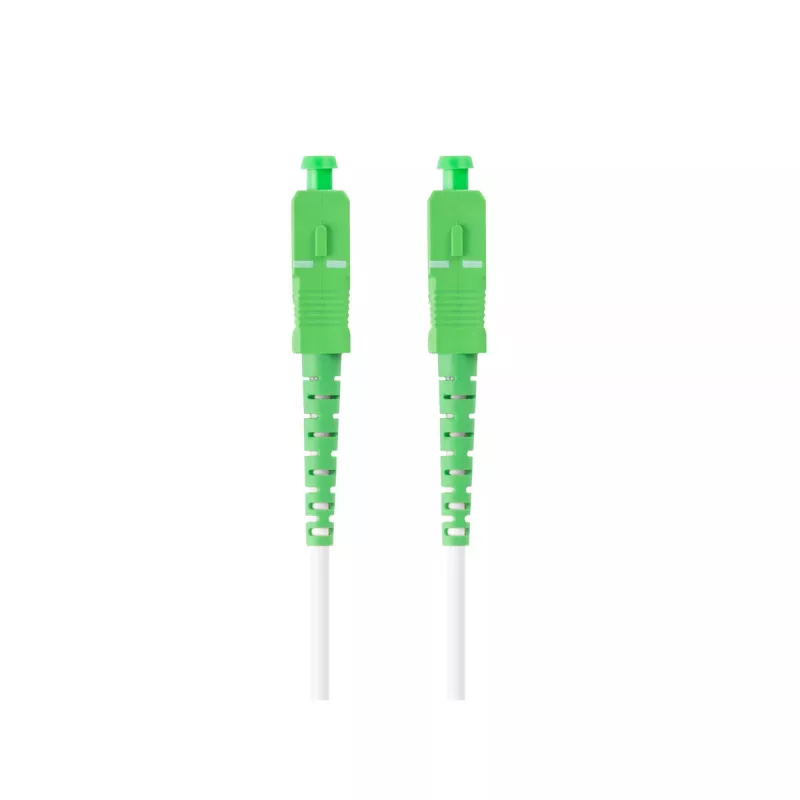

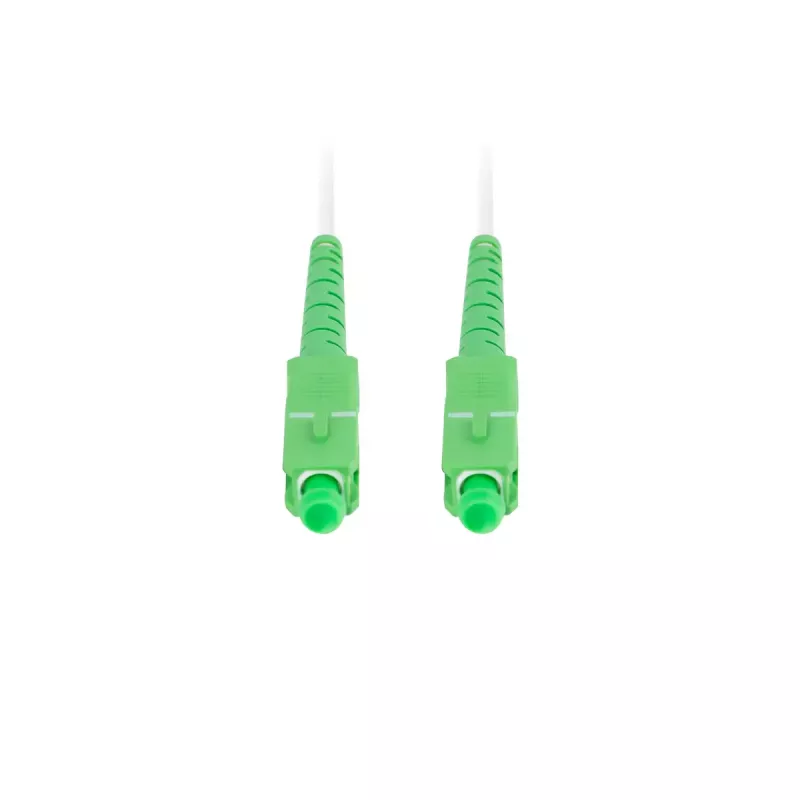

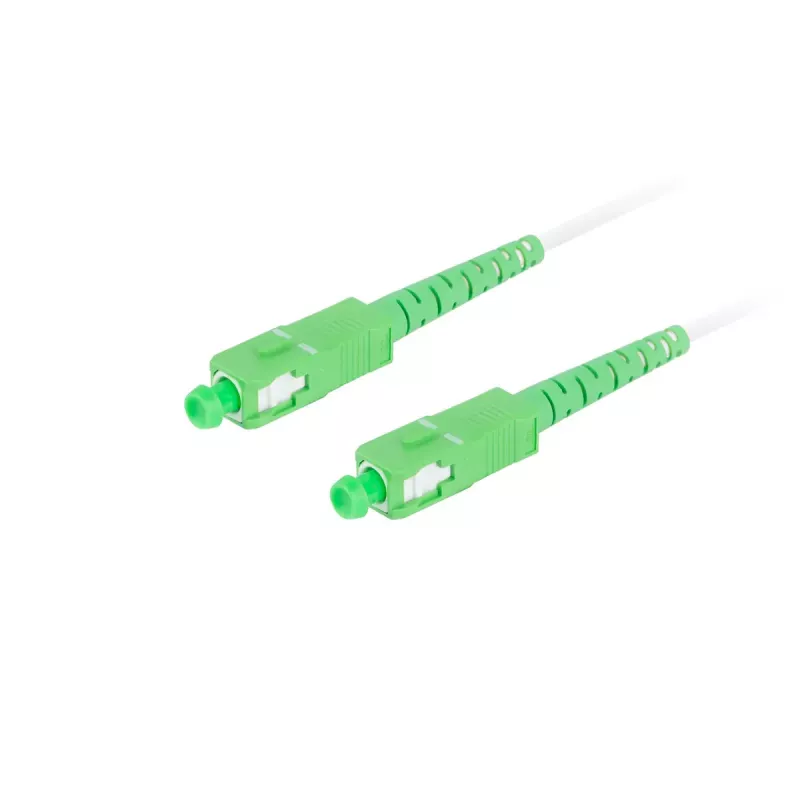

Cabo de fibra ótica LANBERG FO-SASA-SS21-0050-WH SC–SC 5 m G.657.A2 125 µm (branco/verde)

LANBERG FO-SASA-SS21-0050-WH is a 5 m single-mode fibre optic patch cable with SC connectors on both ends. The cable uses G.657.A2 fibre with a 9/125 µm diameter, LSZH white jacket and green connector boots for easy identification. Its SIMPLEX construction and 3.0 mm cable diameter make it suitable for in-building and data-centre links where low insertion loss and bend-insensitive performance are required.

Advantages

The cable provides low insertion loss (< 0.25 dB) and high return loss (> 60 dB) thanks to APC-polished SC connectors. G.657.A2 fibre ensures improved bend resistance with a minimum bend radius of 8 mm, and the LSZH coating reduces smoke and toxic gas emission in case of fire. Operating temperature range from -40 to 85 °C supports use in varied indoor environments.

Suitable for

• Data centre patching and fibre patch panels
• Telecommunications and carrier links
• In-building fibre backbone and horizontal connections
• Environments requiring low-smoke zero-halogen cabling

Key specifications

• Connector type: SC–SC (APC polish)
• Fibre type: G.657.A2 single-mode (9/125 µm)
• Cable construction: SIMPLEX, diameter 3.0 mm, LSZH jacket
• Length: 5 m
• Insertion loss: < 0.25 dB
• Return loss: > 60 dB
• Operating temperature: -40 – 85 °C
• Minimum bend radius: 8 mm
• Colour: white jacket with green boots

How to use

Inspect connectors and ports for dust before connecting. Align SC APC connectors and push into the corresponding SC ports until they click; avoid excessive force and sharp bending near the connector. For best performance, route the cable respecting the minimum bend radius (8 mm) and secure it to prevent strain on the connectors.

Recommendations

Store the cable coiled without tight loops, keep protective caps on unused connectors, and clean connector end-faces with appropriate fibre cleaning tools before deployment to maintain low insertion and return loss.
