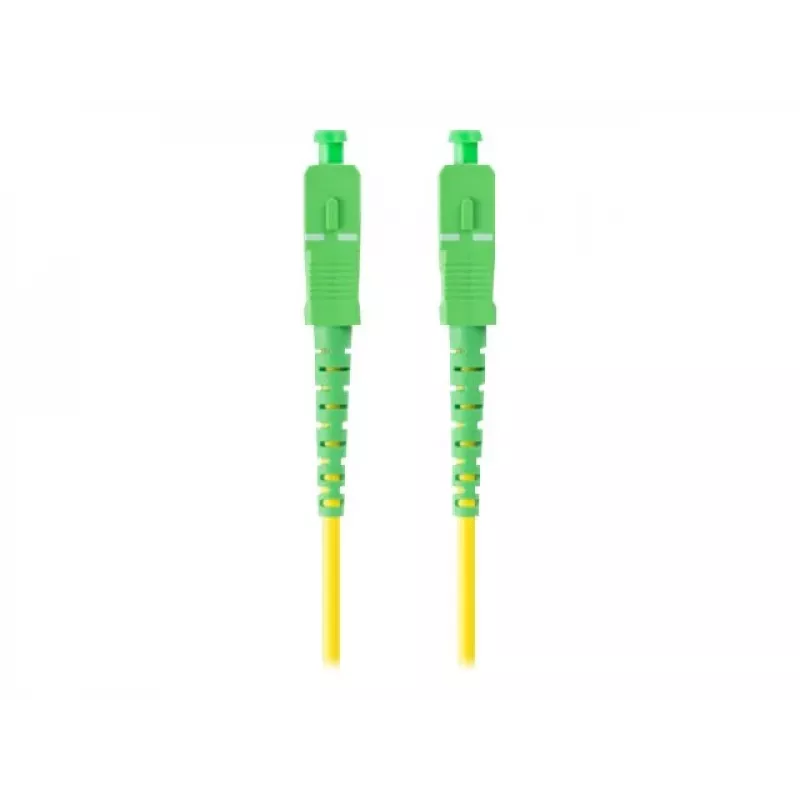

Cabo de fibra ótica LANBERG SM SC/APC-SC/APC Simplex G.657.A1 1m amarelo

In a busy data center, a network technician needs a reliable fiber optic link between a fiber distribution panel and an optical switch. The LANBERG FO-SASA-SS11-0010-YE patch cord delivers that connection with single-mode SC/APC connectors on both ends, ensuring low insertion loss and high return loss for stable signal transmission. Its 1-meter length is ideal for patching within racks or between adjacent equipment, while the yellow LSZH jacket provides easy identification and safety in case of fire.

Key specifications

• Fiber type: Single-mode (SM) G.657.A1 (OS2)
• Connectors: SC/APC to SC/APC, simplex configuration
• Length: 1 meter
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 60 dB
• Jacket material: LSZH (Low Smoke Zero Halogen), yellow
• Cable diameter: 3.0 mm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE

Why choose it

This patch cord is built for performance and durability. The APC (Angled Physical Contact) polish minimizes back reflections, making it suitable for high-speed networks and analog video. The G.657.A1 fiber offers a tight bend radius of 10 mm, allowing flexible routing in crowded enclosures without signal degradation. The LSZH jacket emits low smoke and no halogen when exposed to fire, enhancing safety in enclosed spaces. With 500 mating cycles, it withstands frequent reconnections.

Ideal use cases

• Fiber-to-the-home (FTTH) installations
• Data center interconnects between patch panels and equipment
• Telecommunications rooms and campus networks
• Test and measurement setups

Good to know

Supports tight bend radius of 10 mm for flexible routing. Storage temperature range: -40°C to +85°C. Fiber core diameter: 9 µm, cladding diameter: 125 µm.
