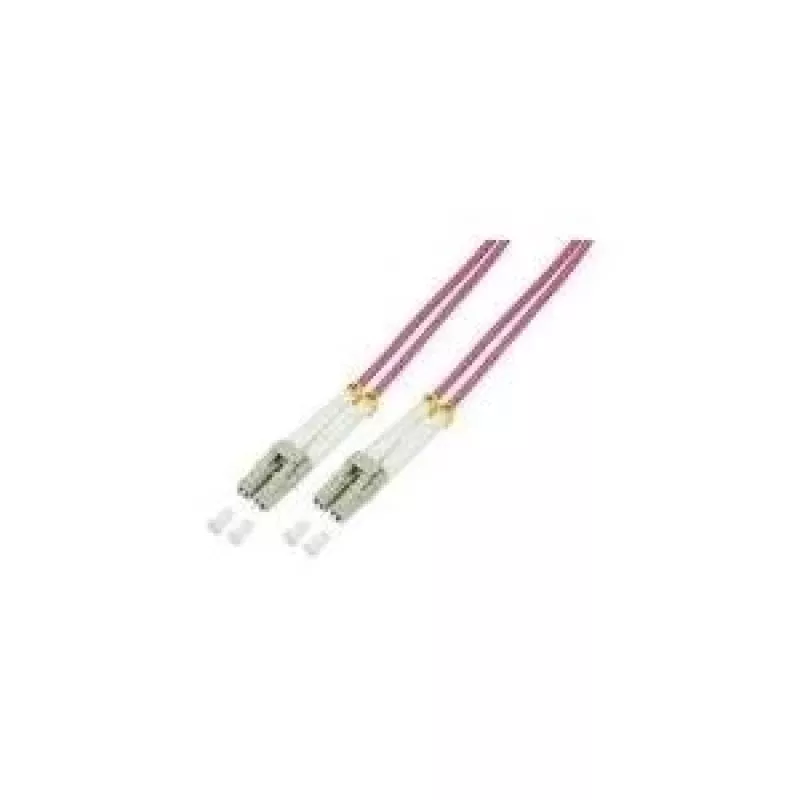

Cabo de fibra ótica LogiLink 3 m LC - LC OM4 violeta

The LogiLink 3m LC - LC OM4 fibre optic cable is a duplex multimode jumper designed for high-speed data transmission. Featuring OM4 I-VH 50/125 µm fibres and a 3.0 mm LSZH jacket in violet, the cable supports full-duplex links up to 40 Gbit/s over distances up to 125 m. Each cable is supplied with a measurement protocol and conforms to DIN EN 50173-1 and IEC/ISO 11801 standards.

Advantages

OM4 multimode fibres provide higher bandwidth and extended reach for 40 Gbit/s applications compared with lower graded multimode types. The LSZH (low smoke zero halogen) jacket reduces hazardous emissions in case of fire and the 3.0 mm diameter gives good mechanical protection while remaining flexible. Supplied measurement protocol documents cable performance and standards compliance.

Suitable for

• Data center uplinks and server-to-switch connections
• High-speed Ethernet links up to 40 Gbit/s within buildings
• Multimode optical networks and storage area networks (SAN)

Key specifications

• Connector type: LC – LC duplex
• Fibre type: OM4 I-VH multimode, 50/125 µm
• Jacket: LSZH, violet, Ø 3.0 mm
• Length: 3 m
• Application range: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Documentation: measurement protocol included

How to use

Route the duplex LC–LC cable between LC ports on active equipment, observing correct polarity for full-duplex transmission. Avoid tight bends and sharp kinks; maintain the minimum bend radius recommended by the equipment or fibre manufacturer. Plug LC connectors fully into the receptacles until they click to ensure proper seating and optical contact.

Recommendations

For stable 40 Gbit/s links, use compatible transceivers and ensure patch panels, adapters and connectors are clean and free of dust. Store unused cable ends with protective caps and perform fibre inspection and testing using the supplied measurement protocol after installation.
