Cabo de fibra ótica ROLINE 21.15.9501, OS2 monomodo, E-2000 (LSH) para E-2000 (LSH), 1 m, amarelo, 9 µm, duplex integral

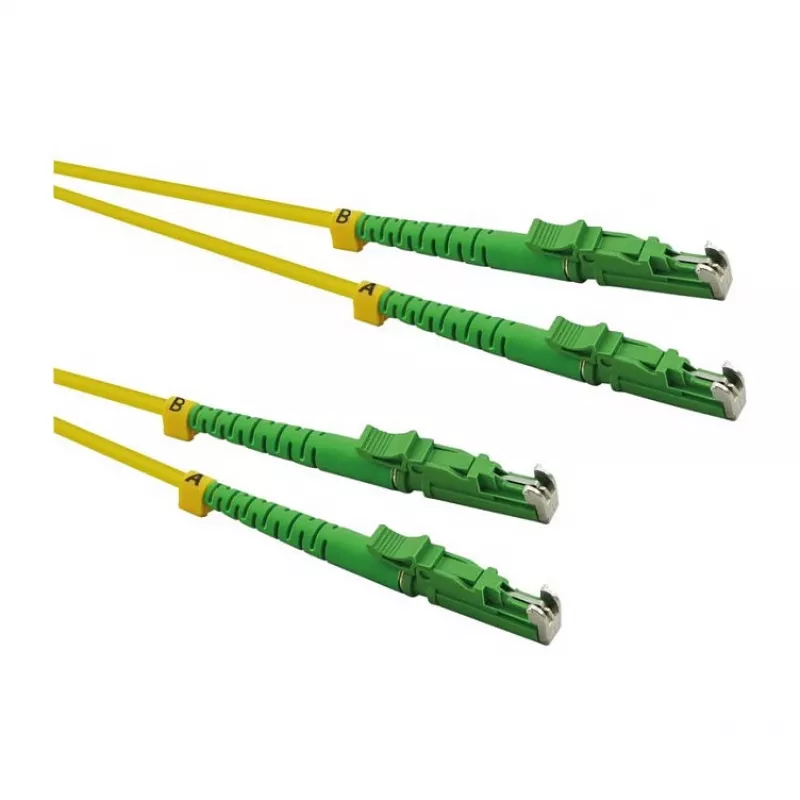

ROLINE 21.15.9501 is a 1 m OS2 singlemode fibre optic cable with E-2000 (LSH) connectors on both ends. Designed for full-duplex optical transmission, this yellow 9 µm cable provides a compact, single-fibre solution for linking optical devices and patch panels where E-2000 interfaces are specified. Both connectors feature the secured LSH (Locking Sleeve Housing) design and APC polished end faces to ensure stable low-reflection connections in high-speed networks.

Advantages

The E-2000 (LSH) to E-2000 (LSH) configuration offers reliable mechanical retention and easy plug/unplug operation while maintaining optical performance. OS2 singlemode construction with a 9 µm core minimises attenuation over longer runs and supports high-bandwidth signals. APC polishing on both connector end faces reduces return loss for improved signal integrity. The 1 m length and standard yellow jacket allow straightforward identification and tidy routing in racks and cabling infrastructure.

Suitable for

• Data centre patching between E-2000 equipped panels and transceivers
• Interconnecting optical equipment in telecom and enterprise networks
• Backbone and distribution cabling in singlemode installations
• Testing and short-reach lab connections requiring APC E-2000 interfaces

Key specifications

• Fibre type: OS2 singlemode
• Core diameter: 9 µm
• Connector type: E-2000 (LSH) to E-2000 (LSH)
• Connector polish: APC on both end faces
• Transmission: full-duplex
• Cable length: 1 m
• Jacket colour: yellow

How to use

Inspect connector end faces for cleanliness before use and remove protective caps only when making a connection. Align and insert the E-2000 (LSH) connector into the matching adapter or transceiver port until the locking sleeve engages. For full-duplex links, ensure transmit and receive channels are correctly crossed or paired according to equipment labelling. After installation, secure the cable to provide strain relief and avoid tight bends that exceed the minimum bend radius for singlemode fibre.

Recommendations

Use appropriate fibre cleaning tools to maintain APC end-face quality and perform optical power and return loss tests after installation to verify link performance. Store with protective caps when not connected and avoid excessive bending or tensile load to preserve long-term signal reliability.
