Cabo de instalação de rede DSIT DANICOM CAT6A S/FTP 50m LSZH Fca

Running high-speed networks in offices, data centers, or industrial buildings often means dealing with cables that are either too slow, too stiff, or unsafe in a fire. The DSIT DANICOM CAT6A S/FTP 50m LSZH Fca cable solves these problems by combining 10 Gigabit performance, flexible installation, and low-smoke zero-halogen safety in one reel.

Who is it for

This bulk cable is built for professional installers, IT technicians, and network engineers who need to run permanent links in walls, ceilings, or conduits. It is equally suited for structured cabling in commercial buildings, server rooms, and any indoor environment where fire safety regulations demand LSZH jacketing.

Main features

• CAT6A performance: supports 10GBASE-T up to 500 MHz bandwidth for future-proof networking.

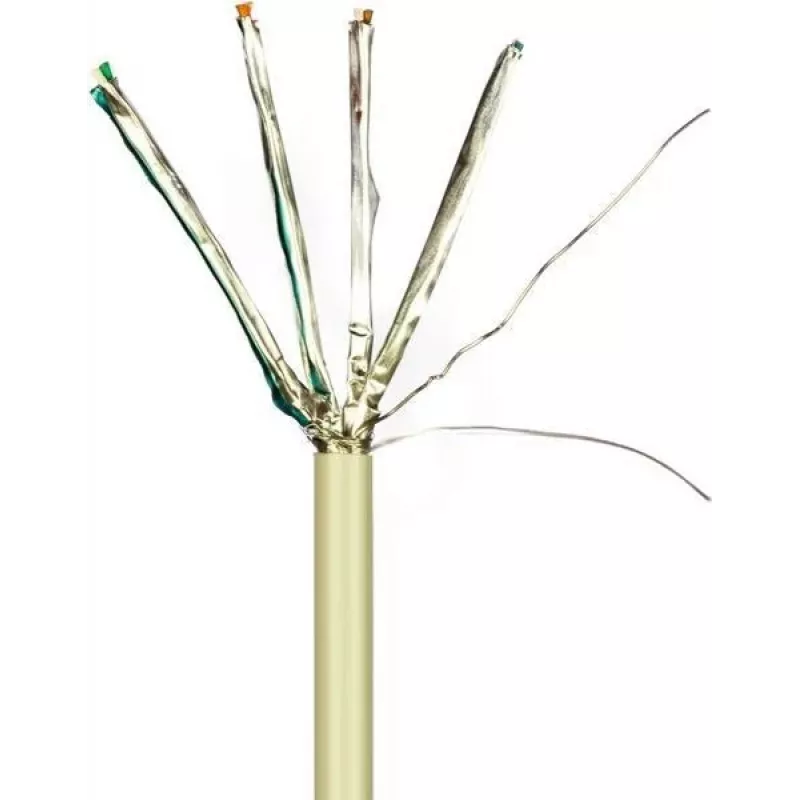

• S/FTP shielding: each pair is foiled and the whole cable is braided, giving excellent protection against alien crosstalk and EMI.
• LSZH jacket: low smoke and zero halogen, reducing toxic fumes and smoke in case of fire.
• CPR Euroclass Fca: meets European fire reaction requirements for cables.
• Solid copper conductors: ideal for permanent installation, not for frequent flexing.
• 50-meter reel: convenient length for medium runs without excessive waste.
• No connectors: bulk cable ready to be terminated with RJ45 plugs or keystone jacks as needed.

Specifications

• Category: CAT6A (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR fire rating: Fca
• Length: 50 meters
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor type: Solid copper
• Number of pairs: 4
• Impedance: 100 Ohm
• Application: Indoor
• Connectors: None (bulk cable)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Packaging: Reel/Box

Tips

For best performance, maintain the twist rate of each pair up to the termination point and use shielded RJ45 connectors or keystone jacks to preserve the S/FTP shielding. Avoid sharp bends; respect the minimum bend radius specified by the manufacturer. When installing in plenum spaces, verify local fire codes for additional requirements beyond CPR Fca.
