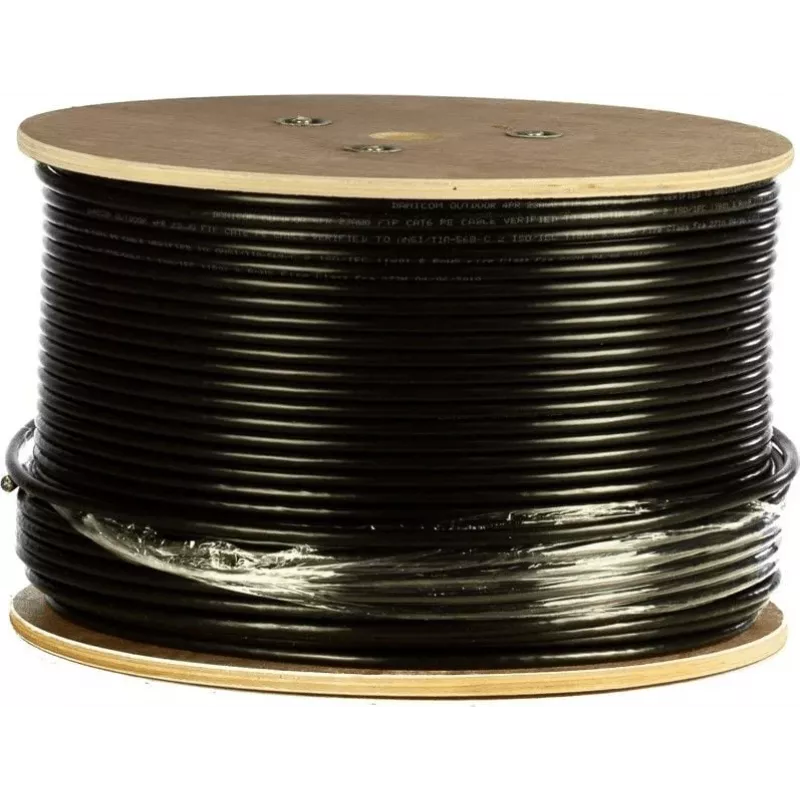

Cabo de instalação exterior DSIT CAT7 S/FTP 305m, condutor maciço, bainha PE, Fca, duplamente blindado, 10 Gbit/s, preto

Standard patch cables struggle with long outdoor runs, but this DSIT CAT7 S/FTP installation cable is built for permanent, high-performance links in demanding environments. Its double-shielded construction pairs individually foiled twisted pairs with an overall braided screen, delivering superior protection against EMI and alien crosstalk. The solid bare-copper conductors and rugged PE jacket ensure reliable 10 Gigabit Ethernet over distances up to 100 metres per segment, even when exposed to weather or buried directly.

Highlights

• CAT7 S/FTP construction: individually foiled pairs plus an overall braided screen for superior EMI/RFI rejection
• Solid AWG23 bare copper conductors ensure low-loss transmission and reliable PoE/PoE+ performance
• 600 MHz bandwidth and 10GBASE-T compliance for high-speed networking
• Outdoor-rated PE (Polyethylene) jacket: UV-resistant, waterproof, and weatherproof for direct burial or exposed runs
• Euroclass Fca fire rating for construction products
• Supplied on a 305 m (1000 ft) reel for professional installations

In daily use

This cable is intended for fixed outdoor and indoor installations where a durable, high-performance link is required. The double shielding minimises alien crosstalk and electromagnetic interference, making it suitable for industrial environments, campus networks, and long horizontal or backbone runs. The solid conductors and robust jacket withstand the rigours of installation and long-term exposure.

Full specifications

• Cable Type: Installation Cable
• Cable Category: CAT7
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Type: Solid Conductor
• Conductor Material: Bare Copper
• Conductor Gauge: AWG23
• Length: 305 meters (1000 ft)
• Jacket Material: PE (Polyethylene)
• Application Environment: Outdoor
• Max Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 600 MHz
• Fire Rating (Euroclass): Fca
• Colour: Black
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• UV Resistant: Yes
• Waterproof/Weatherproof: Yes
• Halogen Free: No
• RoHS Compliant: Yes
• Packaging: Wooden/Plastic Reel

Final note

For installers and network professionals, this DSIT CAT7 cable offers the shielding, weather resistance, and performance needed for reliable outdoor and industrial Ethernet links.
