Cabo de instalação LogiLink Cat.7 600 MHz 23 AWG CCA, S/FTP 10 m, laranja

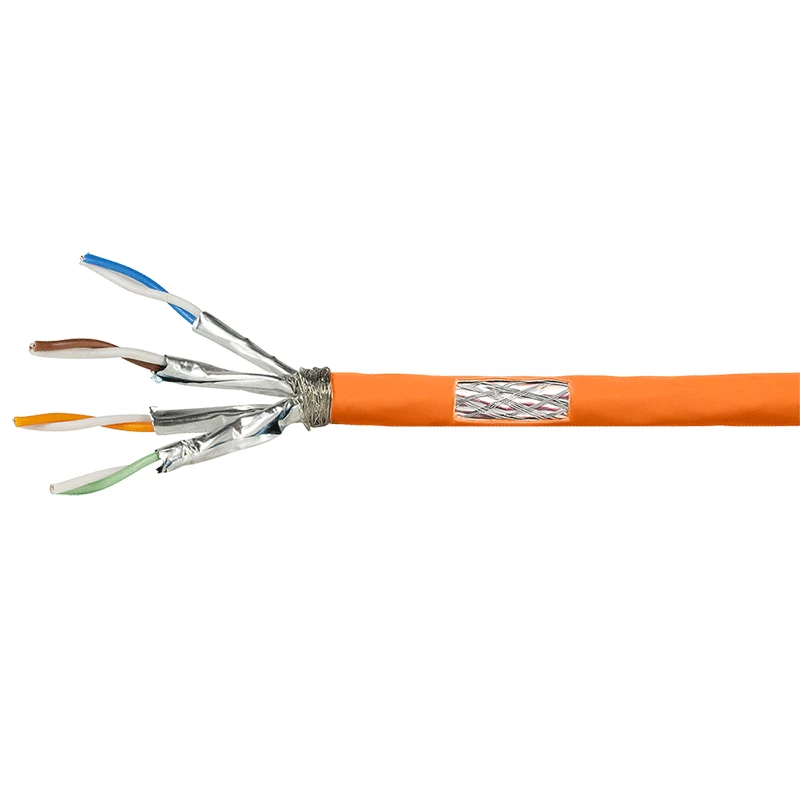

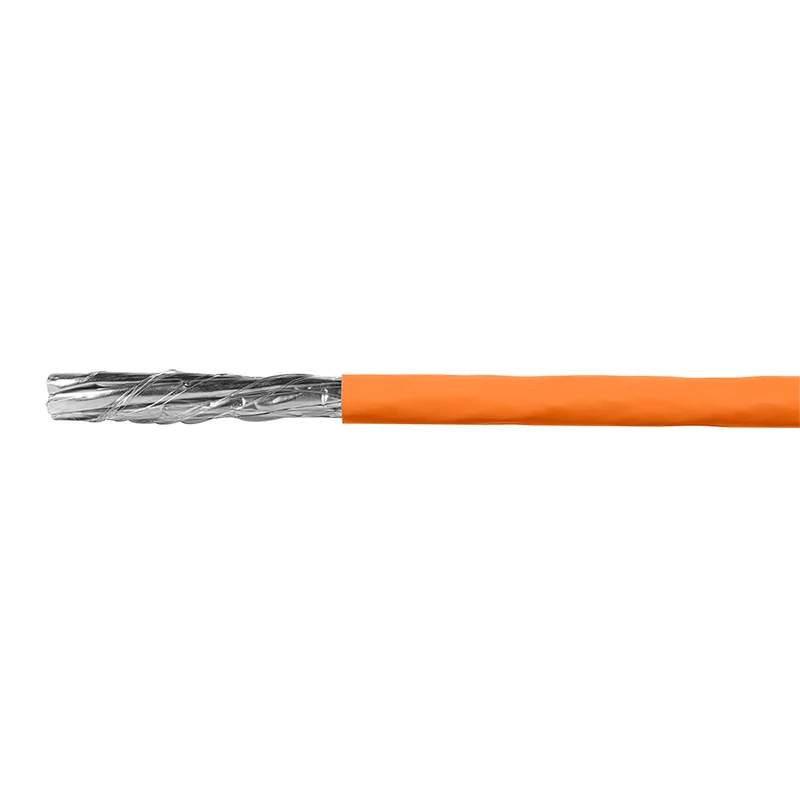

When routing network cabling through conduits, walls, or cable trays in an office building or industrial facility, this LogiLink Cat.7 Installation Cable delivers the performance and durability you need. The 10-metre orange cable is built for permanent installation and high-speed data transmission, supporting frequencies up to 600 MHz. Its S/FTP shielding—overall braid plus individual foil on each pair—provides excellent protection against electromagnetic interference, making it suitable for environments with high electrical noise. The solid 23 AWG copper-clad aluminum conductors ensure reliable signal integrity over longer runs, while the rugged PVC jacket withstands the rigours of installation. Setting up a new network segment or upgrading existing infrastructure, this cable meets the demands of modern structured cabling systems.

Key specifications

• Cable type: Cat.7

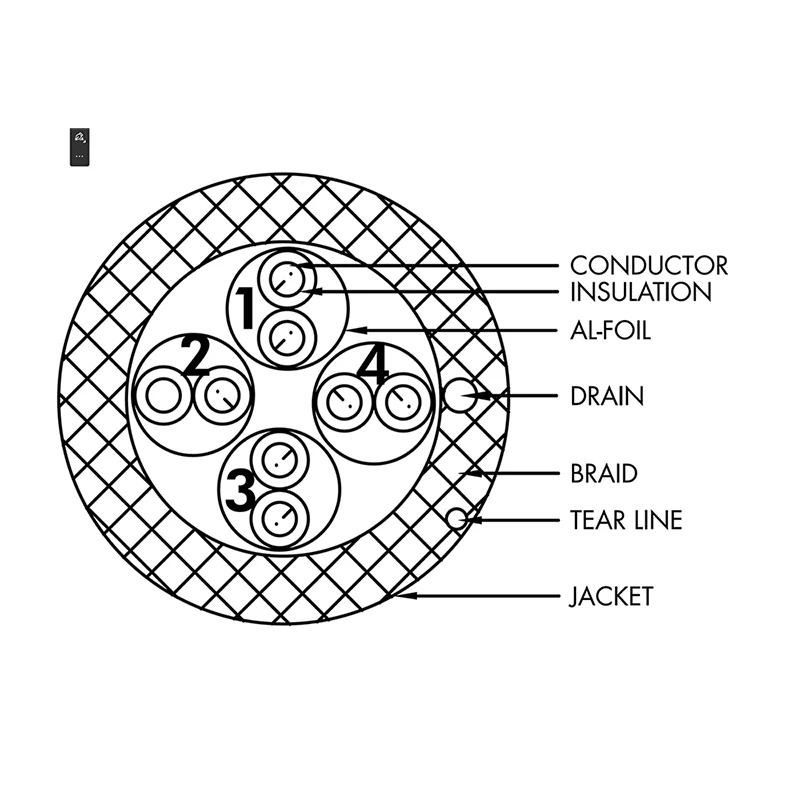

• Shielding: S/FTP (overall braid, pairs in metal foil)
• Frequency bandwidth: 600 MHz
• Conductor material: CCA (copper clad aluminum)
• Wire gauge: 23 AWG
• Number of pairs: 4
• Conductor construction: Solid
• Jacket material: PVC
• Outer diameter: approx. 7.5 mm
• Cable length: 10 m
• Colour: Orange
• Impedance: 100 Ohm
• PoE support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Operating temperature: -20°C to 60°C
• Storage temperature: -20°C to 75°C
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

Engineered for high-performance networking in demanding environments, the Cat.7 rating with 600 MHz bandwidth supports 10 Gigabit Ethernet up to 100 metres, ensuring future-proof performance. The S/FTP shielding minimises crosstalk and EMI, while solid CCA conductors provide a cost-effective balance of conductivity and strength for fixed installations. The PVC jacket is flame-retardant and resistant to common installation stresses, making it a reliable choice for professional cabling projects.

Ideal use cases

• Structured cabling in office buildings and data centres
• Industrial networks with high electromagnetic interference
• Long-distance horizontal runs in walls, conduits, and cable trays
• PoE applications such as IP cameras, access points, and VoIP phones

Good to know

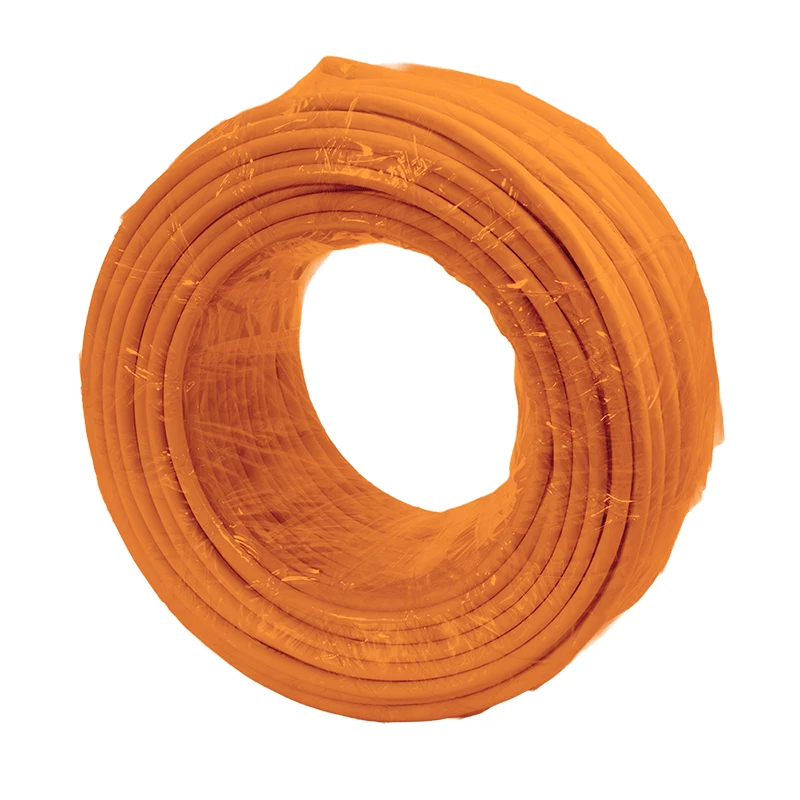

The cable is supplied coiled for easy handling during installation. It meets international standards for Cat.7 performance, ensuring compatibility with shielded connectors and patch panels. For best results, use with shielded RJ45 connectors and maintain proper grounding of the shield.
