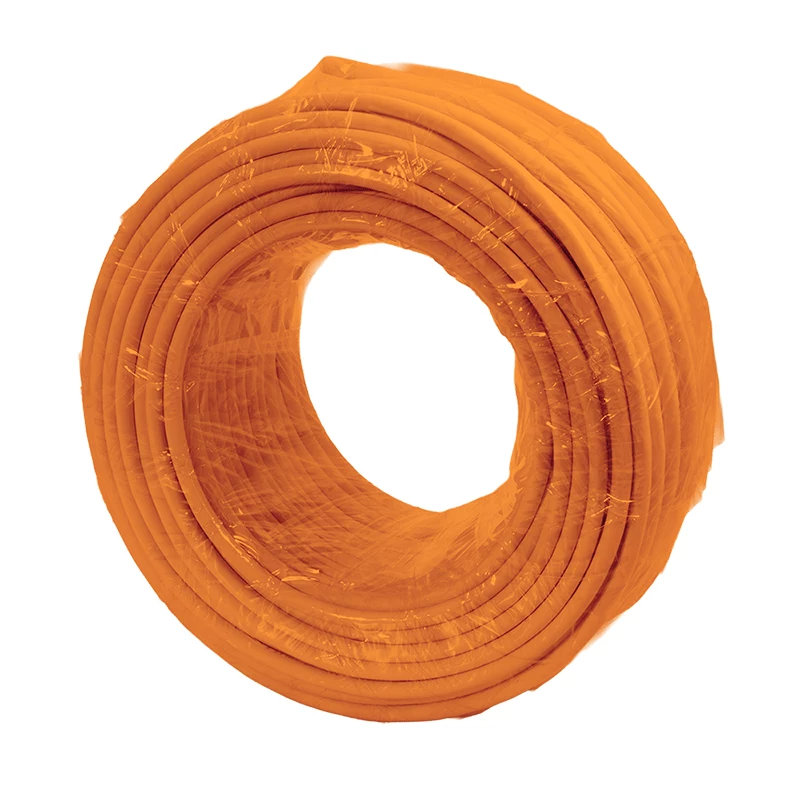

Cabo de instalação LogiLink Cat.7 600 MHz 23 AWG CCA, S/FTP 40 m, laranja

For high-density structured cabling where performance cannot be compromised, this LogiLink Cat.7 installation cable delivers 600 MHz bandwidth over a full 40-meter run. Unlike patch cables that flex and fatigue, its solid 23 AWG conductors and double-shielded S/FTP construction are built for permanent links inside walls, conduits, and cable trays. The orange LSZH jacket makes it instantly identifiable in crowded racks, while the halogen-free compound adds an extra layer of safety in commercial and public buildings.

Highlights

• Cat.7 performance with 600 MHz bandwidth for 10GBASE-T up to 100 m

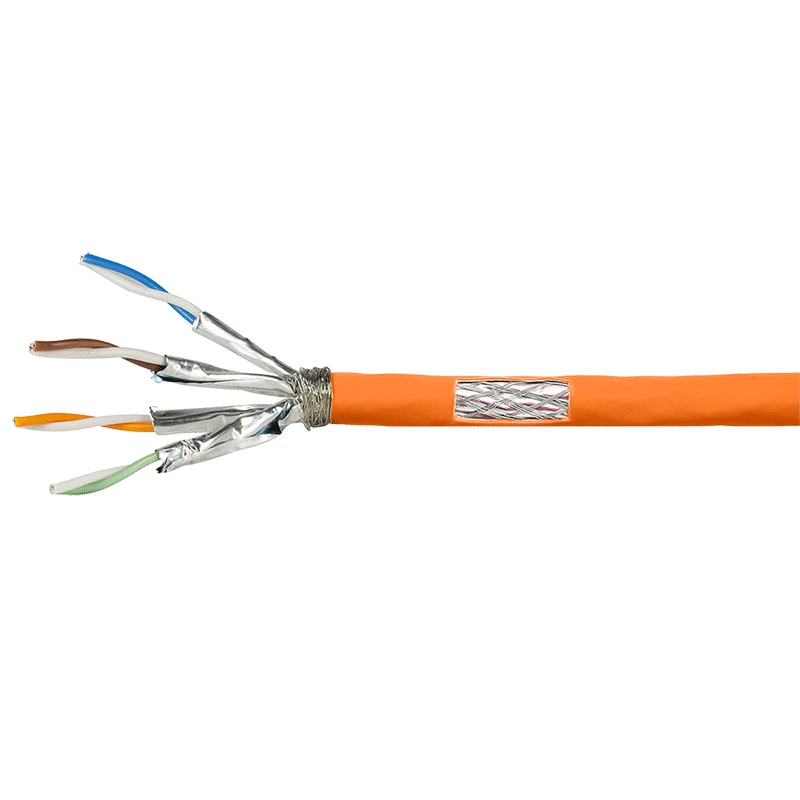

• S/FTP shielding: individual foil pairs (PiMF) plus overall tinned copper braid
• Solid 23 AWG copper-clad aluminum (CCA) conductors for stable permanent installation
• Low Smoke Zero Halogen (LSZH) jacket in signal orange for easy identification
• Supports PoE, PoE+, and PoE++ for power-hungry devices
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

In daily use

Pull this cable through conduits and patch panels without worrying about kinks or performance drops. The solid core holds its shape after termination, and the double shielding rejects alien crosstalk in bundles where dozens of cables run side by side. With a 7.5 mm outer diameter, it fits standard RJ45 connectors and keystone jacks, while the orange jacket stands out against grey and blue runs. Whether you're wiring a new office floor or upgrading a data center backbone, this cable provides headroom for future network speeds.

Full specifications

• Cable category: Cat.7
• Frequency bandwidth: 600 MHz

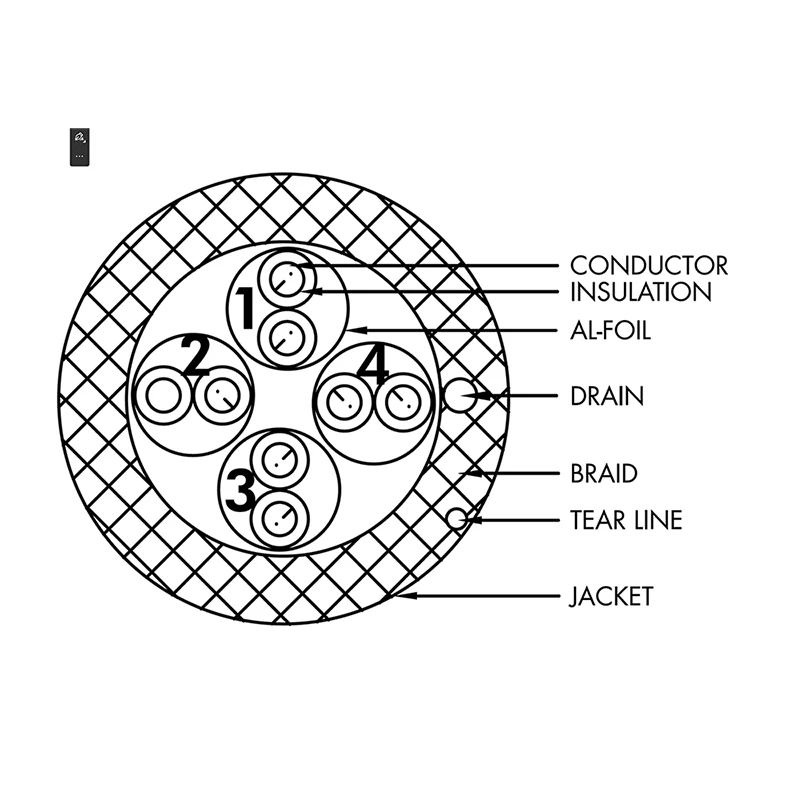

• Shielding type: S/FTP (PiMF + overall braid)
• Conductor material: Copper Clad Aluminum (CCA)
• Wire gauge: 23 AWG
• Conductor type: Solid
• Cable length: 40 m
• Cable colour: Orange
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Application: Structured cabling, installation
• Impedance: 100 Ohm
• Number of pairs: 4
• Pair shielding: Aluminium foil (PIMF)
• Overall shielding: Tinned copper braid
• Outer diameter: Approx. 7.5 mm
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE support: Yes (PoE, PoE+, PoE++)

Final note

Built for permanent installations, this cable ensures reliable high-speed connectivity with enhanced safety and easy identification.
