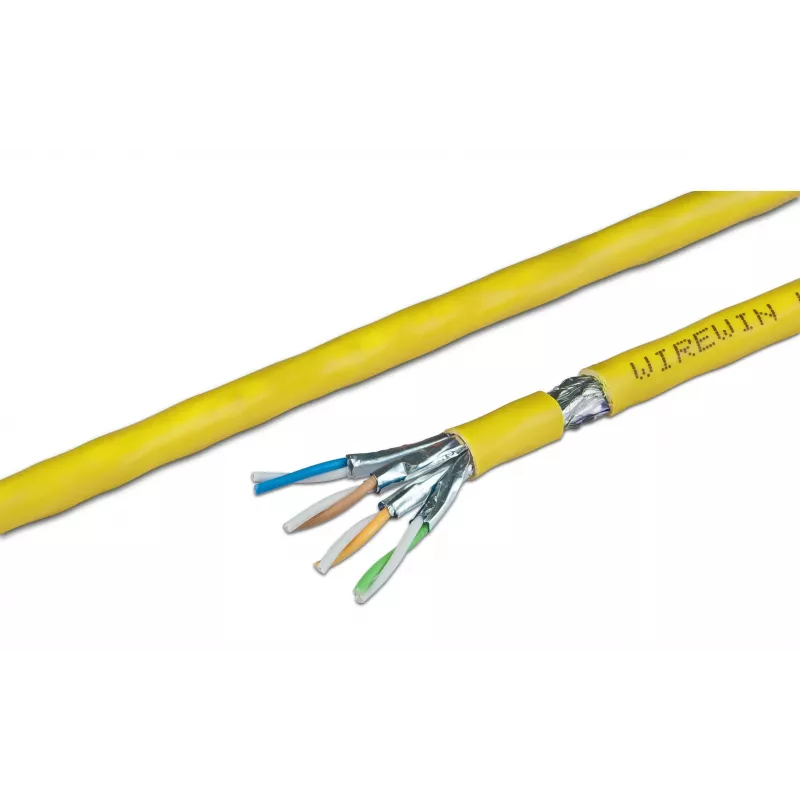

Cabo de instalação Wirewin Cat.7 A, S/FTP, 1200MHz, LSOH3, fio único, otimizado para PoE, cabo de rede 1000m (VKW SFTP K7A L3 1000SXQ)

The SLIM WIREWIN WirewinCat.7 Raw Cable A is a high-performance installation cable engineered for demanding network infrastructures. Unlike standard Cat.7 cables, this variant features S/FTP shielding with individually foiled pairs (PiMF) and an overall braid, delivering superior noise immunity and crosstalk reduction. With a bandwidth of 1200 MHz and support for 10 Gigabit Ethernet, it is built for high-speed data transmission in professional environments. The LSOH3 jacket ensures low smoke and zero halogen emissions, enhancing safety in case of fire. This 1000-meter reel of solid bare copper conductors (23 AWG) is PoE optimized, making it suitable for powering devices over the same cable. It complies with ISO/IEC 11801 and EN 50173 standards for structured cabling.

Highlights

• S/FTP shielding with PiMF for maximum interference protection
• 1200 MHz bandwidth supports 10GBASE-T up to 100 meters
• LSOH3 jacket: low smoke, zero halogen for improved fire safety
• Solid bare copper conductors, 23 AWG, PoE optimized
• 1000 m reel for large installations

In daily use

This raw cable is intended for permanent installation in walls, conduits, or cable trays. Its robust shielding and high bandwidth make it ideal for data centers, office buildings, and industrial networks where reliable high-speed connectivity and power delivery are required. The LSOH3 material reduces toxic fumes and smoke in case of fire, contributing to a safer environment.

Full specifications

• Category: Cat.7

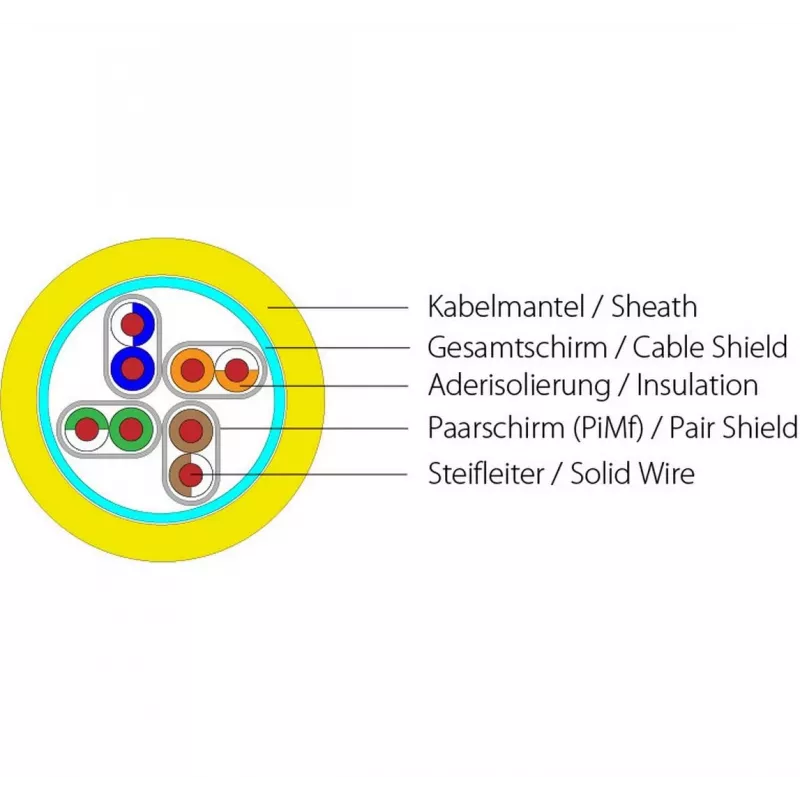

• Shielding: S/FTP (Screened/Foiled Twisted Pair, PiMF)
• Bandwidth: 1200 MHz

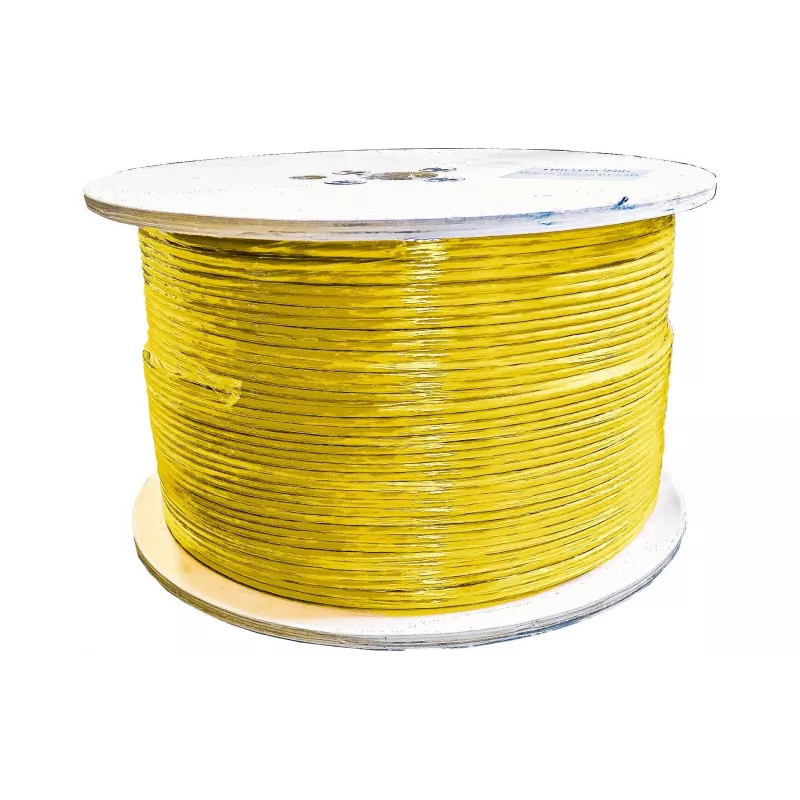

• Length: 1000 m
• Jacket material: LSOH3
• Conductor type: Solid (Single Wire)
• PoE support: PoE Optimized (IEEE 802.3af/at/bt compatible)
• Number of pairs: 4
• Conductor material: Bare Copper
• AWG: 23 AWG
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Cable type: Installation Cable / Raw Cable
• Standards compliance: ISO/IEC 11801, EN 50173
• Application environment: Indoor

Final note

SLIM WIREWIN delivers a reliable, high-performance cabling solution that meets stringent industry standards for speed, safety, and durability.
