Cabo de ligação ACT RG-58 preto 50 Ohm 1,50 m

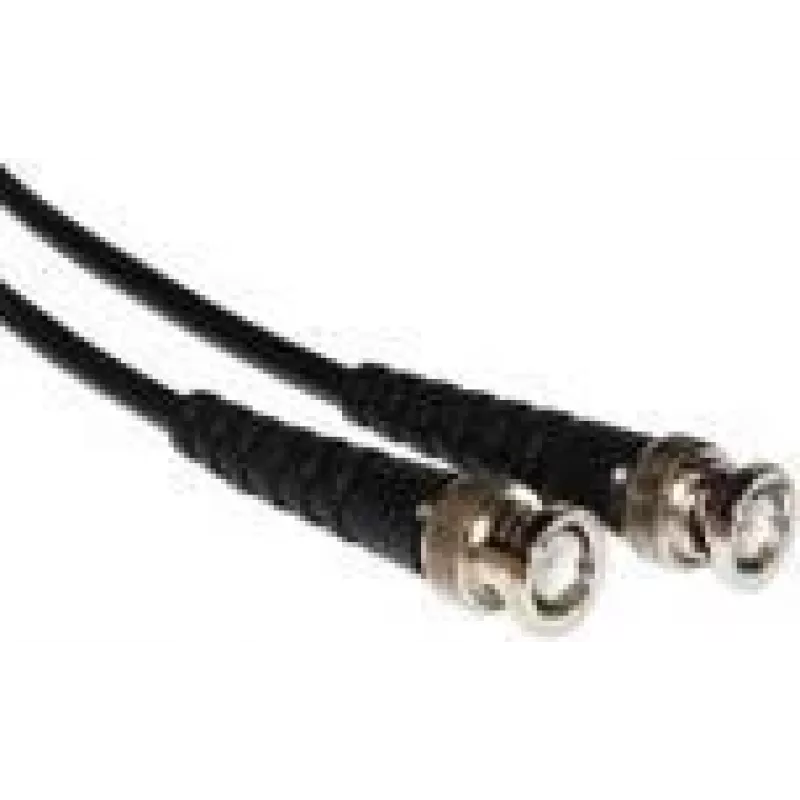

ACT RG-58 black 50 Ohm 1.50 m patch cable with BNC connectors on both ends. This 1.5 metre cable is constructed to provide a 50 Ohm impedance path for RF and video signal transmission, offering a compact, flexible connection solution for test equipment, analog video, and low-power RF links.

Advantages

The cable uses RG-58 coaxial construction to maintain consistent 50 Ohm impedance and minimize signal reflections. BNC connectors provide quick, bayonet-style coupling for reliable mating and easy installation. The 1.5 m length balances reach and manageable routing while the black jacket offers basic mechanical protection and concealment in installations.

Suitable for

• Laboratory test leads and RF bench connections
• Analog video signal links using BNC
• Low-power RF signal interconnections and patching
• Connecting measurement equipment and signal generators

Key specifications

• Impedance: 50 Ohm
• Cable type: RG-58 coaxial
• Connector type: BNC male — both ends
• Length: 1.50 m
• Jacket color: black

How to use

Align the BNC connector bayonet lugs with the mating socket, push the connector onto the socket and twist clockwise until it locks. Ensure connections are fully seated to maintain impedance continuity and minimize signal loss. Route the cable to avoid sharp bends and mechanical strain; secure with soft ties if necessary. For testing or temporary setups, use the cable between instruments or between instruments and devices with BNC ports.

Recommendations

Use this RG-58 BNC patch cable for low-power RF and analog video applications where a 50 Ohm transmission line is required. Avoid using it for high-power RF transmission or outdoor installations without additional weatherproofing. Inspect connectors periodically and replace the cable if the jacket or connectors show wear that could affect signal quality.
