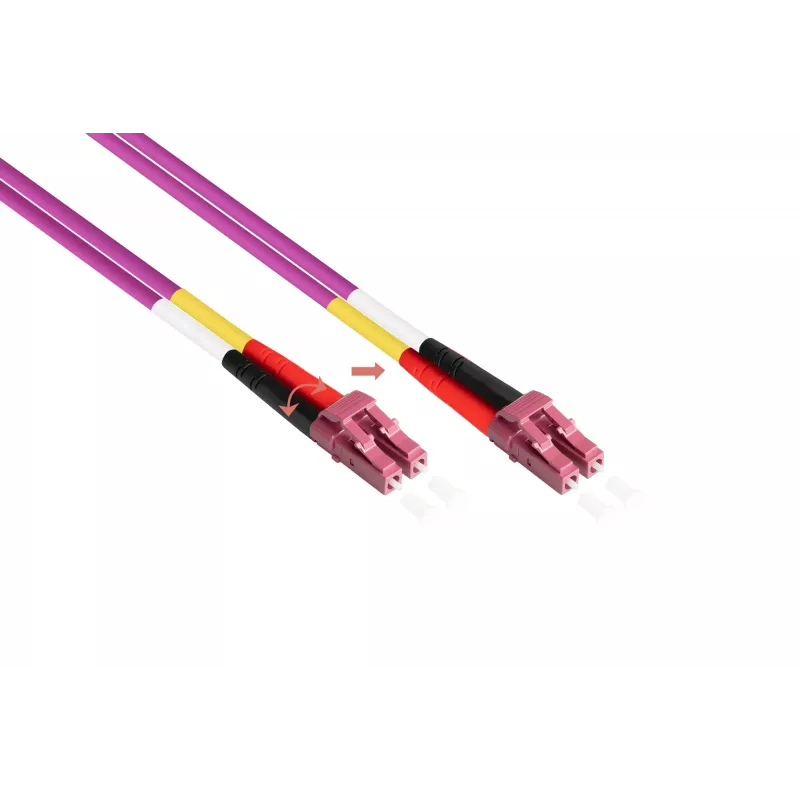

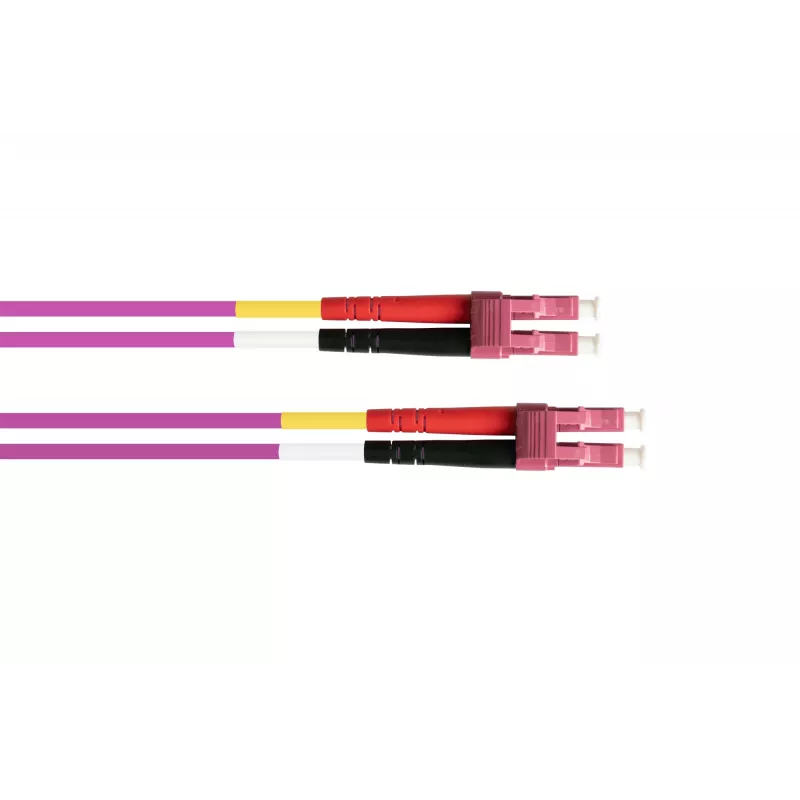

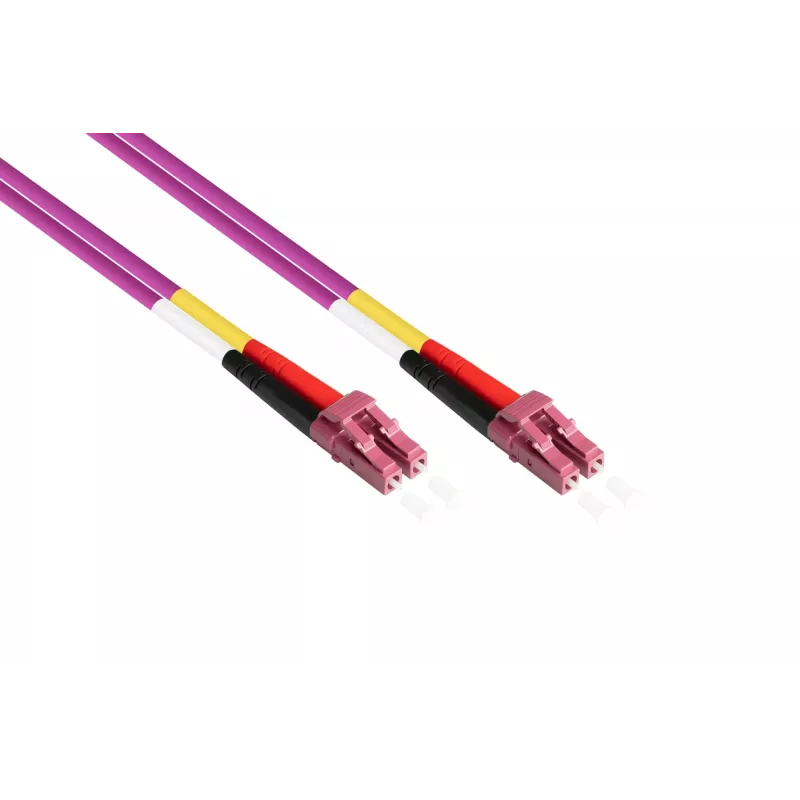

Cabo de ligação de fibra ótica multimodo Kabelmeister OM4 Duplex LC/LC 3m

The Kabelmeister OM4 Duplex LC/LC Multimode Fiber Optic Patch Cable is a high-performance solution for demanding network environments. Designed for data centers, LANs, and SANs, this 3-meter cable supports 10GbE, 40GbE, and 100GbE applications with low insertion loss and high return loss. The OM4 fiber class ensures optimal performance over longer distances, while the LSZH jacket provides safety in confined spaces.

Advantages

This cable offers reliable, high-speed data transmission with minimal signal loss. The duplex LC connectors ensure secure connections, and the aqua-colored jacket allows for easy identification. The LSZH material reduces toxic fumes in case of fire, making it ideal for indoor installations.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LANs) and Storage Area Networks (SANs)
• 10GbE, 40GbE, and 100GbE network infrastructures
• Applications where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode (MM)
• Fiber Class: OM4
• Connector Type A: LC
• Connector Type B: LC
• Connector Configuration: Duplex
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Cable Length: 3 m
• Jacket Color: Aqua
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation at 850nm: 2.3 dB/km
• Attenuation at 1300nm: 0.6 dB/km
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to 70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3, RoHS, CE

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper handling to maintain bend radius specifications. Ideal for high-speed network upgrades.
