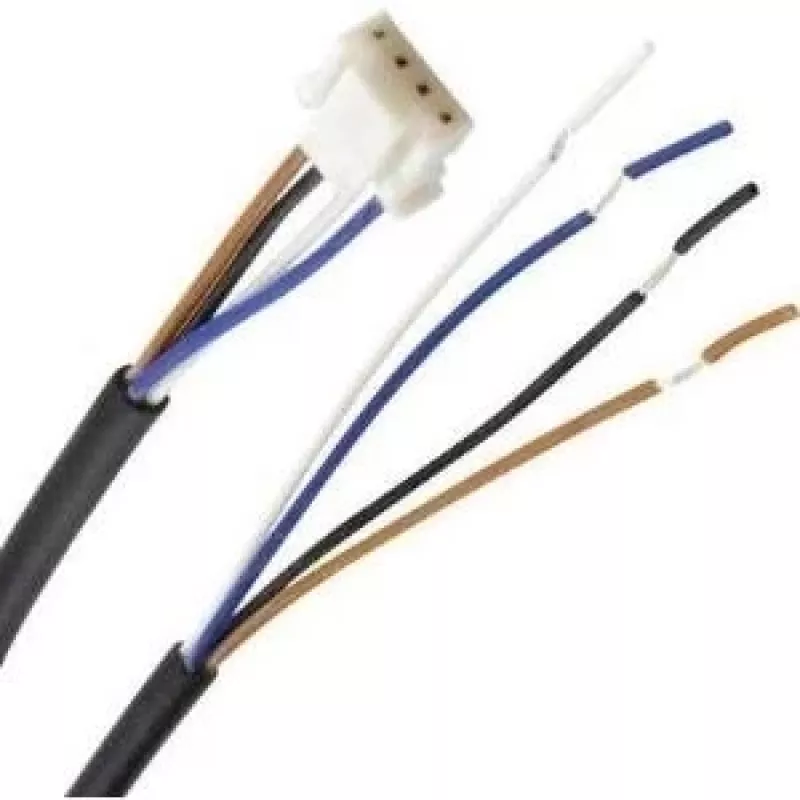

Cabo de ligação Panasonic CN14AC1 – cabo de conexão (série CN14)

The Panasonic CN14AC1 Anschlusskabel is a connection cable from the CN14 series designed to link compatible Panasonic devices and modules. It is intended as a wiring accessory for signal or power connections in electronic assemblies, control panels and device interconnects where a CN14-series cable interface is specified. The product provides a straightforward means to establish reliable electrical connections between modular components in industrial and commercial equipment.

Advantages

The cable offers a purpose-built interface that matches CN14-series connectors, promoting secure mating and consistent electrical contact. Its design supports straightforward installation and replacement in existing setups without the need for modification. Being a dedicated connection cable, it helps maintain system integrity by reducing loose connections and contact variability in multi-module assemblies.

Suitable for

• Connecting compatible Panasonic control modules and interface units
• Wiring in control panels and PLC racks that accept CN14-series connections
• Signal and low-voltage power interconnects within electronic assemblies
• Field replacement or maintenance of modular device connections

Key specifications

• Series compatibility: CN14-series connection interface
• Function: signal and low-voltage power connection between devices
• Application environment: industrial and commercial electronic assemblies and control panels
• Form factor: cable assembly designed for plug-and-play connection with matching connectors

How to use

Identify the matching CN14-series connector on both devices to be connected, align the cable connector with the mating port and insert until secure engagement is felt. Ensure power is removed from equipment before making or changing connections to avoid electrical hazards. Route the cable to prevent stress, excessive bending or contact with sharp edges, and secure with appropriate clamps or cable ties where required. After connection, verify signal continuity or power presence as needed before returning the system to normal operation.

Recommendations

Use this cable only with devices that specify compatibility with the CN14-series interface. Inspect connectors for damage or contamination before installation and replace the cable if any insulation or conductor damage is observed. Follow equipment manufacturer guidelines for routing, strain relief and environmental protection to ensure long-term reliability.
