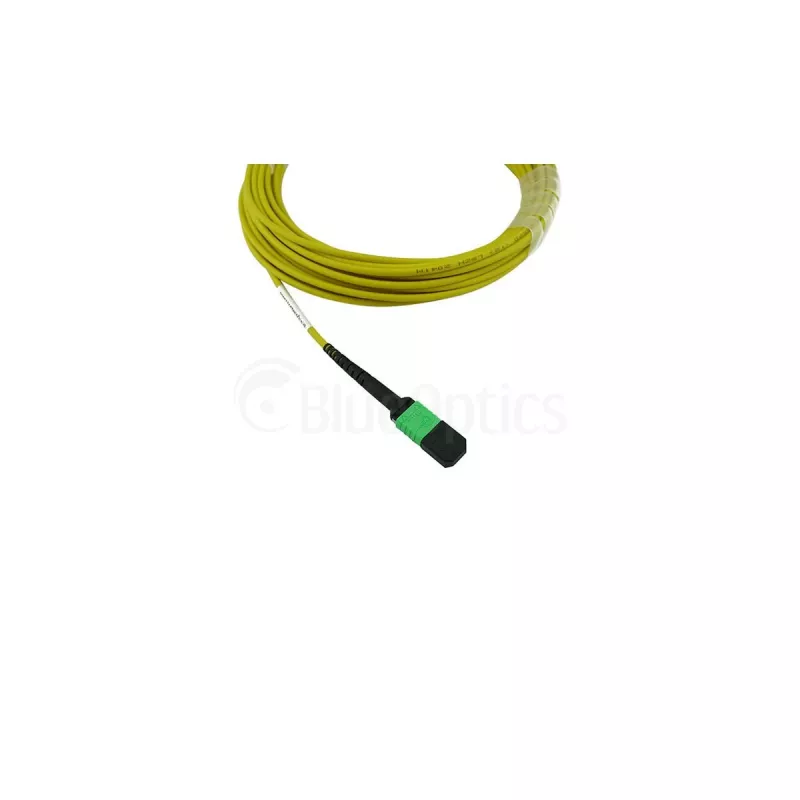

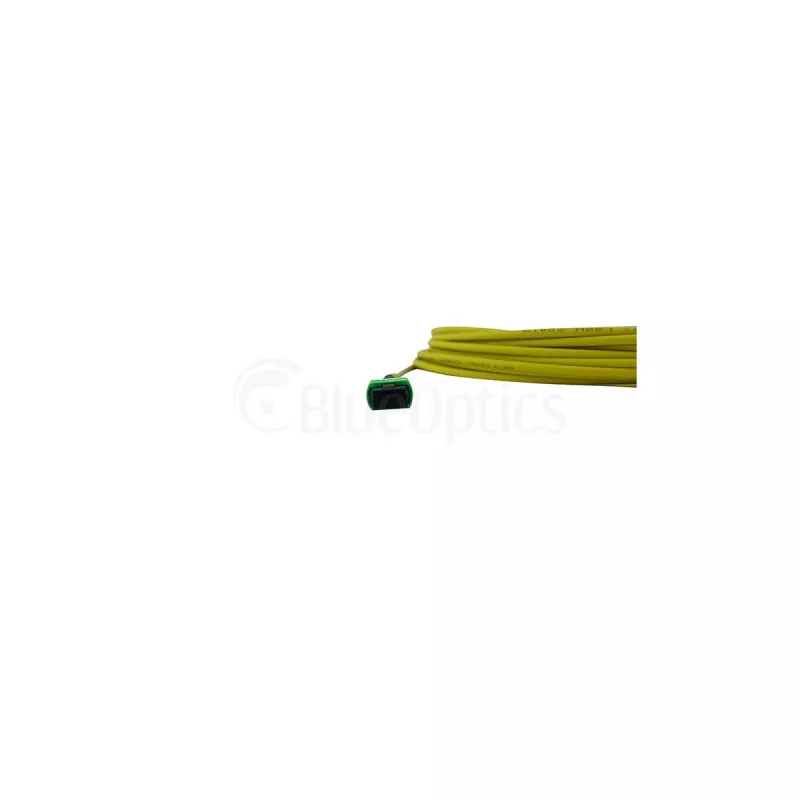

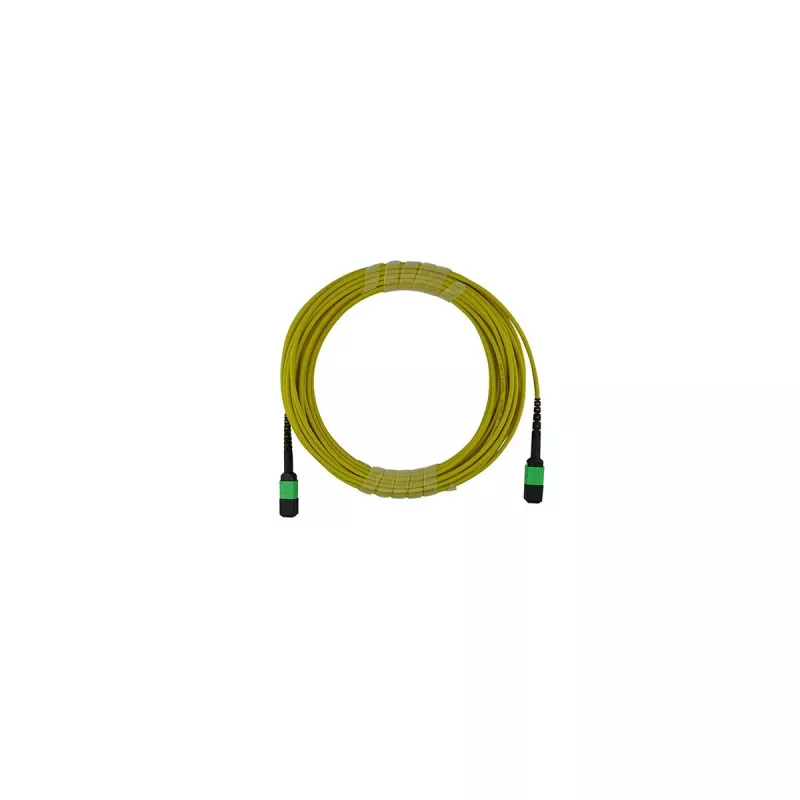

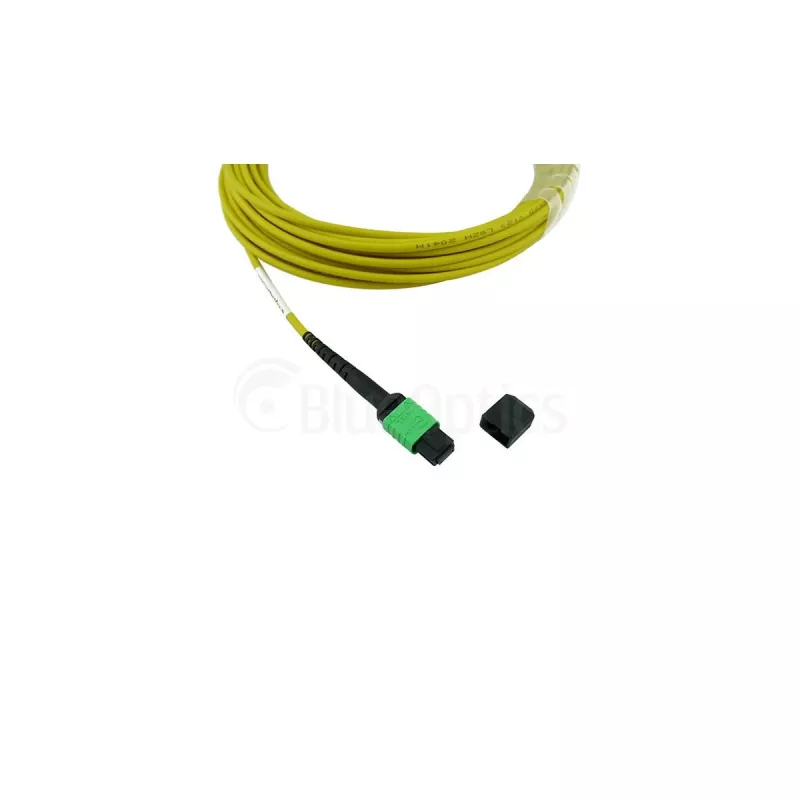

Cabo de Patch BlueOptics NVIDIA MFP7E30-N002 MPO-MPO Monomodo OS2, 2 metros

The BlueOptics NVIDIA MFP7E30-N002 MPO-MPO Single-mode OS2 Patch Cable is a high-performance fiber optic patch cable designed for use with NVIDIA MFP7E30-N002 transceivers. It features MPO female connectors on both ends, 12 fibers, and a length of 2 meters, making it ideal for high-speed data center interconnects, 100G/400G Ethernet, and InfiniBand applications.

Advantages

This cable offers low insertion loss (max 0.35 dB per connector) and high return loss (min 50 dB), ensuring reliable signal transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow jacket color allows for easy identification. Polarity Type B (cross-over) ensures proper fiber alignment for duplex communication.

Suitable for

• Data center interconnects
• 100G/400G Ethernet networks
• InfiniBand systems
• High-speed computing environments

Key specifications

• Connector Type A: MPO (Female)
• Connector Type B: MPO (Female)
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Cable Length: 2 Meter
• Number of Fibers: 12 Fibers
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 50 dB
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Diameter: 3.0 mm
• Operating Temperature: -10°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, ISO 9001

Recommendations

For optimal performance, pair this cable with compatible NVIDIA MFP7E30-N002 transceivers. Ensure proper handling and storage to maintain signal integrity.
