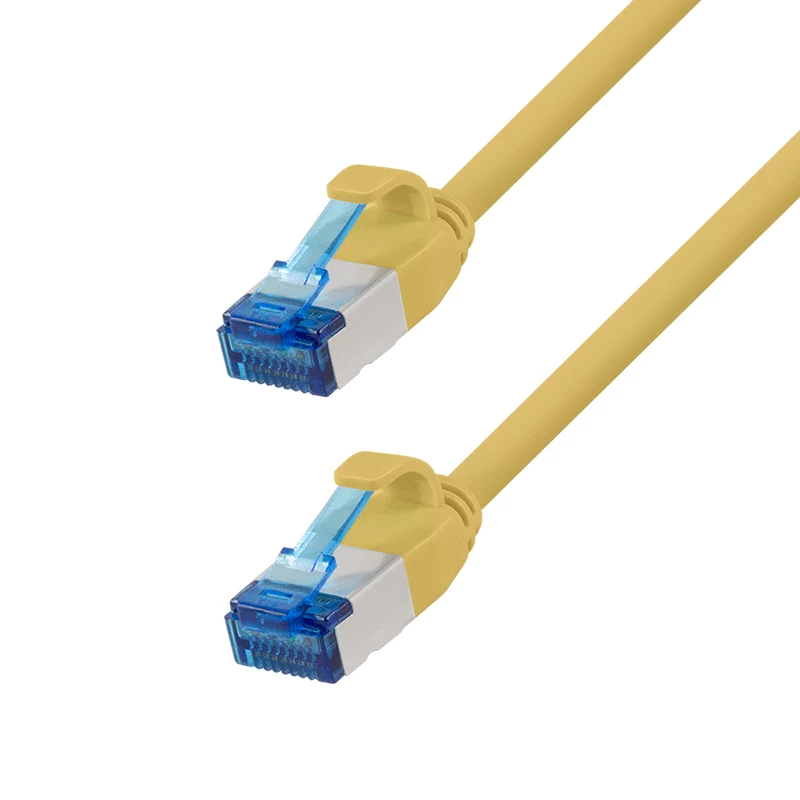

Cabo de patch Cat.6A Slim S/FTP LSZH LogiLink, amarelo, 10 m

In server rooms and high-density network racks, every millimeter of space counts. This yellow 10-meter Cat.6A Slim patch cable from LogiLink delivers 10 Gigabit Ethernet performance in a low-profile design that reduces clutter and improves airflow. The slim 3.8 mm diameter and snagless boots make it easy to route through cable managers and tight spaces, while the S/FTP shielding with PIMF ensures reliable, interference-free connections in demanding environments.

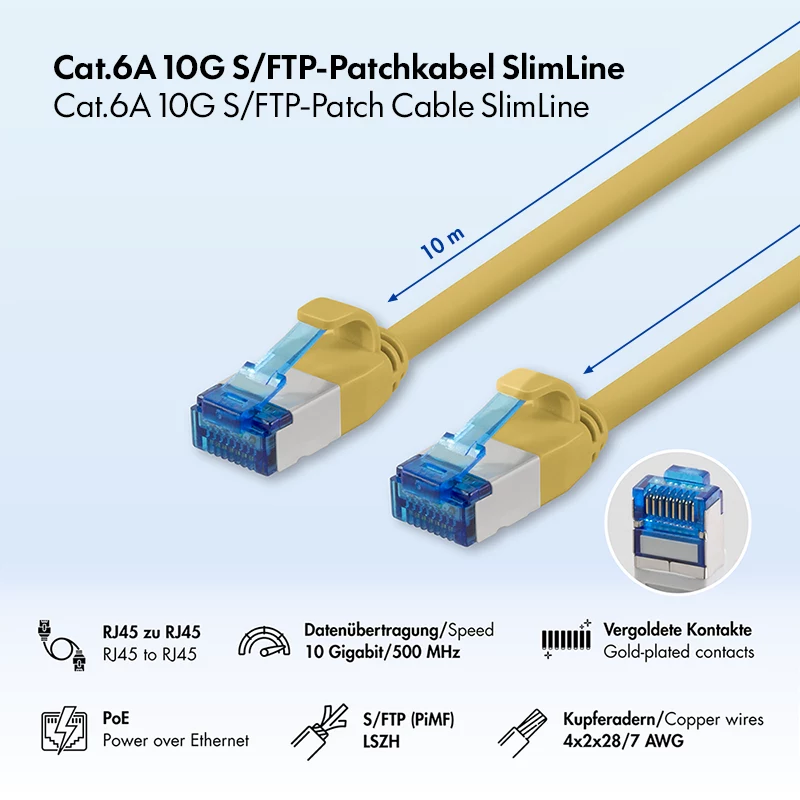

Key specifications

• Category: Cat.6A (500 MHz bandwidth)
• Shielding: S/FTP (braided overall + foil per pair, PIMF)
• Length: 10 meters
• Colour: Yellow
• Conductor: 28 AWG stranded copper
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ)
• Wiring: TIA/EIA 568B straight-through
• Data rate: Up to 10 Gbps (10GBASE-T)
• Diameter: Approx. 3.8 mm (slim design)
• Boot type: Snagless
• Compliance: RoHS, CE, ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

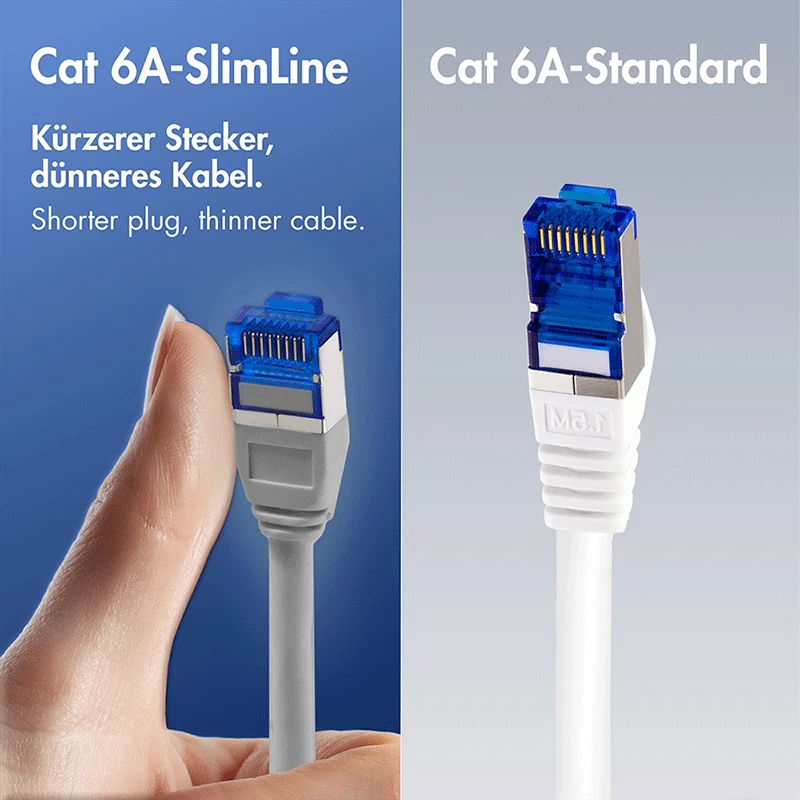

The slim profile saves up to 40% space compared to standard Cat.6A cables, making it ideal for high-density patching. The LSZH jacket emits low smoke and no halogen in case of fire, enhancing safety in enclosed spaces. Gold-plated contacts ensure corrosion resistance and consistent performance over time.

Ideal use cases

• Data centers and server rooms with high port density
• 10GBASE-T network upgrades requiring Cat.6A cabling
• Enterprise networks where space and airflow are critical
• Professional installations needing LSZH compliance

Good to know

The cable supports Power over Ethernet (PoE) up to PoE++ (IEEE 802.3bt) thanks to its 28 AWG stranded copper conductors, though for longer PoE runs a thicker gauge may be recommended. The yellow colour aids quick identification in complex setups. Each cable is individually tested for performance and comes with a lifetime warranty from LogiLink.
