Cabo de patch Cat.7 S/FTP KABELMEISTER, RJ45, bainha TPE, isento de halogéneos, azul, 5m

The KABELMEISTER PK7-TPE-050B stands apart from ordinary patch cables by pairing true Cat.7 raw cable performance with a highly flexible TPE jacket. This 5-metre blue cable is engineered for demanding 10 Gigabit Ethernet links, yet remains easy to route in tight spaces thanks to its halogen-free, LSZH outer sheath. Unlike stiff PVC alternatives, the TPE material offers superior flexibility and a safer, low-smoke profile in the event of fire.

Highlights

• Cat.7 (Class F) raw cable with S/FTP shielding and PIMF (pairs in metal foil) for maximum crosstalk immunity
• Supports up to 10 Gbps data transfer and 600 MHz bandwidth for high-speed networking
• Highly flexible TPE jacket, halogen-free and LSZH, ideal for data centres and office environments

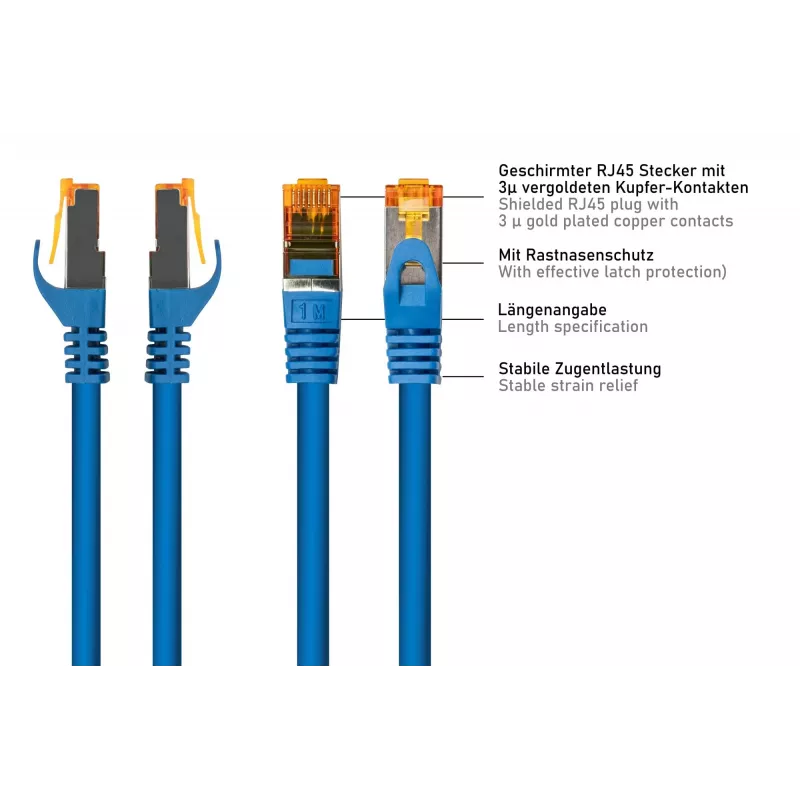

• Gold-plated RJ45 connectors (50µ) with snagless, molded boots for durability and secure connections
• 100% copper conductors, AWG 26/7 stranded, for reliable signal integrity

In daily use

This patch cable excels in high-density network installations where performance and manageability are critical. The S/FTP shielding, with each pair individually foil-wrapped and an overall braid, virtually eliminates alien crosstalk, making it suitable for 10GBASE-T applications. The TPE jacket remains flexible even at low temperatures, allowing clean cable management without kinking. The snagless boot protects the locking tab during frequent plugging and unplugging, while the gold-plated contacts resist corrosion and maintain low contact resistance over thousands of mating cycles.

Full specifications

• Cable type: Patch cable, Cat.7 raw cable
• Shielding: S/FTP (Screened Foiled Twisted Pair), PIMF
• Connector type: RJ45 male to RJ45 male
• Conductor material: 100% copper, AWG 26/7 stranded
• Jacket material: TPE (Thermoplastic Elastomer), halogen-free (LSZH)
• Colour: Blue
• Length: 5 m
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 600 MHz
• Wiring standard: TIA/EIA 568B
• Contact plating: Gold-plated (50µ)
• Boot type: Snagless, molded
• Outer diameter: Approx. 6.0 - 6.5 mm
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Final note

For network professionals who demand both high-speed performance and installation ease, the KABELMEISTER PK7-TPE-050B delivers a reliable, future-proof connection without compromising on flexibility or safety.
