Cabo de patch de fibra ótica ACT 5 metros LSZH Multimodo 50/125 OM3 Duplex LC SC

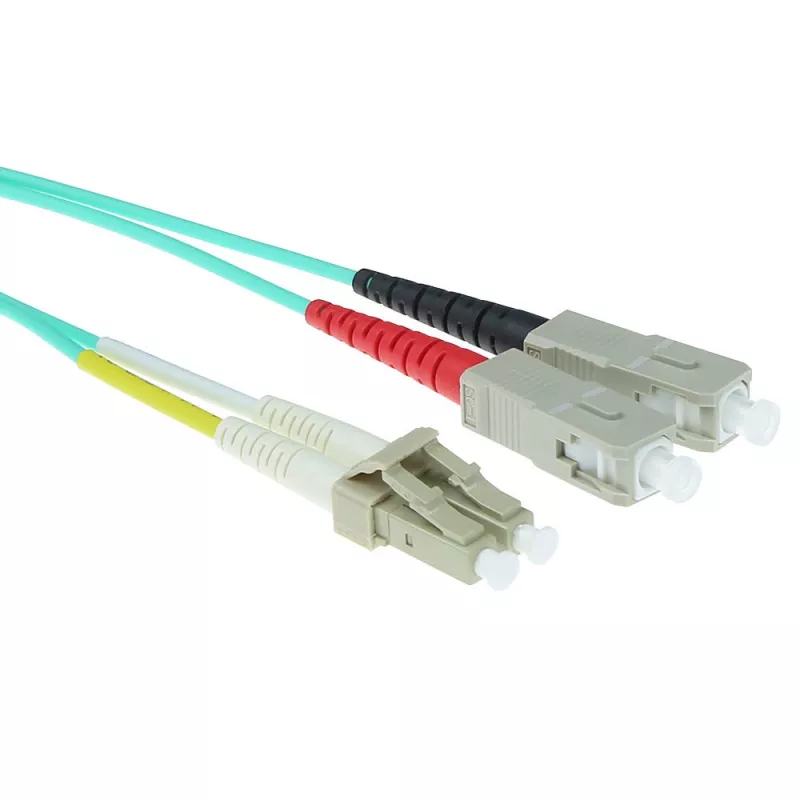

The ACT 5 meter LSZH Multimode 50/125 OM3 Duplex LC SC fiber patch cable provides a 5 m pre-terminated link for high-speed multimode networks. It combines duplex LC and SC connectors on multimode OM3 fiber with a 50/125 µm core/cladding profile, offering reliable optical performance for short- to medium-range connections in data centers, server rooms and enterprise network closets. The LSZH outer jacket reduces smoke and toxic gas emission in the event of a fire, making the cable suitable for indoor installations with enhanced safety requirements.

Advantages

The cable supports duplex full‑band communication with low insertion loss and controlled modal bandwidth typical for OM3 multimode fiber, enabling 10 Gigabit Ethernet and other multimode optical applications over the specified distance. The duplex LC to SC termination provides compatibility with a wide range of transceivers and patch panels. The LSZH jacket offers improved fire safety compared with standard PVC jackets while maintaining flexibility for routing and cable management.

Suitable for

• Interconnecting switches, servers and storage in data centers and server rooms
• Patch panel to transceiver or equipment ports in enterprise networks
• Short- to medium-distance multimode links such as horizontal and rack cabling
• Indoor installations where low smoke and halogen-free materials are required

Key specifications

• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Length: 5 meters (pre-terminated)
• Connector configuration: Duplex LC to SC
• Jacket material: Low Smoke Zero Halogen (LSZH)
• Polishing/finish: Factory-terminated polished connectors for reduced reflection and insertion loss
• Typical applications: 10 Gigabit Ethernet, multimode fiber networks, server and storage connectivity

How to use

Inspect connector endfaces and clean with a lint‑free wipe and appropriate fiber cleaning solution before installation. Route the cable along appropriate cable trays or management paths, avoiding sharp bends and excessive tensile load; adhere to the manufacturer's recommended minimum bend radius for multimode fiber. Plug the SC connector into the corresponding SC port and the LC duplex connector into the LC port or adapter in the patch panel or equipment, ensuring proper keying and alignment. After termination, verify optical link quality and continuity with an appropriate optical tester or compatible networking equipment.

Recommendations

Store and handle the cable in a clean environment and avoid contaminating connector endfaces. Use protective dust caps until connections are made and follow regular maintenance routines such as endface inspection and cleaning to maintain optical performance. For installations requiring longer reach or singlemode performance, select a cable with the appropriate fiber type and specifications.
