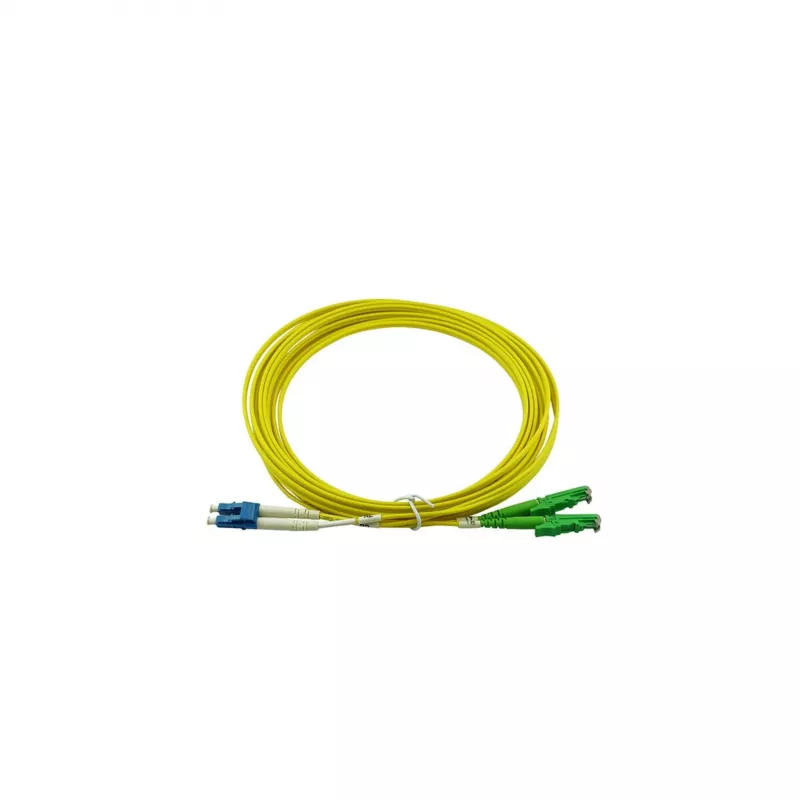

Cabo de patch de fibra ótica duplex BlueOptics, LC/UPC para E2000/APC, monomodo OS2, 10 m, LSZH, amarelo

The BlueOptics SFP3138BU10MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections in data centres, telecommunications, and enterprise networks. Featuring LC/UPC to E2000/APC connectors, this 10-metre cable ensures low insertion loss and high return loss for optimal signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the yellow jacket colour indicates single-mode fibre.

Advantages

This patch cable offers superior performance with insertion loss < 0.3 dB and return loss > 50 dB (UPC) / > 60 dB (APC). The duplex design allows simultaneous bidirectional transmission, and the E2000/APC connector with angled polish minimises back reflection. LSZH jacket reduces toxic fumes in case of fire.

Suitable for

• Fibre optic network installations requiring single-mode OS2 performance
• Connecting switches, routers, and media converters with LC and E2000 ports
• FTTx, CATV, and high-speed data transmission up to 10 Gbps and beyond
• Data centres, server rooms, and telecommunications infrastructure

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Connector A: LC/UPC (Blue Boot)
• Connector B: E2000/APC (Green Boot)
• Cable Length: 10 m
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: > 50 dB (UPC), > 60 dB (APC)
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation: ≤ 0.35 dB/km @ 1310 nm, ≤ 0.25 dB/km @ 1550 nm
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60794-2

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC and E2000 interfaces. Store in a clean, dry environment.
