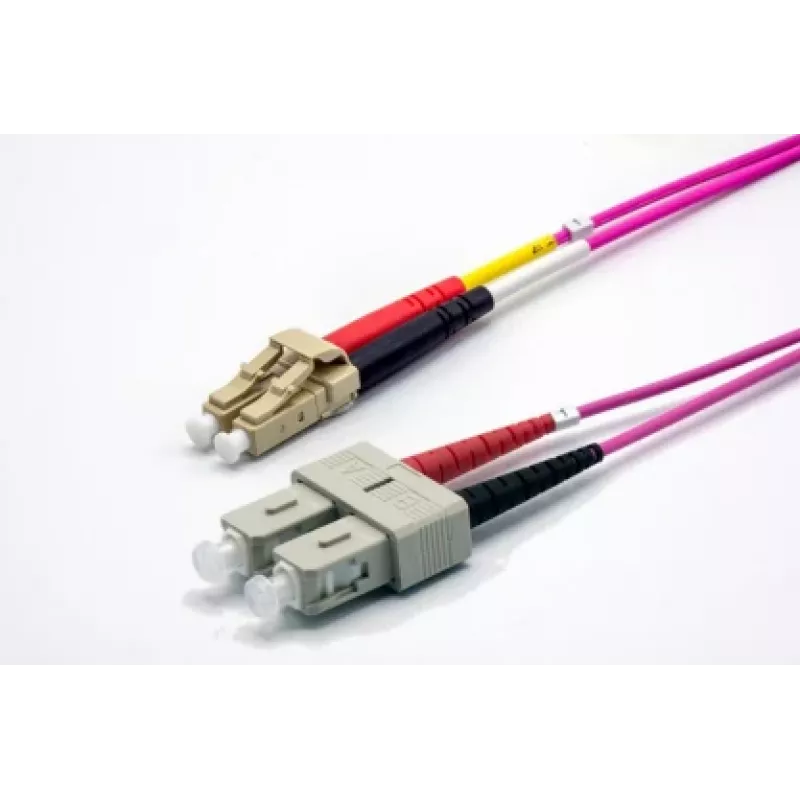

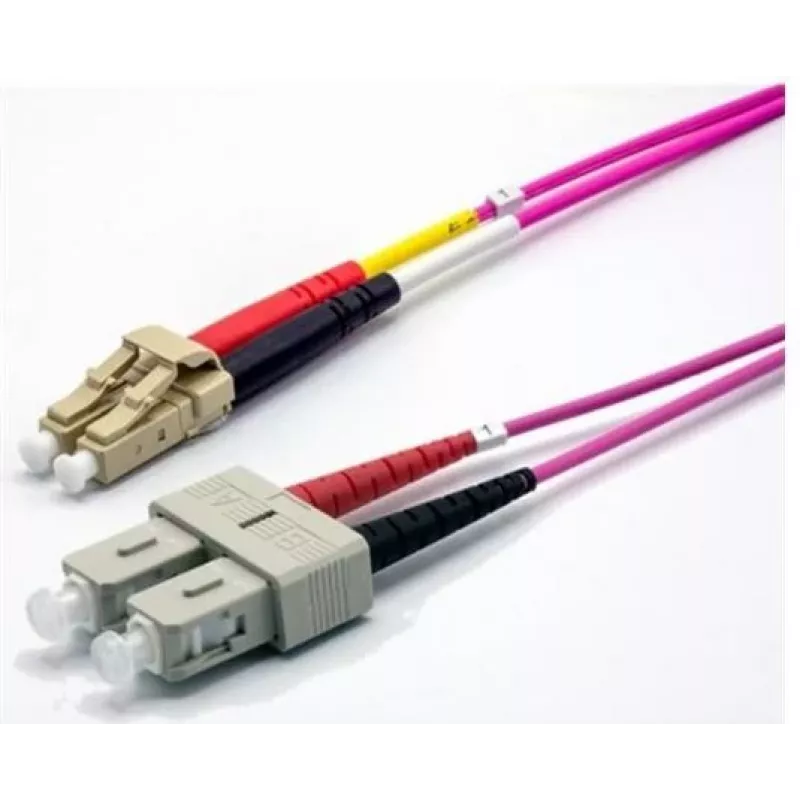

Cabo de patch de fibra ótica duplex OM4 EKIVALAN LC/SC, 50/125 µm, violeta urze, 5 m COZOM4DCLC2SE0050A

Fibre optic patch cable with OM4 multimode fibre, duplex construction, and LC to SC connectors. Supports 10GbE, 40GbE, and 100GbE applications over 5 metres.

Advantages

Low insertion loss below 0.3 dB and return loss above 30 dB ensure reliable signal integrity. The LSZH jacket reduces smoke and toxic emissions in case of fire.

Suitable for

• Data centres and server rooms
• High-speed backbone connections
• Telecommunication rooms

Key specifications

• Fibre type: OM4 multimode
• Core/cladding diameter: 50/125 µm
• Connectors: LC to SC
• Length: 5 m
• Jacket colour: Heather Violet
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB

Recommendations

For optimal performance, ensure connectors are clean before installation and use dust caps when not in use.
