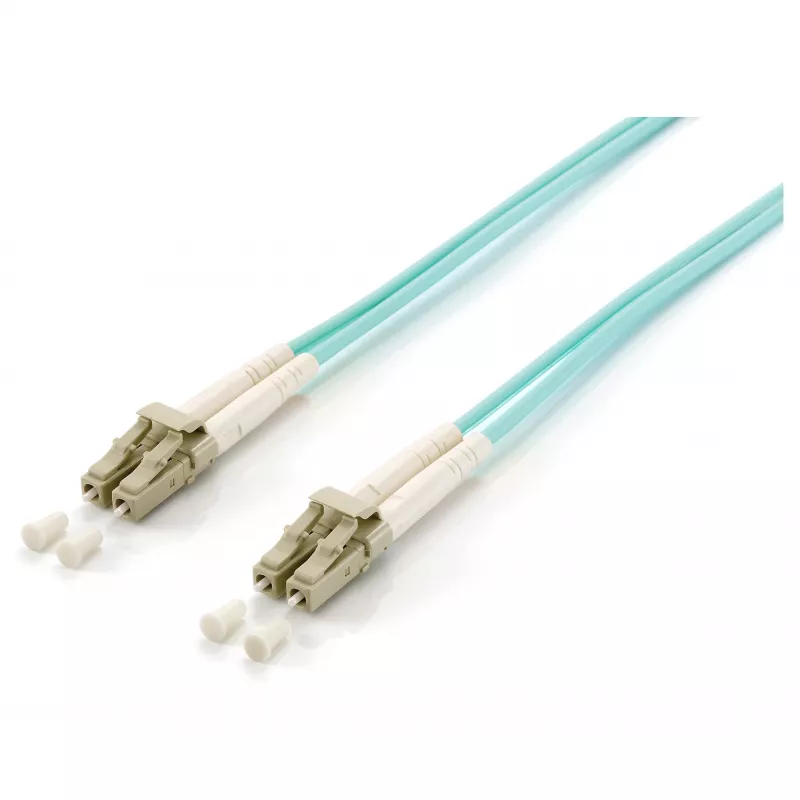

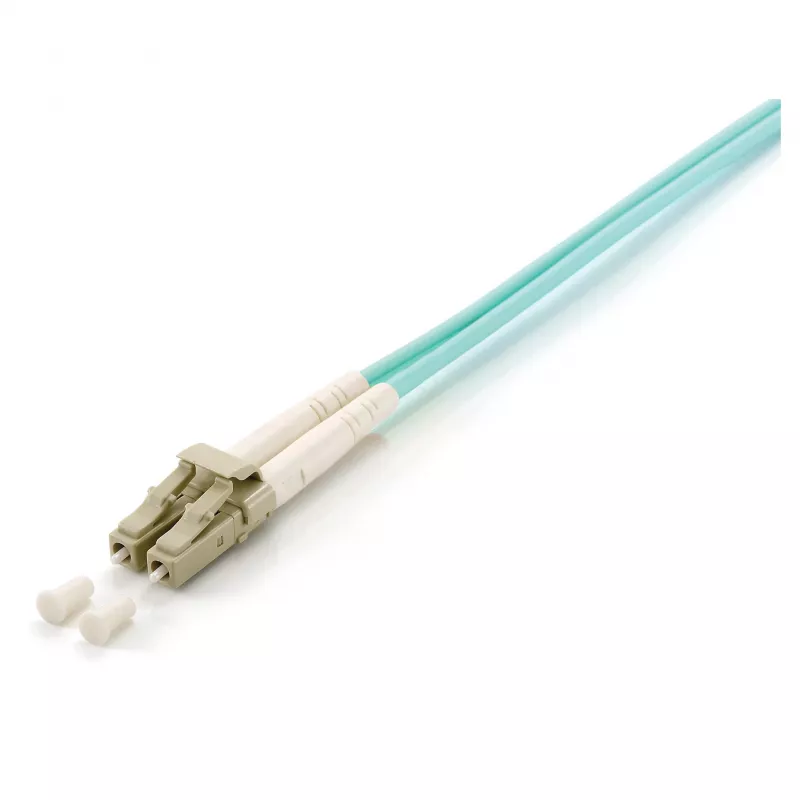

Cabo de patch de fibra ótica Equip LC para LC 1,5m multimodo duplex OM3 turquesa

The Equip Fiber Optic Patch Cable LC to LC 1.5m Multimode Duplex OM3 Turquoise is a high-performance patch cable designed for reliable data transmission in data centers, LANs, and SANs. With LC to LC connectors and OM3 multimode fiber, it supports high-speed networks up to 10 Gbps and beyond.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces. Its duplex design with two fibers enables bidirectional communication.

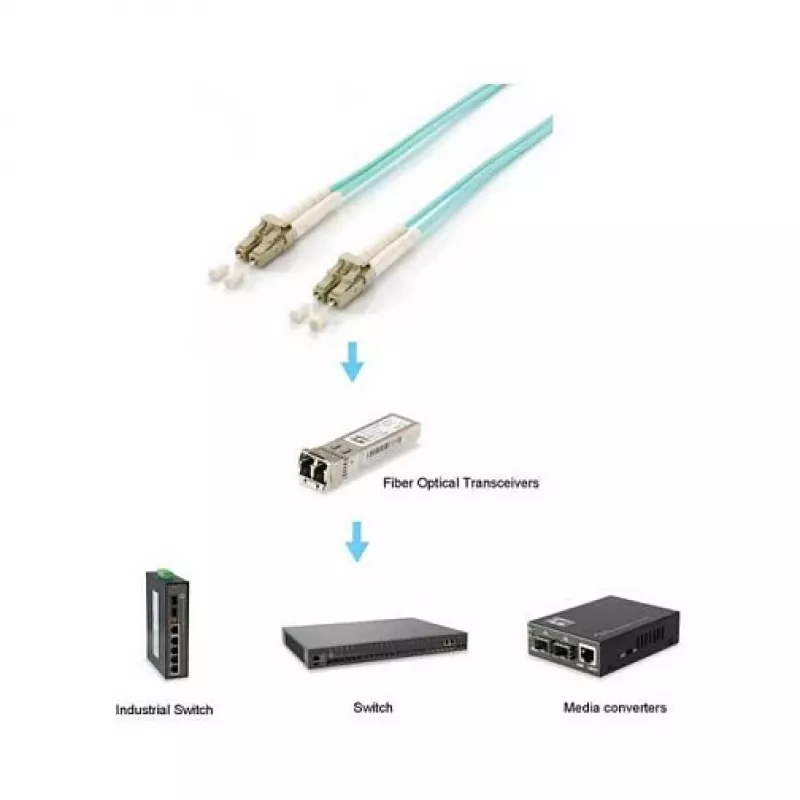

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed fiber optic connections

Key specifications

• Connector type: LC to LC
• Fiber type: Multimode OM3
• Cable length: 1.5 m
• Number of fibers: 2 (Duplex)
• Core/Cladding diameter: 50/125 µm
• Jacket material: LSZH
• Jacket color: Turquoise
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Bandwidth: 1500 MHz-km at 850 nm, 500 MHz-km at 1300 nm
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC-A, RoHS

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cable management to maintain bend radius.
