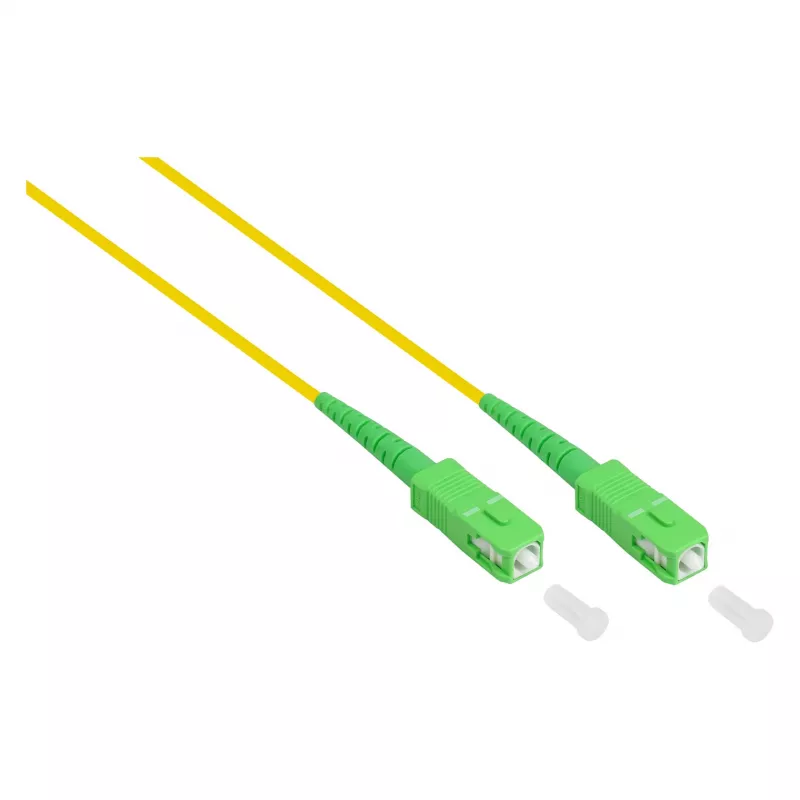

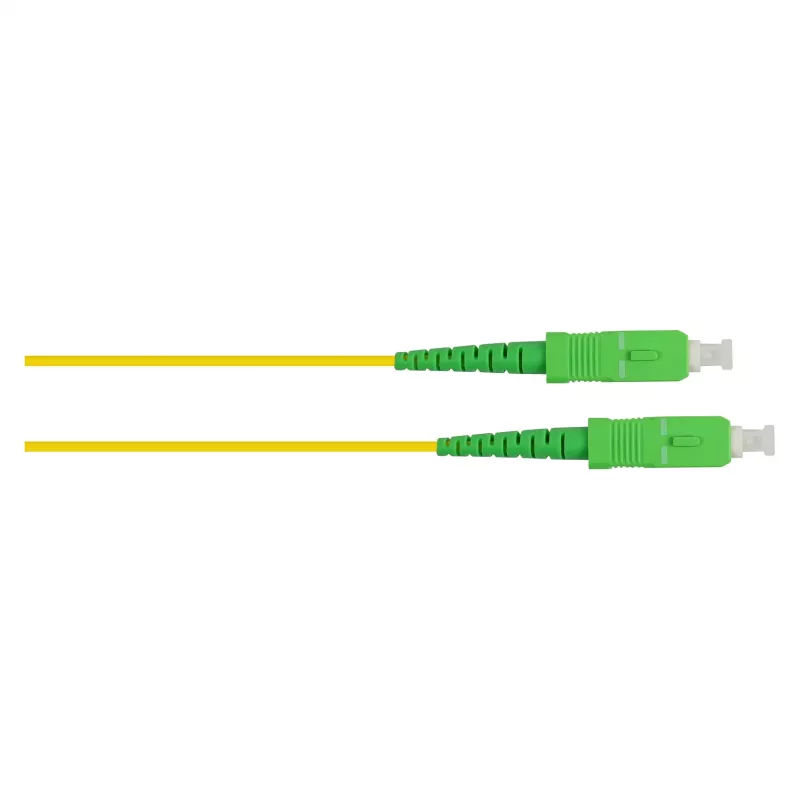

Cabo de patch de fibra ótica GoodConnections Good Connections OS2 monomodo simplex LC/SC 9/125µm 30m amarelo

The Good Connections LW-S930LASA is a high-quality OS2 single-mode fiber optic patch cable designed for reliable, high-speed data transmission in demanding network environments. With a simplex construction and LC to SC connectors, this 30-meter cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, and LAN applications.

Advantages

This fiber optic patch cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥50 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The yellow color indicates single-mode fiber, simplifying identification in dense cabling setups.

Suitable for

• Data centers requiring high-bandwidth connections
• Telecommunications infrastructure
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments
• Connecting switches, routers, and patch panels

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Class: OS2
• Connector Type A: LC
• Connector Type B: SC
• Cable Construction: Simplex (1 Fiber Strand)
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Polish: UPC (Ultra Physical Contact)
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB
• Cable Color: Yellow
• Operating Temperature: -20°C to +70°C
• Attenuation (1310nm): ≤ 0.35 dB/km
• Attenuation (1550nm): ≤ 0.25 dB/km
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Store in a clean, dry environment when not in use.
